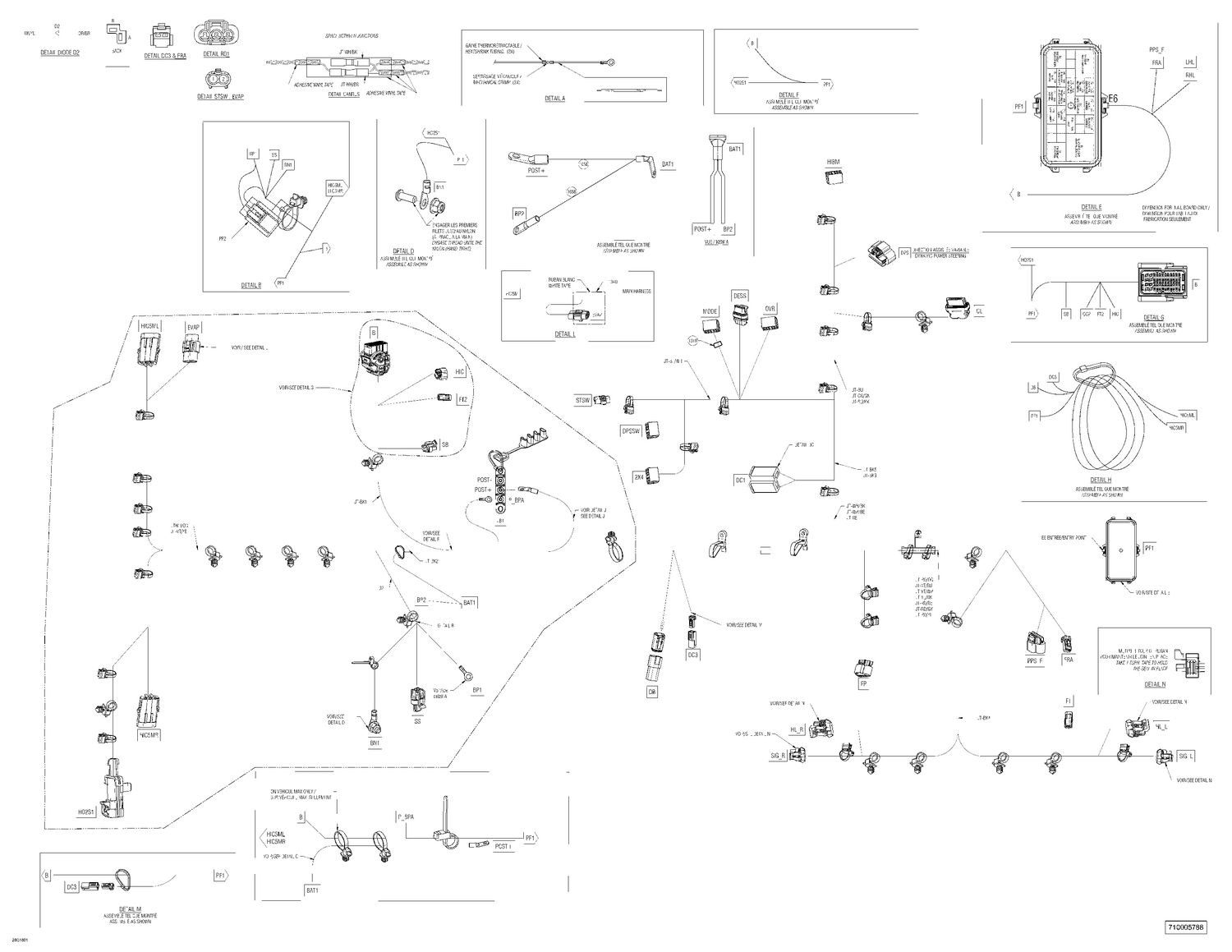

10- Main Harness - 710005788 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#300
Harness-Ass'y
710005788
|
$809.99 | ||
|
Available to order. Add to View Price |
|||
|
#2X4
Housing
710002000
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#2X4
Terminal
710003047
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#2X4
Female Terminal
710005491
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#B
Cover, 48 positions
710001591
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#B
Molex Housing, 48 Circuits
710001967
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#B
Plug
710001592
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#B
Plug
710001593
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#B
Female Terminal
710001589
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#B
Terminal
710001728
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#B
Female Terminal
710001727
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#BAT1
Terminal 90°
710003266
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#BAT1
PROTECTOR CAP - Call your local BRP dealership
710005488
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#BN1
Elastic Flange Nut M6 X 1.0
233261416
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#BN1
Terminal
710000913
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#BN1
Stainless, Socket Screw, M6X16 S.Grip
205461660
Superseded by 250000437
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#BP1
Terminal
710000913
|
$5.69 | ||
|
Unavailable |
|||
|
#BP2
Protector Cap
710000495
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Female Housing, 24 Circuits
515175801
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Retainer Block
515175802
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Plug
515175812
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Female Housing
710000399
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Wire Seal
515175803
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#CL
Female Terminal
710001131
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#D2
Diode
409012700
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Female Housing 6 Circuits
710002706
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Lock
710002705
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Female Terminal
710005439
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Female Terminal
710005438
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#DB
FEMALE TERMINAL - Call your local BRP dealership
278001661
|
$9.49 | ||
|
Unavailable |
|||
|
#DB_CAP
Housing
710003006
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#DC1
Housing
710005373
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#DC1
Terminal
710005077
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3
Female Terminal
515175231
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3_CAP
Male Housing, 2 Circuits
710000667
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#DESS
Housing
710001161
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#DESS
Lock
710001162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#DESS
Wire Seal
710001163
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#DESS
Female Terminal
710001164
|
$9.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#DPS
Female Housing
710004989
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Lock
710005098
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Lock
710001222
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Plug
710002075
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Wire Seal
278002186
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Seal
710003153
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Female Terminal
278002187
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Terminal
710001873
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#DPSSW
Housing
710002000
|
$7.90 | ||
|
Unavailable |
|||
|
#DPSSW
Female Terminal
710005491
|
$2.09 | ||
|
Unavailable |
|||
|
#EVAP
Wire Seal
710000402
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#EVAP
Female Terminal
409012100
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#FL-1
Fuse Wire 31-40AMP
715002537
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#FL-2
Fuse Wire 31-40AMP
715002537
|
$21.99 | ||
|
Unavailable |
|||
|
#FP
Male Housing, 4 Circuits
278002185
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Lock
710001222
|
$2.19 | ||
|
Unavailable |
|||
|
#FP
Wire Seal
278002186
|
$5.59 | ||
|
Unavailable |
|||
|
#FP
Seal
710003153
|
$0.99 | ||
|
Unavailable |
|||
|
#FP
Female Terminal
278002187
|
$6.49 | ||
|
Unavailable |
|||
|
#FP
Terminal
710001873
|
$2.19 | ||
|
Unavailable |
|||
|
#FRA
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Unavailable |
|||
|
#FRA
Female Terminal
710003896
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#FT
Clip
710000992
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#FT
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FT
Wire Seal
278000218
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FT
Male Terminal
409004300
|
$5.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FT2
Clip Bracket Connector (edge)
409210100
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#FT2
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
Unavailable |
|||
|
#FT2
Wire Seal
278000218
|
$4.49 | ||
|
Unavailable |
|||
|
#FT2
Male Terminal
409004300
|
$5.69 | ||
|
Unavailable |
|||
|
#HIBM
Housing
710002000
|
$7.90 | ||
|
Unavailable |
|||
|
#HIBM
Terminal
710003047
|
$3.49 | ||
|
Unavailable |
|||
|
#HIC
Housing
710001928
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Lock
710001222
|
$2.19 | ||
|
Unavailable |
|||
|
#HIC
Cap
710001225
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Seal
710001233
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Seal Wire
710001332
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Terminal
710001229
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Terminal
710001228
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC5ML
Clip
710001343
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC5ML
Female Terminal Housing, 3 Circuits
278000281
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#HIC5ML
Wire Seal
278001065
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#HIC5ML
Male Terminal
278000222
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC5MR
Clip
710001343
|
$9.29 | ||
|
Unavailable |
|||
|
#HIC5MR
Female Terminal Housing, 3 Circuits
278000281
|
$9.99 | ||
|
Unavailable |
|||
|
#HIC5MR
Wire Seal
278001065
|
$7.89 | ||
|
Unavailable |
|||
|
#HIC5MR
Male Terminal
278000222
|
$3.29 | ||
|
Unavailable |
|||
|
#HL_L
Housing
710000645
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#HL_L
Seal
278001482
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HL_L
Female Terminal
710001134
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#HL_R
Housing
710000645
|
$15.36 | ||
|
Unavailable |
|||
|
#HL_R
Seal
278001482
|
$3.29 | ||
|
Unavailable |
|||
|
#HL_R
Female Terminal
710001134
|
$7.89 | ||
|
Unavailable |
|||
|
#HO2S1
Clip
710001343
|
$9.29 | ||
|
Unavailable |
|||
|
#HO2S1
Housing
710002466
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1
Lock
710002469
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1
Seal
278001482
|
$3.29 | ||
|
Unavailable |
|||
|
#HO2S1
Gold Terminal
710002597
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#JB-1
Cover
710004826
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#JB-1
3-Positions Pole
710004825
|
$19.09 | ||
|
Available to order. Add to View Price |
|||
|
#JB-1
Brass Elastic Stop Nut M6
232561200
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#MODE
Housing
710002000
|
$7.90 | ||
|
Unavailable |
|||
|
#MODE
Terminal
710003047
|
$3.49 | ||
|
Unavailable |
|||
|
#MODE
Female Terminal
710005491
|
$2.09 | ||
|
Unavailable |
|||
|
#OVR
Housing
710002000
|
$7.90 | ||
|
Unavailable |
|||
|
#OVR
Terminal
710003047
|
$3.49 | ||
|
Unavailable |
|||
|
#OVR
Female Terminal
710005491
|
$2.09 | ||
|
Unavailable |
|||
|
#P_BPA
Open Barrel
278000992
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Fuse Cover
710001026
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Switch Housing
710005972
|
|||
|
Unavailable |
|||
|
#PF1
Foam
278002172
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Fuse Box Base Ass´y
415129856
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Cap
710000840
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Wire Seal
278000999
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#PF1
Seal
415128501
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
TERMINAL - Call your local BRP dealership
710005492
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Female Terminal
710000836
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Female Terminal
710000837
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-F11
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-F12
Little Fuse, 20 Amperes
710000746
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-F14
Little Fuse, 30 Amperes
710000747
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-F16
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F17
Little Fuse, 25 Ampere
278002389
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#PF1-F18
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F4
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F5
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F6
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F7
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F8
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1-F9
Fuse, 25 Amps
710002590
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#PF2
Fuse Holder Cap
278001326
|
$7.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#PF2
Fuse Holder
278001325
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF2
Female Terminal
710000113
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#PF2-F2
Fuse
710001613
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PPS_F
Housing
710001232
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#PPS_F
Lock
710001222
|
$2.19 | ||
|
Unavailable |
|||
|
#PPS_F
Seal
710001233
|
$3.29 | ||
|
Unavailable |
|||
|
#PPS_F
Terminal
710001229
|
$3.29 | ||
|
Unavailable |
|||
|
#R1
Relay, 30 AMP
515176774
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#R10
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#R2
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#R3
Relay, 50 AMP
515176775
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#R8
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#SB
Housing
710002177
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#SB
Lock
710002043
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#SB
Seal
278001482
|
$3.29 | ||
|
Unavailable |
|||
|
#SB
Female Terminal
710001134
|
$7.89 | ||
|
Unavailable |
|||
|
#SIG_L
Female Housing
710005321
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#SIG_L
Seal
278001482
|
$3.29 | ||
|
Unavailable |
|||
|
#SIG_L
Female Terminal
710001134
|
$7.89 | ||
|
Unavailable |
|||
|
#SIG_R
Female Housing
710005321
|
$4.55 | ||
|
Unavailable |
|||
|
#SIG_R
Seal
278001482
|
$3.29 | ||
|
Unavailable |
|||
|
#SIG_R
Female Terminal
710001134
|
$7.89 | ||
|
Unavailable |
|||
|
#SPARE1
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#SPARE2
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#SPARE3
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#SPARE4
Little Fuse, 20 Amperes
710000746
|
$8.69 | ||
|
Unavailable |
|||
|
#SPARE5
Little Fuse, 20 Amperes
710000746
|
$8.69 | ||
|
Unavailable |
|||
|
#SPARE6
Little Fuse, 30 Amperes
710000747
|
$8.69 | ||
|
Unavailable |
|||
|
#SS
Female Housing, 2 Circuits
515177192
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#SS
Wire Seal
710001163
|
$7.89 | ||
|
Unavailable |
|||
|
#SS
Female Terminal
710001164
|
$9.09 | ||
|
Unavailable |
|||
|
#STSW
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#STSW
Female Terminal
409012100
|
$4.69 | ||
|
Unavailable |
|||
