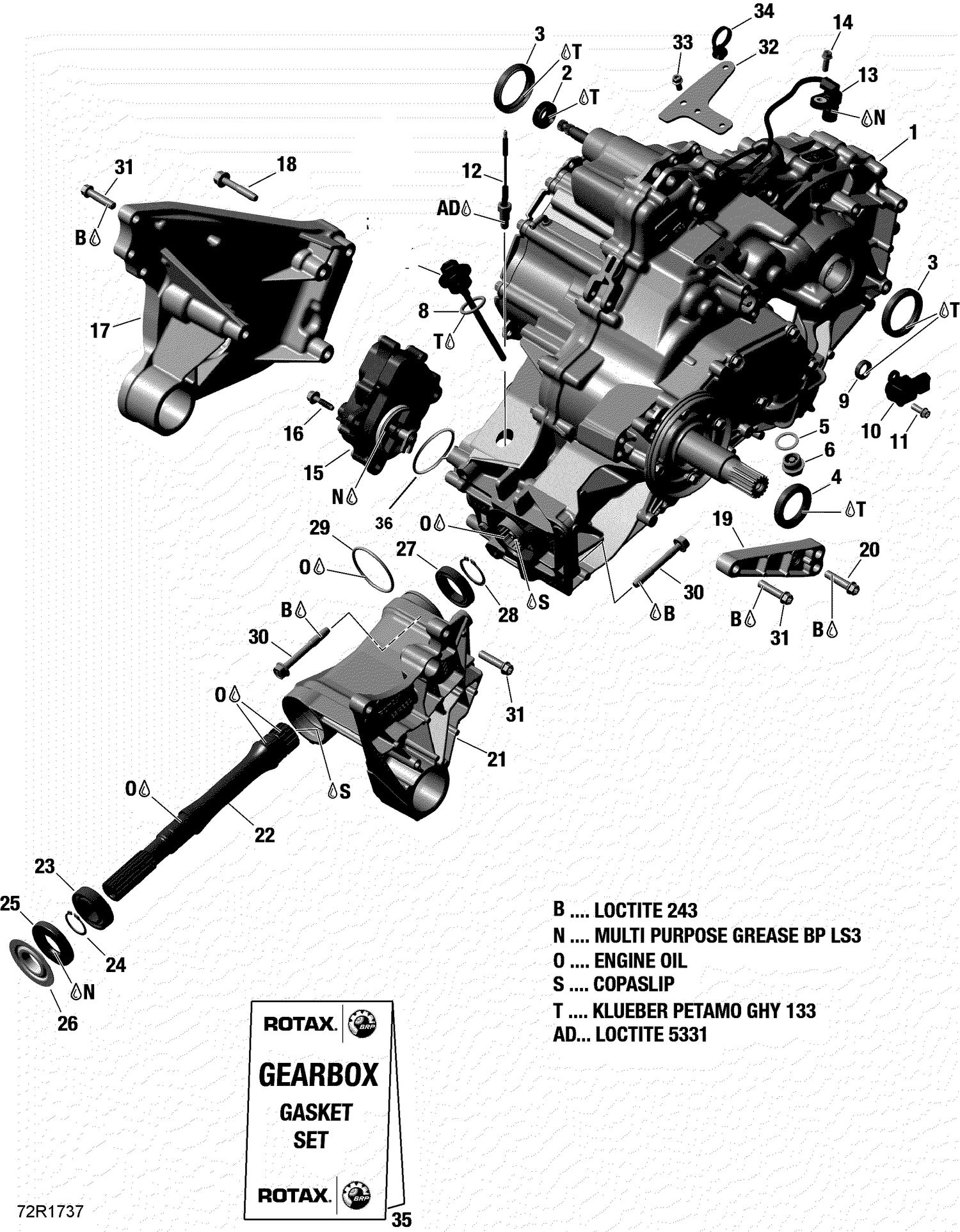

05- Gear Box And Components X3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1>14
Gear Box Ass'y
420686504
|
$3,489.99 | ||
|
Unavailable |
|||
|
#1>14
Gear Box - Please refer to TST 138425 before you order
421000729
Superseded by 703501155
|
$3,299.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Oil Seal
420250452
|
$17.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Oil Seal
420230137
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Oil Seal
420950089
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Crush Washer
420552280
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Drain Plug M18 X 1.5
420840277
Superseded by 420840278
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Oil Dipstick
420256806
|
$17.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-Ring
420631640
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
Oil Seal
420931802
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
Angle Rotation Sensor
420666850
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Flange Screw M6 X 16
420440162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
Contact Screw M10 Ass'y With Cable
420640192
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Camshft Position Sensor Ass'y
420265621
Superseded by 420265727
|
$109.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Torx Flange Screw M6 X 16
420440162
|
$3.29 | ||
|
Unavailable |
|||
|
#15
Actuator Ass'y 3 pins
415129174
Superseded by 715900614
|
$284.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Collar Screw M6 x 25
420441951
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
Kit Engine Bracket
420212636
Superseded by 703501134
|
$153.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Torx Flange Screw M8 X 45
420441931
Superseded by 420441932
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
Gear Box Bracket
420212640
Superseded by 420212641
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Torx Flange Screw M8 X 35
420440861
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
Engine Bracket PTO Side
420212631
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Drive Shaft
420637600
|
$301.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Ball Bearing
420232341
Superseded by 420232342
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Circlip
420945810
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Oil Seal
420831178
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Cover
420626990
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Ball Bearing
420632275
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Retaining Ring
420945610
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-Ring
420450391
Superseded by 420450393
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#30
Torx Flange Screw M8 X 65
420440403
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#31
Torx Flange Screw M8 X 35
420440861
|
$3.39 | ||
|
Unavailable |
|||
|
#32
Support Plate
420651042
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Hex. Flange Screw M6 X 12
420440147
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#34
Tie Rap
420951345
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#35
To be determined
TBD
|
|||
|
Unavailable |
|||
|
#36
O-Ring
293300117
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
