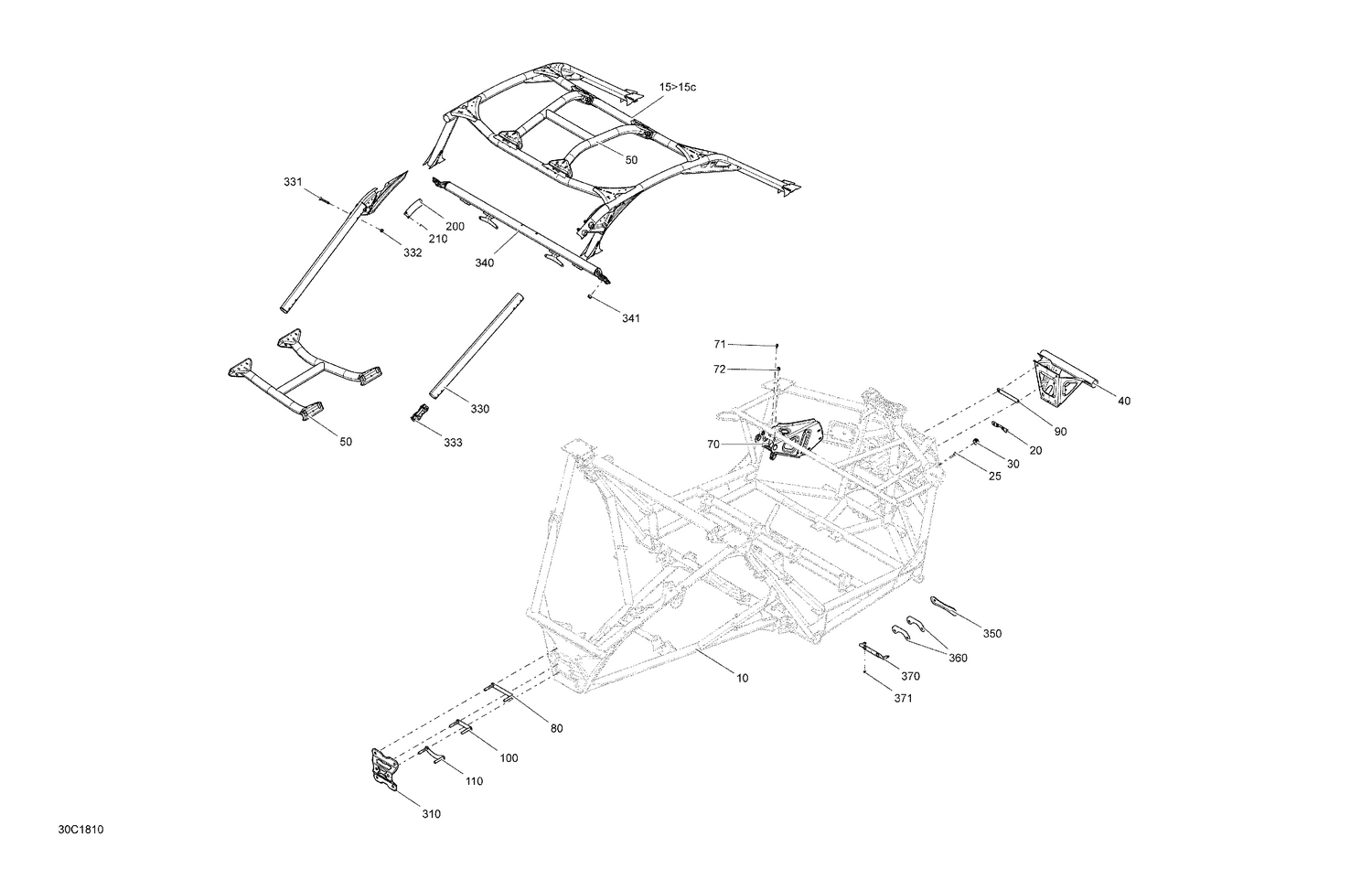

09- Frame Maverick X3 Non Max Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10>15c
Black Frame Kit
715004465
|
|||
|
Available to order. Add to View Price |
|||
|
#10>15c
Red Frame Kit
715004466
Superseded by 715006026
|
|||
|
Available to order. Add to View Price |
|||
|
#10>15c
Blue Frame
715005027
|
|||
|
Available to order. Add to View Price |
|||
|
#10>15c
Yellow Frame Kit
715005029
|
|||
|
Available to order. Add to View Price |
|||
|
#15>15c
Front Black Cage Kit
715004463
|
|||
|
Available to order. Add to View Price |
|||
|
#15>15c
Front Red Cage Kit
715004464
|
|||
|
Available to order. Add to View Price |
|||
|
#15>15c
Front Blue Cage Kit
715005034
|
|||
|
Available to order. Add to View Price |
|||
|
#15>15c
Front Yellow Cage Kit
715005036
|
$1,319.99 | ||
|
Available to order. Add to View Price |
|||
|
#15a
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15b
Hex. Flange Screw S.Grip M12 X 30
207523036
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#15c
Hex. Flange Elastic Nut M12
233221414
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
Front Plate
705207424
Superseded by 705211561
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Flange Screw M6 X 10, Scotch Grip
207561044
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#30
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
Deep Black, Front Bumper
705205746
Superseded by 705210400
|
$103.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
PAINTED FRONT BUMPER - Call your local BRP dealership
705205747
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Painted Added Cage
705206771
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Added Cage
705206774
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
DPS Support
705206924
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Rear Upper Plate
705206852
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Stifner Plate
705205564
Superseded by 705206877
|
$30.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#100
Rear Central Plate
705206853
Superseded by 705211558
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Rear Plate
705206854
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#200
Black, LH Link Plate
705205926
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#200
PLATE_CONNECTING B-101 PAINTED - Call your local BRP dealership
705205929
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#210
BLACK DART
293730076
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#310
Rear Plate
705205750
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#330
Deep Black, Rear Pillar
705205751
Superseded by 705210066
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#330
Red- Rear Mount
705205752
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#331
Torx Truss M8 X 65
250000901
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#332
Elastic Flange Nut M8
250100025
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#333
Sleeve
705205634
Superseded by 705210648
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#340
Belt Bar
705205268
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#341
Elastic Stop Nut M12
232521416
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#350
Upper Link Arm
705205294
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#360
Retaining Plate
705205295
Superseded by 705210249
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#370
Support
706203122
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#371
Pop Rivet 3/16"
390402000
|
$0.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#380
Front Upper Plate
705206069
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#390
Rear Upper Plate
705206511
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#390
Rear Upper Plate
705206511
|
$15.99 | ||
|
Unavailable |
|||
