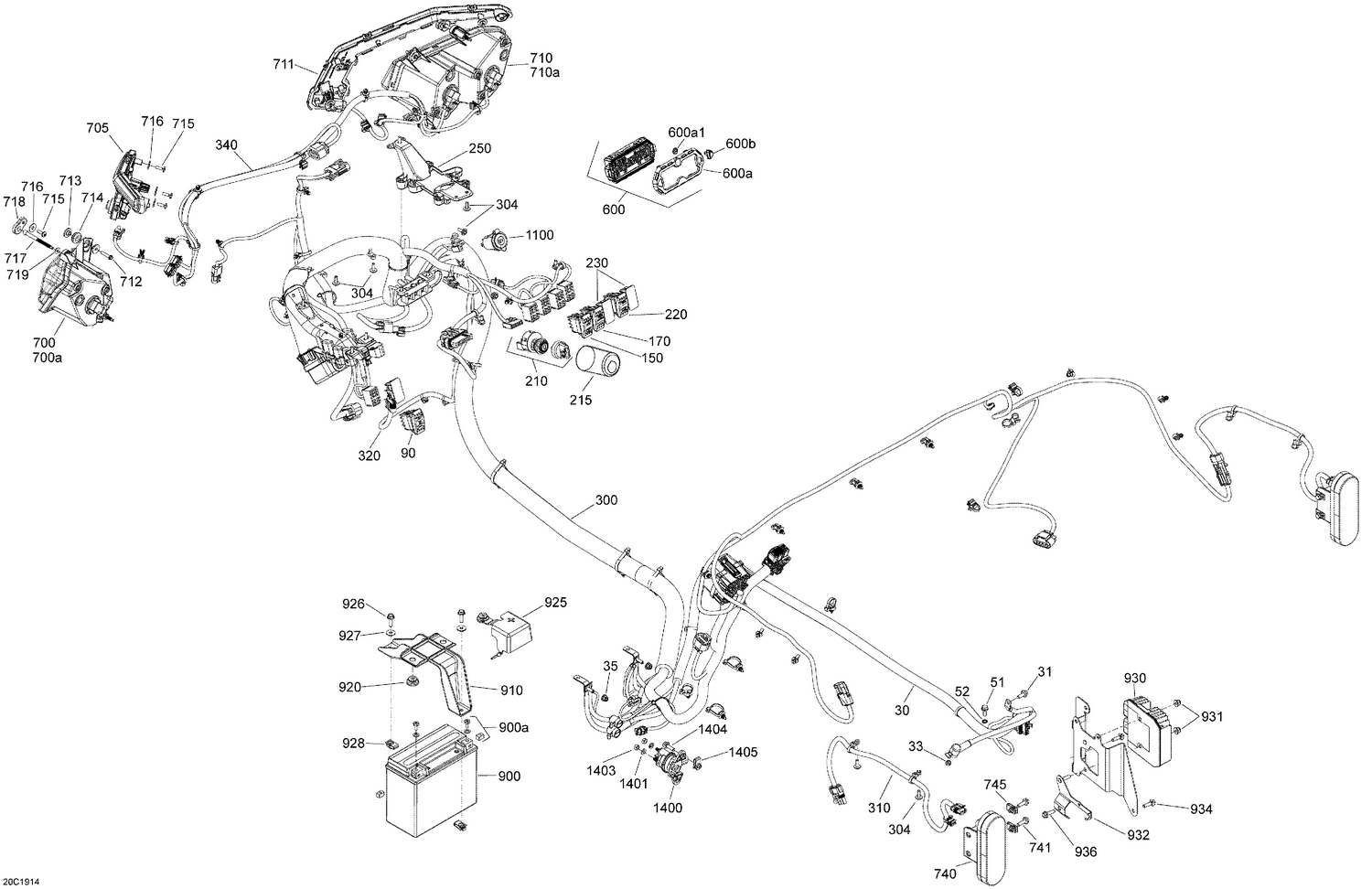

10- Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#30
Starter Wiring Harness
710006244
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Elastic Stop Nut M6
232561414
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#35
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
Unavailable |
|||
|
#52
External Serrated Lock Washer 6 mm
234461608
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#90
Light Switch
710004492
|
$47.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#150
2 X 4 Switch
710004814
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#170
Differential Lock Switch
710005470
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#210
Inter Allumage *Ignition
710004198
Superseded by 710007870
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#215
Key Switch Protector
710005739
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#220
Driving Mode Switch
710005909
|
$36.49 | ||
|
Available to order. Add to View Price |
|||
|
#230
Plug Carling
710001999
Superseded by 710007173
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#250
Housing Support
710005672
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#300
Main Wiring Harness
710006403
|
$929.99 | ||
|
Available to order. Add to View Price |
|||
|
#304
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#310
Rear Harness
710005363
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#320
Trottle Pedal Harness
710005929
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#340
Front Wiring Harness
710006257
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#600
Speedometer
710005553
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#600a
Trim Ring Ass'y
710001183
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#600a1
BRP Logo13 mm
704904615
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#600b
Button
715900265
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#700
LH Headlamp
710006422
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#700a
Bulb 12V 55W
715900141
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#705
LH Fascia Trim
705011485
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#705
LH Signature Beam
710004994
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#710
RH Headlamp
710006423
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#710a
Bulb 12V 55W
715900141
|
$41.49 | ||
|
Unavailable |
|||
|
#711
RH Fascia Trim
705011486
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#711
RH Signature Beam
710004995
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#712
Hex. Flange Screw K50 X 2.24 X 25
241152540
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#713
Shoulder Bushing
710004749
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#714
Grommet
293720053
Superseded by 709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#715
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#716
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#717
Ajustment Screw
710005837
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#718
Adjustment Guide
710005097
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#719
O-Ring
293300192
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#740
Tail Light
710004497
|
$111.49 | ||
|
Available to order. Add to View Price |
|||
|
#741
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#745
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#900
Battery YUASA YTX20L
410301203
|
$149.95 | ||
|
Unavailable |
|||
|
#900a
Battery Bolt Kit
250000282
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#910
Fixation Plate
710005673
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#920
Rubber Stopper
705003666
Superseded by 705014429
|
$6.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#925
Battery Cable Cap
710005930
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#926
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#927
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#928
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#930
Voltage Regulator
710005842
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#931
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#932
Voltage Regulator Attach
710006402
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#934
Voltage Regulator Support
710006656
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#936
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1100
12V Power Outlet
710005374
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#1400
Starter Relay
278003012
|
$43.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1401
Lock Washer Helical M6
234161601
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1403
Hex. Nut M6
232061600
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1404
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Unavailable |
|||
|
#1405
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
Unavailable |
|||
