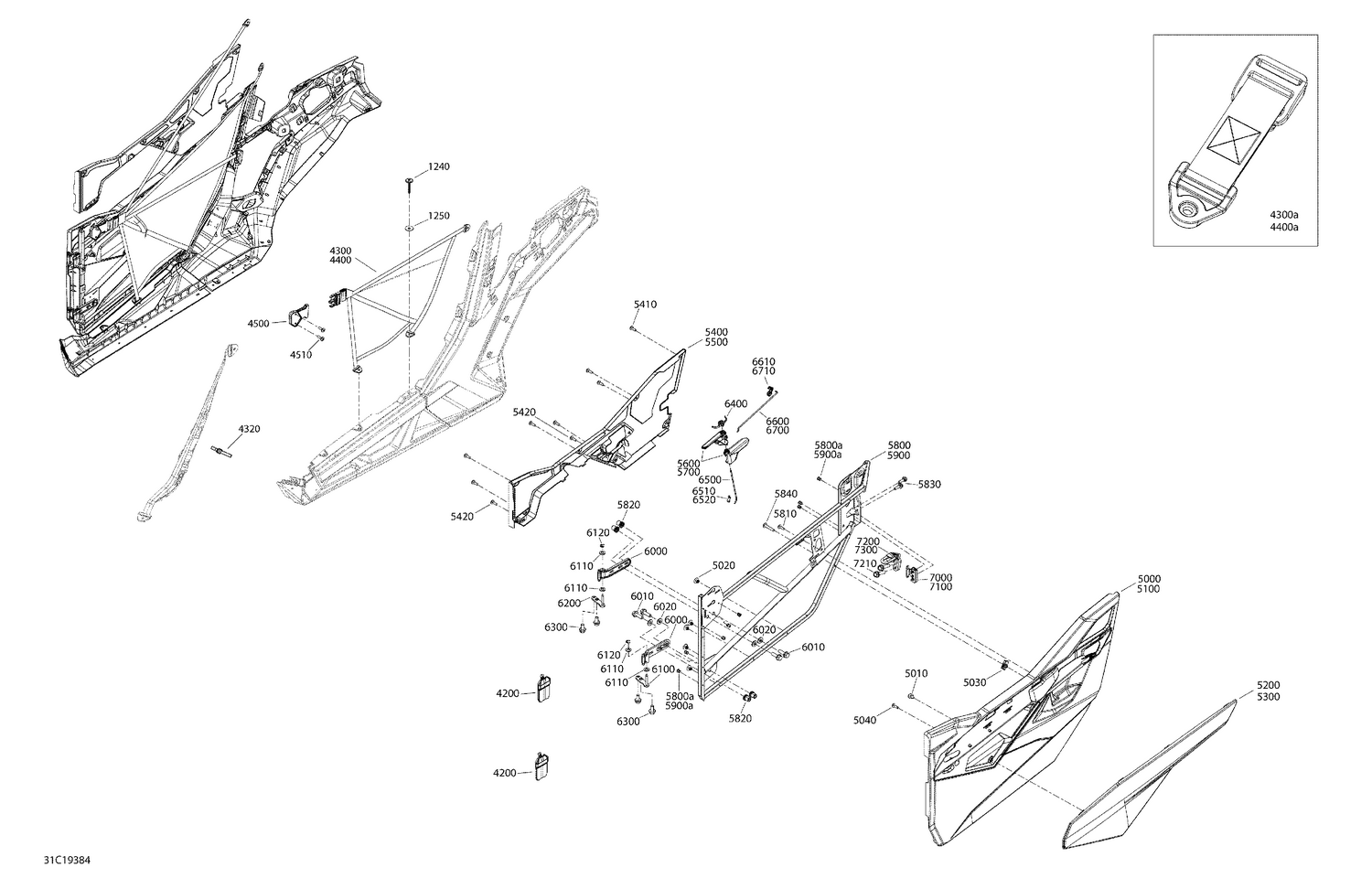

09- Body Maverick Trail - 800 - Door Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1240
Torx Truss Screw Head PT.K50 X 40
250000840
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#1250
Flat Washer M6.6 X 22
250200162
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#4200
Hinge Cover
705012703
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4300
LH Front Safety Net
707900604
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#4300a
Upper Link
707900049
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#4320
Tie Rap, 533 mm
293750047
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#4400
RH Front Safety Net
707900605
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#4400a
Upper Link
707900049
|
$43.99 | ||
|
Unavailable |
|||
|
#4500
Safety Net Link
707900592
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#4510
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#5000
LH Exterior Door Panel
705011479
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#5010
Rubber Bumper
293830005
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#5020
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#5030
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5040
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#5100
RH Exterior Door Panel
705011480
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#5200
White, LH Door Trim Panel
705011481
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#5200
Red, LH Door Trim Panel
705012419
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#5300
White, RH Door Trim Panel
705011482
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#5300
Red, RH Door Trim Panel
705012420
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#5400
LH Inner Door Panel Ass'y
715005003
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#5410
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#5420
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#5500
RH Door Panel Ass'y
715005004
Superseded by 715006765
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#5600
LH Opening Handle
705011585
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5700
RH Opening Handle
705011586
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5800
LH Door Frame
705800303
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#5800a
Pop Rivet 3/16"
390402000
|
$0.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5810
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#5820
Insert Half Hex Body M8 x 1.25
293450307
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#5830
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#5840
Torx Screw M6 X 35
250000541
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5900
RH Door Frame
705800304
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#5900a
Pop Rivet 3/16"
390402000
|
$0.33 | ||
|
Unavailable |
|||
|
#6000
Hinge
705013228
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6010
Hex. Flange Screw M8 X 25, Scotch Grip
207582586
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6020
Washer
503192494
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#6030
Lock Washer 8 mm, Stainless
234181601
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#6100
Lower Hinge Ajustement
705011629
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6110
Flat Washer 8 mm, Nylon
234081100
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6120
Circlip
705601030
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#6200
Upper Hinge Ajustement
705012506
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6300
Hex. Flange Screw DIN.6921 S.Grip
250001033
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#6400
Handle Spring
705011630
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6500
Handle Axle
705206132
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#6510
RH Tie Rod Clip
708300202
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#6520
LH Tie Rod Clip
708300182
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#6600
LH Locking Rod
705206133
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#6610
RH Tie Rod Clip
708300202
|
$2.89 | ||
|
Unavailable |
|||
|
#6700
RH Locking Rod
705206134
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#6710
LH Tie Rod Clip
708300182
|
$2.89 | ||
|
Unavailable |
|||
|
#7000
LH Latch
705013095
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7100
RH Latch
705013096
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#7200
LH Stricker Support
705207027
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7210
Hex. Flange Screw M8 X 30, Scotch Grip
207583044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7300
RH Stricker Support
705207028
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
