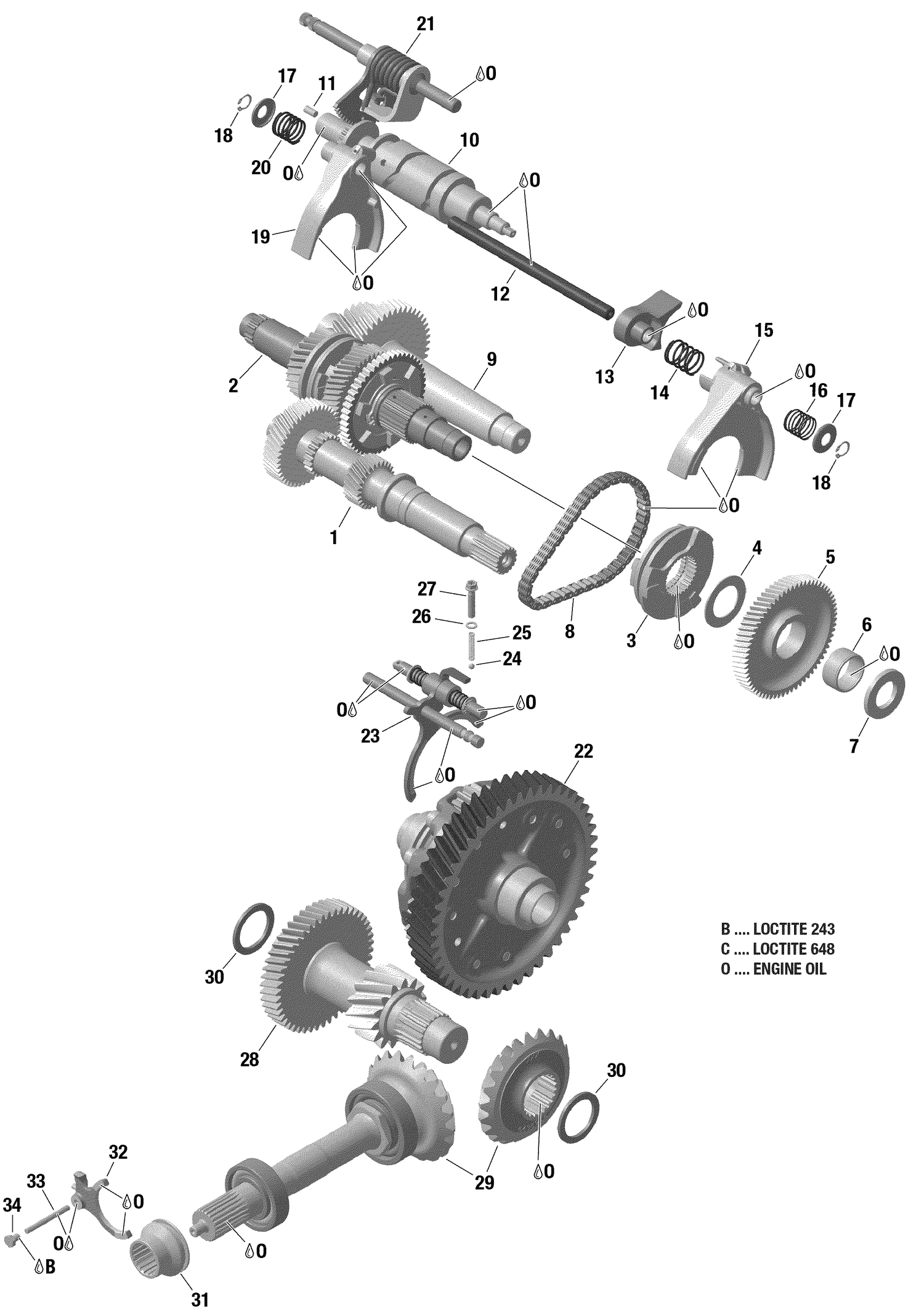

05- Gear Box 2 - 420686757 - Dps Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Counter Shaft
420637508
Superseded by 420637507
|
$370.49 | ||
|
Available to order. Add to View Price |
|||
|
#2>7
Main Shaft
420637774
Superseded by 420637786
|
$939.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Shifting Sleeve
420657404
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Not Available As Spare Part - Thrust Washer
|
|||
|
Unavailable |
|||
|
#5
Gear Pinion 65T
420435903
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Needle Cage
420432139
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Thrust Washer
420427083
Superseded by 420427082
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Chain
420898532
|
$98.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Intermediate Shaft
420637676
|
$338.99 | ||
|
Available to order. Add to View Price |
|||
|
#10>11
Shifting Drum
420657546
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Needle Pin
420932780
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
Fork Spindle
420657432
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Shifting Block
420657475
Superseded by 420657476
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Spring
420638075
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
Gearshift Fork Ass'y
420657539
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Spring
420638070
|
|||
|
Available to order. Add to View Price |
|||
|
#17
Spring Seat
420427140
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
Retaining Ring
420945470
|
$5.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Gearshift Fork Ass'y
420657559
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Spring
420638075
|
$3.98 | ||
|
Unavailable |
|||
|
#21
Shift Shaft With Gear
420637568
Superseded by 420637569
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Differential Ass'y
420686442
Superseded by 420686448
|
$1,359.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Shifting Fork Ass'y
420657469
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Ball
420932620
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#25
Spring
420638090
|
$17.28 | ||
|
Available to order. Add to View Price |
|||
|
#26
Seal Washer
420230415
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Torx Flange Screw M6 X 30
420440647
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Not Available As Spare Part - Pinion Drive Shaft
|
|||
|
Unavailable |
|||
|
#29
Not Available As Spare Part - Bevel Gear Set
|
|||
|
Unavailable |
|||
|
#30
Not Available As Spare Part - Shim
|
|||
|
Unavailable |
|||
|
#31
Shifting Sleeve
420257673
Superseded by 420257674
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Shifting Fork Ass'y
420258525
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
Needle Pin
420832650
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#34
Hex Screw M6 X 8
420841581
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
