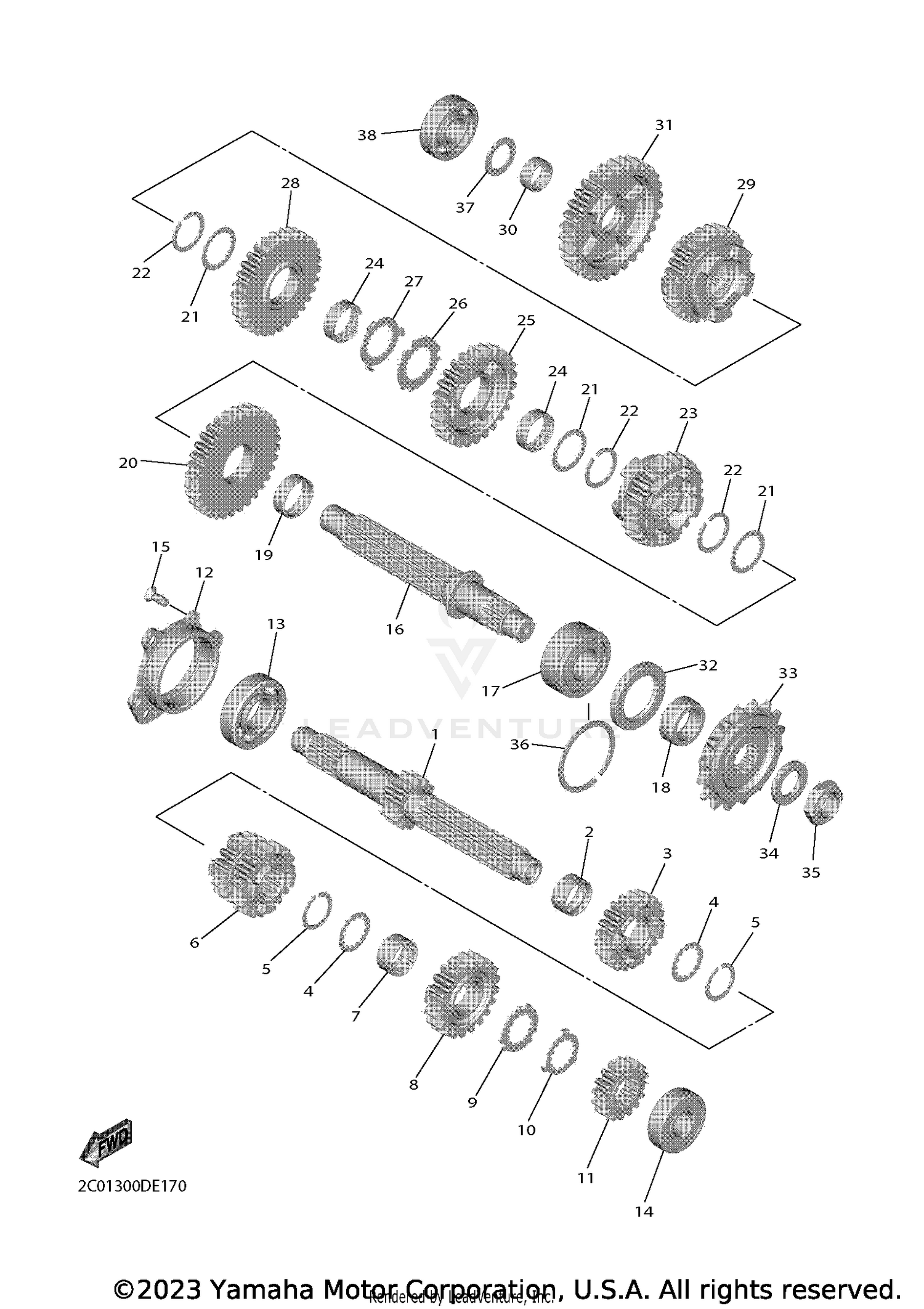

2018 Yamaha YZF R6 TRANSMISSION OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (12T)
2C0-17411-00-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-250R3-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION (21T)
13S-17151-00-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-21332-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-25186-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (18T/18T)
13S-17131-00-00
|
$180.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-21003-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 6TH PINION (20T)
13S-17161-10-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
90209-22352-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
90209-21351-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, 2ND PINION (16T)
13S-17121-10-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOUSING, BEARING 1
2C0-15163-00-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-20562-00
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BEARING
93306-20464-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW, COUNTERSUNK
90151-06024-00
Superseded by 90151-06023-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE, DRIVE
13S-17421-00-00
|
$210.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93305-20509-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-25016-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-28011-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 2ND WHEEL (32T)
13S-17221-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
90209-25011-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CIRCLIP
93440-28184-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 6TH WHEEL (23T)
2C0-17261-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-25015-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 4TH WHEEL (26T)
2C0-17241-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, CLAW
90214-25004-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, CLAW
90214-25003-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, 3RD WHEEL (30T)
2C0-17231-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR, 5TH WHEEL (27T)
13S-17251-00-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-21004-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, 1ST WHEEL (31T)
2C0-17211-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL
93102-35017-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET, DRIVE (16T)
2C0-17460-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-20023-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
NUT
90179-20011-00
Superseded by 90179-20010-00
|
$19.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CIRCLIP
93440-52014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90201-20278-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING
93306-20464-00
|
$32.99 | ||
|
Unavailable |
|||
