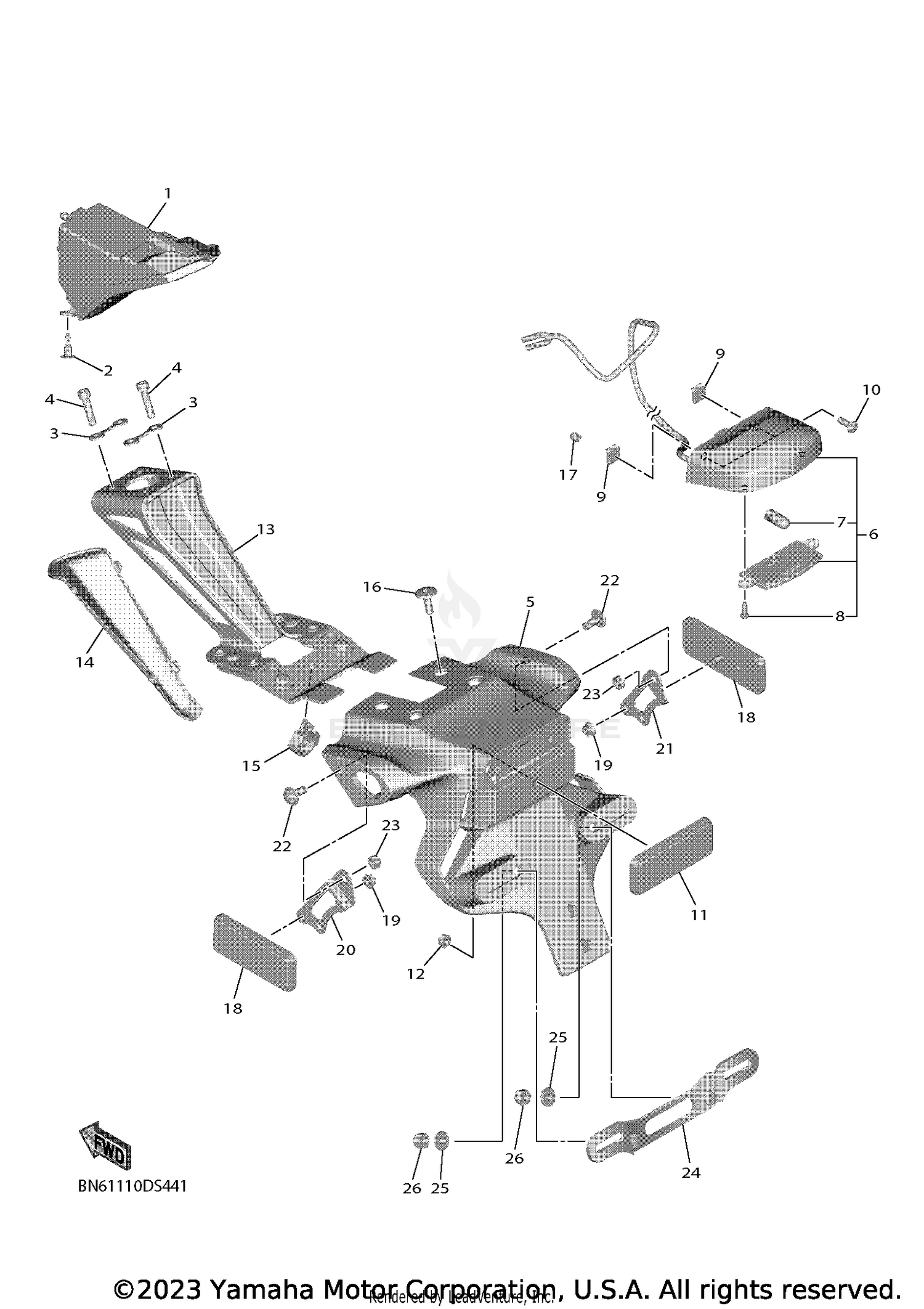

2018 Yamaha YZF R6 TAILLIGHT OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Other
+
Seat
+
Item MSRP Qty
#1 TAILLIGHT UNIT ASSY
2CR-84710-00-00
$182.99
Available: Ships in 7-12 days.
Add to View Price
#2 RIVET
90269-06008-00
$6.49
In Stock: Ready to ship.
Add to View Price
#3 WASHER, SPECIAL 1
BN6-21615-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#4 BOLT, HEXAGON SOCKET HEAD
90110-06295-00
Superseded by 91314-06025-00
$6.49
In Stock: Ready to ship.
Add to View Price
#5 GUARD, MUD
2C0-21629-11-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#6 LICENSE LIGHT UNIT ASSY
5VX-84745-01-00
$75.99
Available: Ships in 7-12 days.
Add to View Price
#7 BULB (12V-5W)
4HC-84744-00-00
Superseded by 4SV-84347-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#8 SCREW, TAPPING
97706-04012-00
Superseded by 97707-40012-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 NUT, SPRING
90183-05061-00
$4.35
In Stock: Ready to ship.
Add to View Price
#10 SCREW, BIND
98902-05014-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#11 REAR REFLECTOR ASSY
3Y6-85130-02-00
$19.99
Available: Ships in 7-12 days.
Add to View Price
#12 NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#13 REAR STAY COMP.
BN6-21640-00-00
$178.99
Available: Ships in 7-12 days.
Add to View Price
#14 COVER, REAR FENDER 2
BN6-2163E-00-00
$22.99
Available: Ships in 7-12 days.
Add to View Price
#15 CLAMP
90464-14228-00
$3.80
Available: Ships in 7-12 days.
Add to View Price
#16 BOLT
90109-06182-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#17 PLUG, BLIND
5VX-13569-01-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#18 REAR REFLECTOR ASSY
3Y6-85130-02-00
$19.99
Unavailable
#19 NUT, WITH WASHER
95702-05500-00
$0.30
In Stock: Ready to ship.
Add to View Price
#20 BRACKET, REAR STAY
2C0-21688-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#21 BRACKET, REAR STAY 2
2C0-21689-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#22 SCREW, WITH WASHER
90159-06011-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#23 NUT, U
95602-06100-00
Superseded by 95617-06100-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#24 BRACKET, LICENSE
5MT-84751-00-00
$22.99
Available: Ships in 7-12 days.
Add to View Price
#25 WASHER, PLATE
90201-06057-00
$4.35
In Stock: Ready to ship.
Add to View Price
#26 NUT, U
95602-06100-00
Superseded by 95617-06100-00
$6.49
Unavailable
