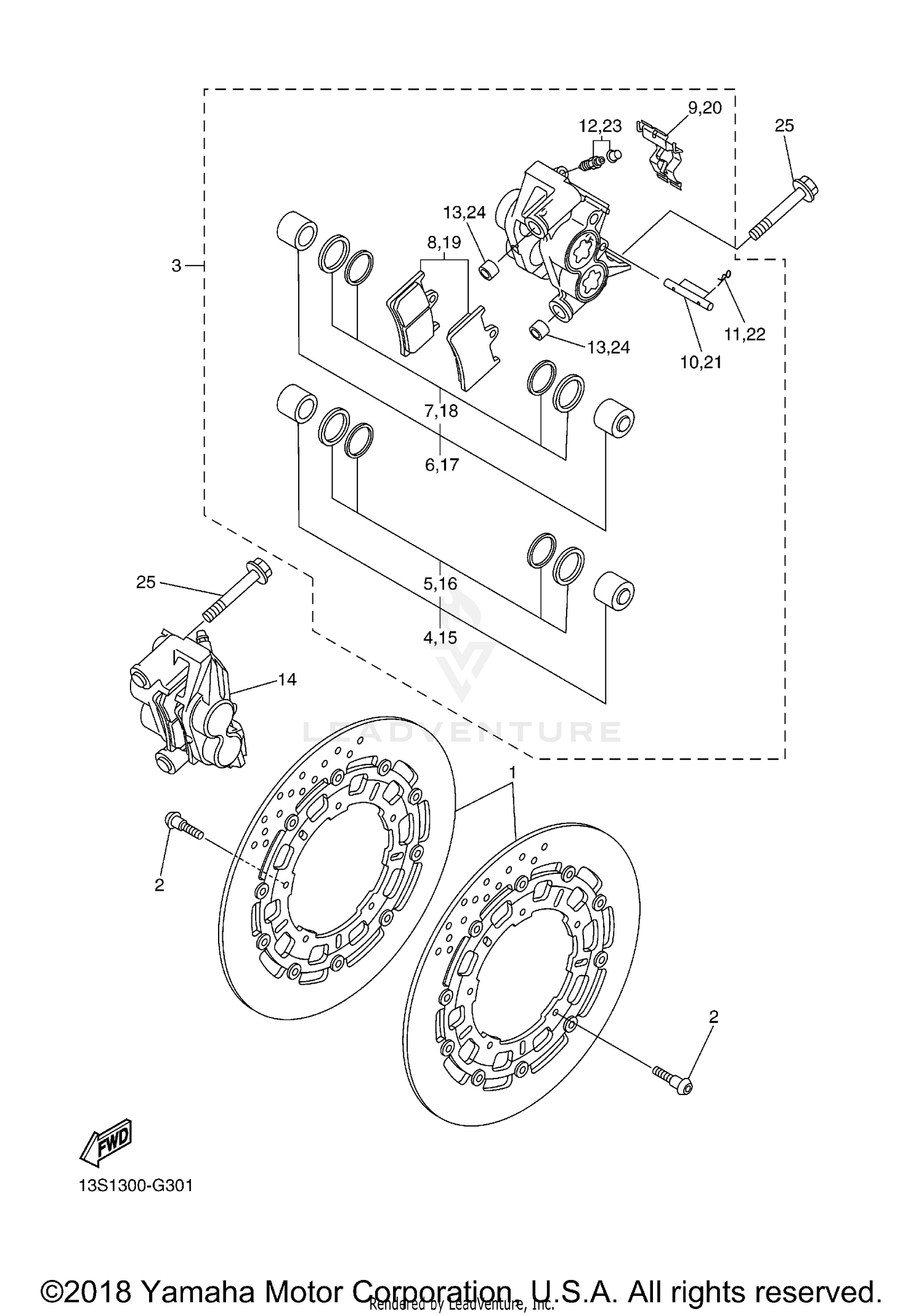

2011 Yamaha YZF R6 FRONT BRAKE CALIPER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC BRAKE ASSY
13S-2581T-00-00
|
$255.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SCREW
90149-06043-00
Superseded by 90149-06045-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
13S-2580T-00-00
|
$458.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
13S-2580T-10-00
|
$580.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
5PW-W0057-10-00
Superseded by 5PW-25802-10-00
|
$69.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
5PW-W0047-10-00
Superseded by 5PW-25803-10-00
|
$13.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
PISTON ASSY, CALIPER
5PW-W0057-00-00
Superseded by 5PW-25802-00-00
|
$70.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
5PW-W0047-00-00
Superseded by 5PW-25803-00-00
|
$13.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BRAKE PAD KIT
2C0-W0045-00-00
Superseded by 2C0-25805-00-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SUPPORT, PAD
13S-25919-00-00
|
$18.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
PIN, PAD
4SV-25924-00-00
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CLIP
3GM-25925-00-00
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BLEED SCREW KIT
1J3-W0048-00-00
|
$23.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
PIN, KNOCK
5VY-2583B-00-00
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CALIPER ASSY (RIGHT)
13S-2580U-00-00
|
$528.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CALIPER ASSY (RIGHT)
13S-2580U-10-00
|
$528.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
PISTON ASSY, CALIPER
5PW-W0057-10-00
Superseded by 5PW-25802-10-00
|
$69.99 | ||
|
Unavailable |
|||
|
#16
CALIPER SEAL KIT
5PW-W0047-10-00
Superseded by 5PW-25803-10-00
|
$13.99 | ||
|
Unavailable |
|||
|
#17
PISTON ASSY, CALIPER
5PW-W0057-00-00
Superseded by 5PW-25802-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#18
CALIPER SEAL KIT
5PW-W0047-00-00
Superseded by 5PW-25803-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#19
BRAKE PAD KIT
2C0-W0045-00-00
Superseded by 2C0-25805-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#20
SUPPORT, PAD
13S-25919-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#21
PIN, PAD
4SV-25924-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#22
CLIP
3GM-25925-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#23
BLEED SCREW KIT
1J3-W0048-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#24
PIN, KNOCK
5VY-2583B-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
90105-10397-00
|
$8.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
