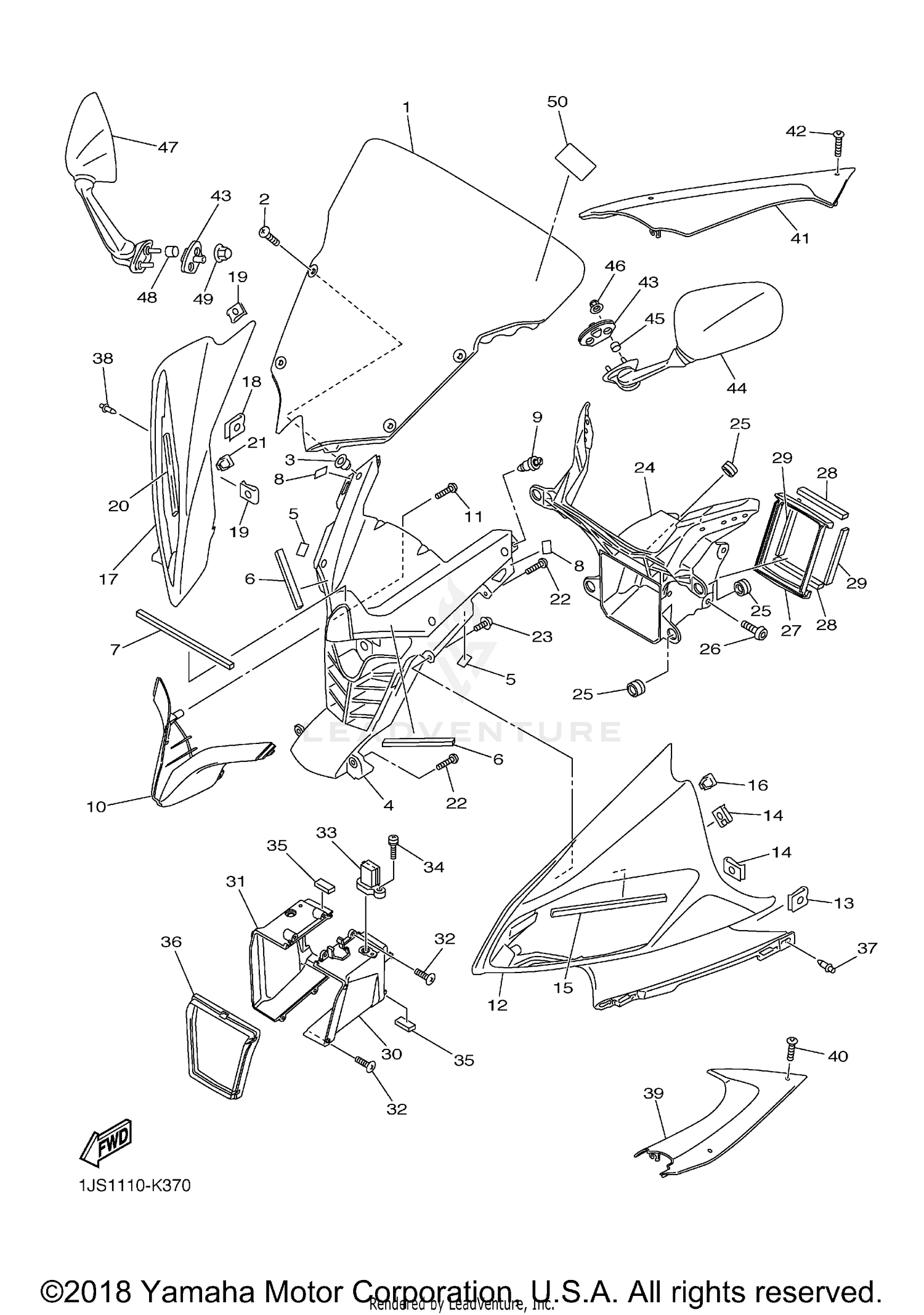

2011 Yamaha YZF R6 COWLING 1 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINDSHIELD
13S-28381-10-00
|
$64.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SCREW, ROUND HEAD
90150-05023-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
NUT
90179-05523-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PANEL, INNER 1
13S-2836K-00-00
|
$67.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
DAMPER 1
3P6-28217-00-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
DAMPER 2
13S-28227-00-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
DAMPER 3
13S-28237-00-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
DAMPER
13S-28371-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
RIVET
90269-06046-00
Superseded by 90269-06001-00
|
$4.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
COVER
13S-28365-10-00
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW, TAPPING
97702-40016-00
Superseded by 97707-40016-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BODY, FRONT UPPER 1
13S-2835G-00-P0
|
$263.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BODY, FRONT UPPER 1
13S-2835G-00-P3
|
$252.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT, SPRING
90183-05042-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
DAMPER, 4
2C0-28455-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
GROMMET
90480-01605-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BODY, FRONT UPPER 2
13S-2835H-00-P3
|
$245.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BODY, FRONT UPPER 2
13S-2835H-00-P0
|
$254.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
NUT, SPRING
90183-05042-00
|
$6.49 | ||
|
Unavailable |
|||
|
#20
DAMPER, 4
2C0-28455-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#21
GROMMET
90480-01605-00
|
$6.49 | ||
|
Unavailable |
|||
|
#22
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, TAPPING
97707-40012-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
STAY 1
13S-28356-00-00
|
$364.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
DAMPER
4XV-83513-00-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, HEX. SOCKET BUTTON
90111-06116-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
JOINT
2C0-28342-01-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
DAMPER 1
2C0-28217-00-00
|
$2.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
DAMPER 2
2C0-28227-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
DUCT 2
13S-2838R-00-00
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
DUCT 3
13S-2838T-00-00
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
SCREW, TAPPING
97702-40016-00
Superseded by 97707-40016-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
|
$41.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
SCREW, TAPPING
97702-50116-00
Superseded by 97780-50116-00
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
DAMPER 2
51Y-21639-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
DAMPER
2C0-28371-00-00
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
RIVET
90269-06008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
RIVET
90269-06008-00
|
$6.49 | ||
|
Unavailable |
|||
|
#39
PANEL, CONSOLE 1
13S-2837L-00-00
|
$16.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
BOLT, HEX. SOCKET BUTTON
90111-05021-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
PANEL, CONSOLE 2
13S-2837M-00-00
|
$16.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
BOLT, HEX. SOCKET BUTTON
90111-05021-00
|
$6.49 | ||
|
Unavailable |
|||
|
#43
PLATE, MIRROR FITTING 1
13S-26298-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
REAR VIEW MIRROR ASSY (LEFT)
13S-26280-10-00
|
$101.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
COLLAR
90387-064T3-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
NUT, CROWN
90176-06008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
REAR VIEW MIRROR ASSY (RIGHT)
13S-26290-10-00
|
$96.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#48
COLLAR
90387-064T3-00
|
$6.49 | ||
|
Unavailable |
|||
|
#49
NUT, CROWN
90176-06008-00
|
$6.49 | ||
|
Unavailable |
|||
|
#50
LABEL, NOTICE WINDSHIELD 1
4B5-2815K-00-00
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
