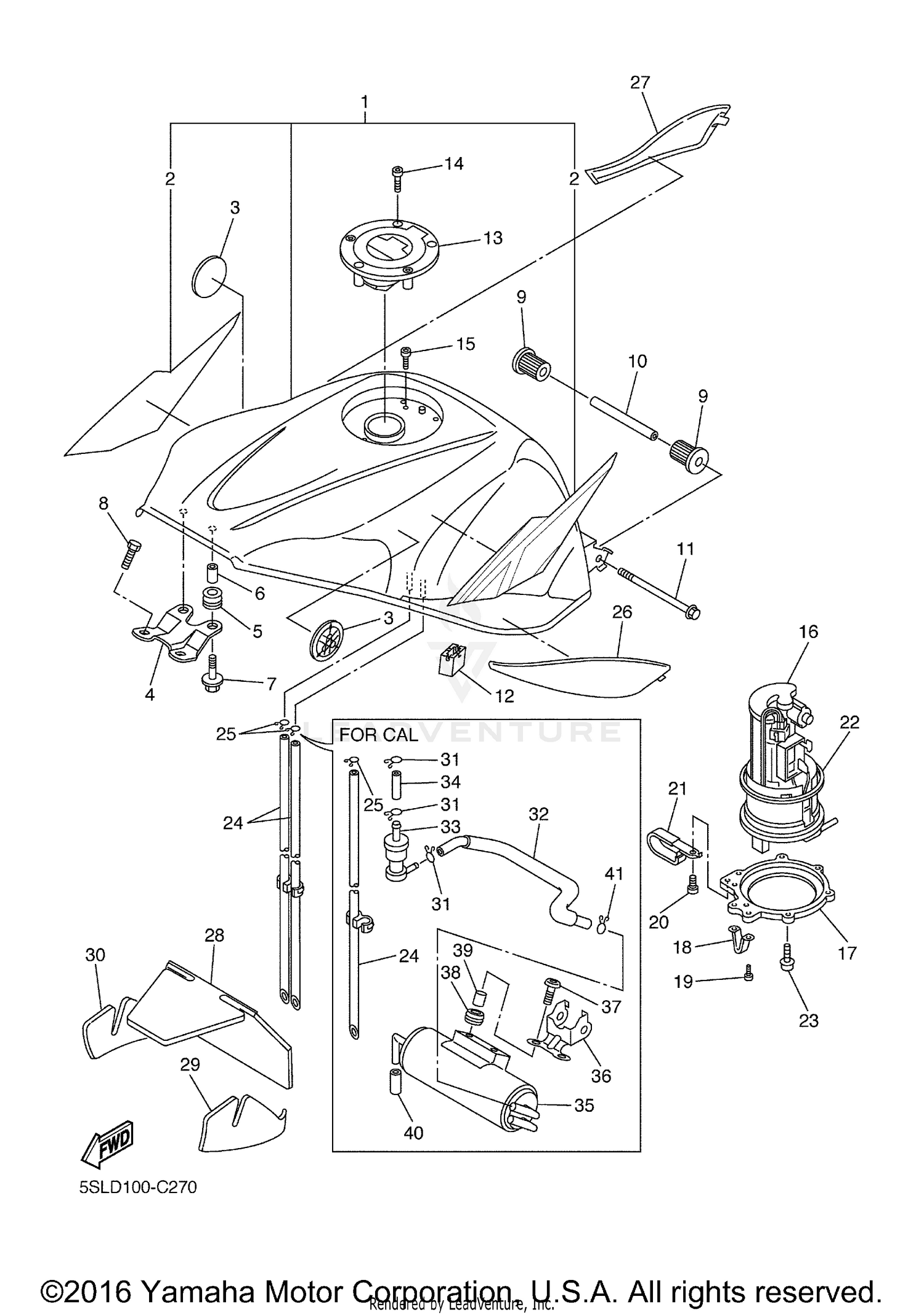

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5SL-Y2410-30-05
|
$951.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FUEL TANK COMP.
5SL-Y2410-30-04
|
$946.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
5SL-24240-40-00
|
$73.76 | ||
|
Available to order. Add to View Price |
|||
|
#
GRAPHIC SET
5SL-24240-50-00
|
$75.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM
5SL-2413B-00-00
Superseded by 5SL-2413B-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, FUEL TANK 1
5SL-24191-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-15483-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-06054-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06062-00
Superseded by 90119-06234-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-06079-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 3
5SL-24183-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95827-06090-00
Superseded by 95817-06090-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 2
5SL-24182-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP ASSY
5JJ-24602-00-00
Superseded by 39P-24602-00-00
|
$278.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,HEX.SOCKET HEAD
91317-05010-00
|
$2.75 | ||
|
Unavailable |
|||
|
#16
FUEL PUMP COMP.
5PW-13907-00-00
Superseded by 5PW-13907-05-00
|
$687.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, FUEL PUMP
5SL-24491-10-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, FUEL TANK 2
5PW-24192-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, BIND
98907-05008-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, BIND
90154-05012-00
Superseded by 98907-05008-00
|
$2.35 | ||
|
Unavailable |
|||
|
#21
CLAMP
90461-10009-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
5JW-24486-00-00
Superseded by 19B-24486-01-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
90110-05014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE ASSY 2
5SL-22907-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#
HOSE ASSY 1
5SL-22906-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
COVER, SIDE 1
5SL-24129-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, SIDE 2
5SL-24139-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, PLATE 1
5SL-2414H-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER, PLATE 2
5SL-2414J-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER, PLATE 3
5SL-2414K-00-00
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#32
PIPE 4
5SL-24314-00-00
Superseded by 5SL-24314-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
ROLL OVER VALVE ASSY
5RB-24180-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE (L120)
90445-11732-00
Superseded by 90445-113E8-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#35
CANISTER ASSY
5SL-24170-00-00
|
$695.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET, CANISTOR
5SL-2419F-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
90110-06200-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
GROMMET
90480-13018-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
90387-062L2-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
HOSE (L70)
90445-11418-00
Superseded by 90445-112E0-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
