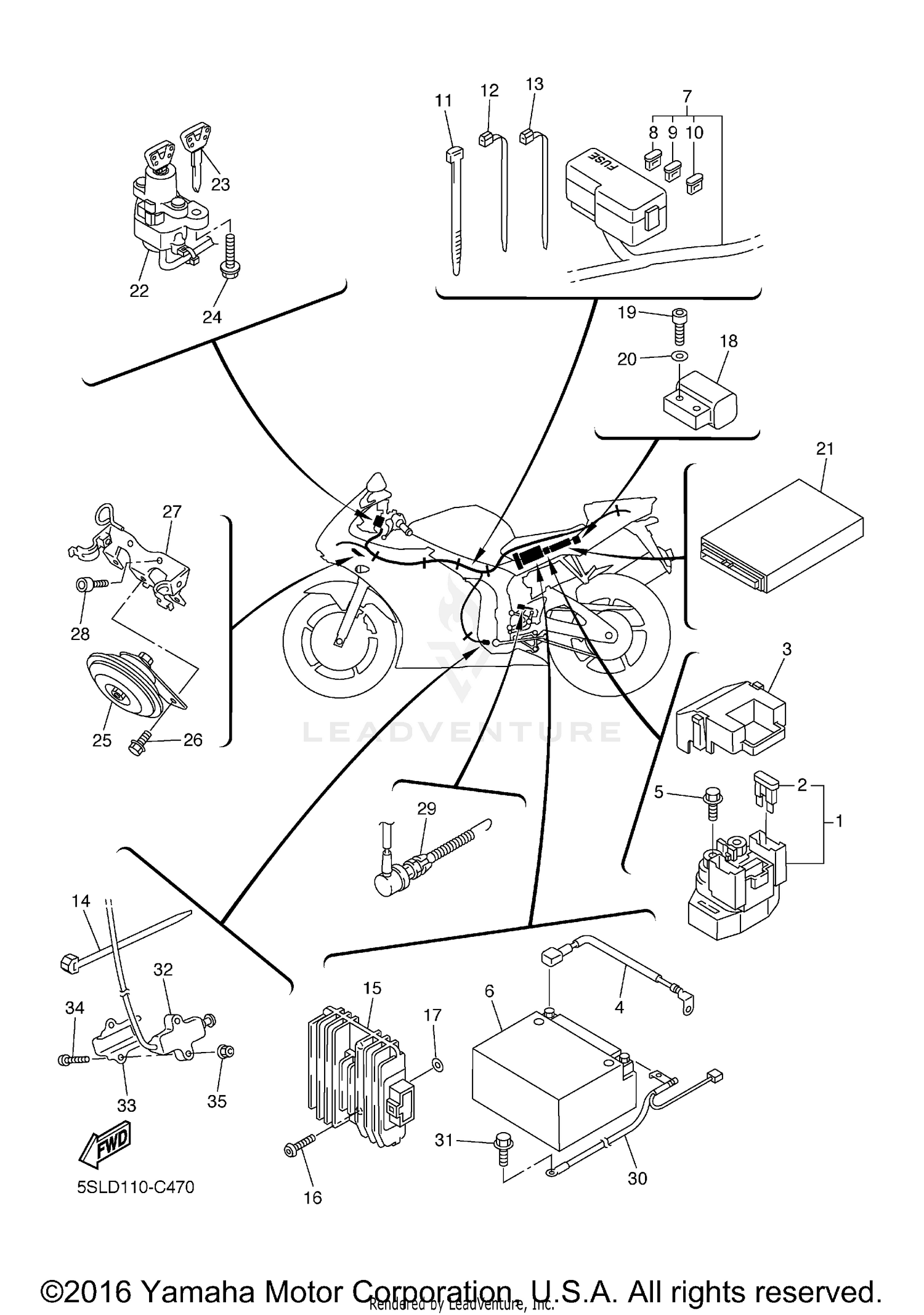

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER RELAY ASSY (RC19-40)
5SL-81940-10-00
Superseded by 5SL-81940-12-00
|
$176.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
FUSE (40A-BL)
5EA-82151-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, LEAD WIRE
5SL-82119-10-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, PLUS LEAD
5SL-82115-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95027-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GT9B4 GS BATTERY -
5FL-82100-01-00
Superseded by GT9-B4000-00-00
|
$110.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WIRE HARNESS ASSY
5SL-82590-30-00
|
$531.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE (20A-BL)
5JJ-82151-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND
3MA-82591-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-13077-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#15
RECTIFIER & REGULATOR ASSY
5SL-81960-00-00
|
$252.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, BUTTON HEAD
92017-06025-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-06001-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR, LEAN ANGLE
5PS-82576-01-00
Superseded by 5PS-82576-02-00
|
$96.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT
91317-04025-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-042E0-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
ENGINE CONTROL UNIT ASSY
5SL-8591A-60-00
|
$1,521.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
MAIN SWITCH STEERING LOCK
5SL-82501-11-00
|
$334.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BLANK KEY
4BH-82511-09-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT
90109-080G5-00
Superseded by 90109-08196-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HORN
4TH-83371-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BRACKET, HORN
5SL-23377-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEX. SOCKET HEAD
91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
STOP SWITCH ASSY
5SL-82530-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WIRE, MINUS LEAD
5SL-82116-00-00
Superseded by 5SL-82116-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SWITCH, SIDE STAND
5PX-82566-70-00
Superseded by 5PX-82566-72-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLATE
5JJ-82388-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, BUTTON HEAD
92017-05030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, U FLANGE
95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
