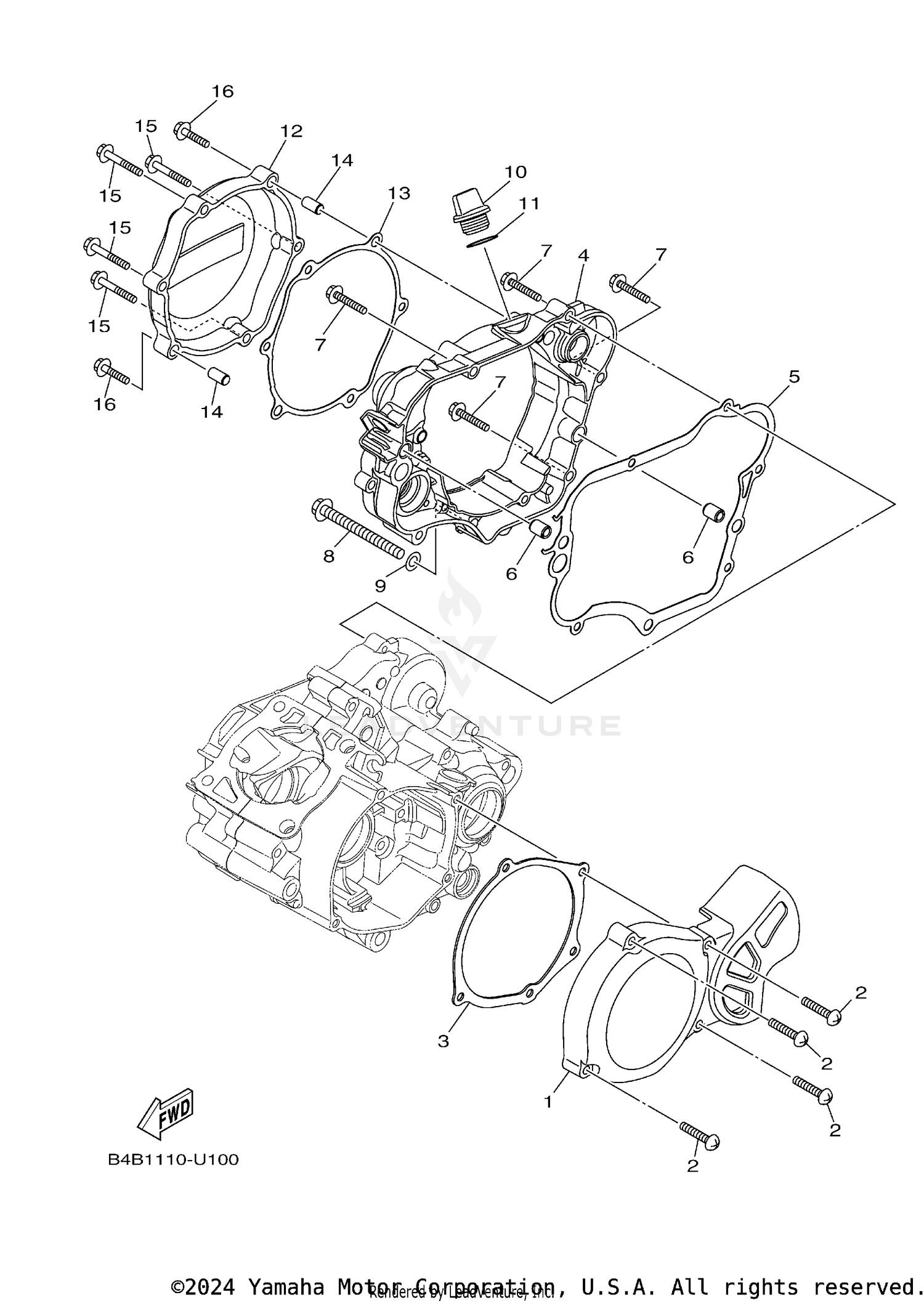

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
4ES-15411-02-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, PAN HEAD
98502-06030-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GASKET, CRANKCASE COVER 1
5PA-15451-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, CRANKCASE 3
BR8-15431-00-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CRANKCASE COVER 2
BR8-15461-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, FLANGE DEEP RECESS
95E32-06030-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE DEEP RECESS
95E32-08080-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, OIL
3Y1-15363-10-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
O-RING
93210-19123-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COVER, 1
5PA-15415-11-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, COVER PINION 2
5PA-15463-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE DEEP RECESS
95E32-06025-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE DEEP RECESS
95E32-06035-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
