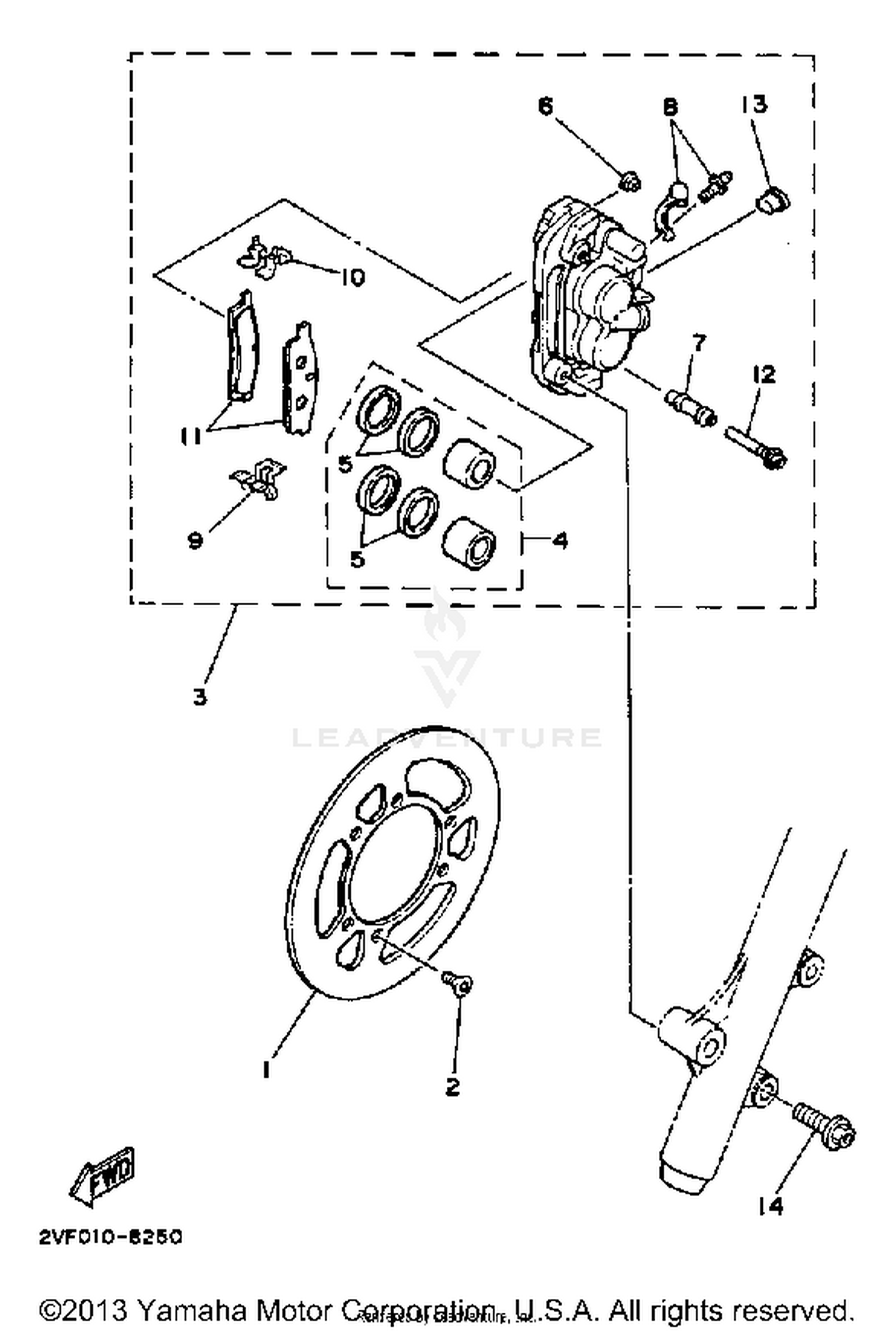

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (RT)
1LR-25831-00-00
|
$290.99 | ||
|
Unavailable |
|||
|
#2
SCREW, SPEC''L SHAPE
90149-06248-00
|
$2.90 | ||
|
Unavailable |
|||
|
#3
CALIPER ASSY (LEFT)
3MK-2580T-00-00
Superseded by 4ES-2580T-20-00
|
$340.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
1LR-W0057-00-00
Superseded by 4ES-W0057-10-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
1LR-W0047-00-00
Superseded by 4ES-25803-10-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT 2
5R2-25937-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT 2
56A-25937-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SUPPORT, PAD
56A-25919-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUPPORT, PAD
56A-25919-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE PAD KIT
2HF-W0046-02-00
Superseded by 4ES-W0045-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
56A-25926-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, INDICATOR
34X-25845-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95811-08035-00
Superseded by 95817-08035-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
