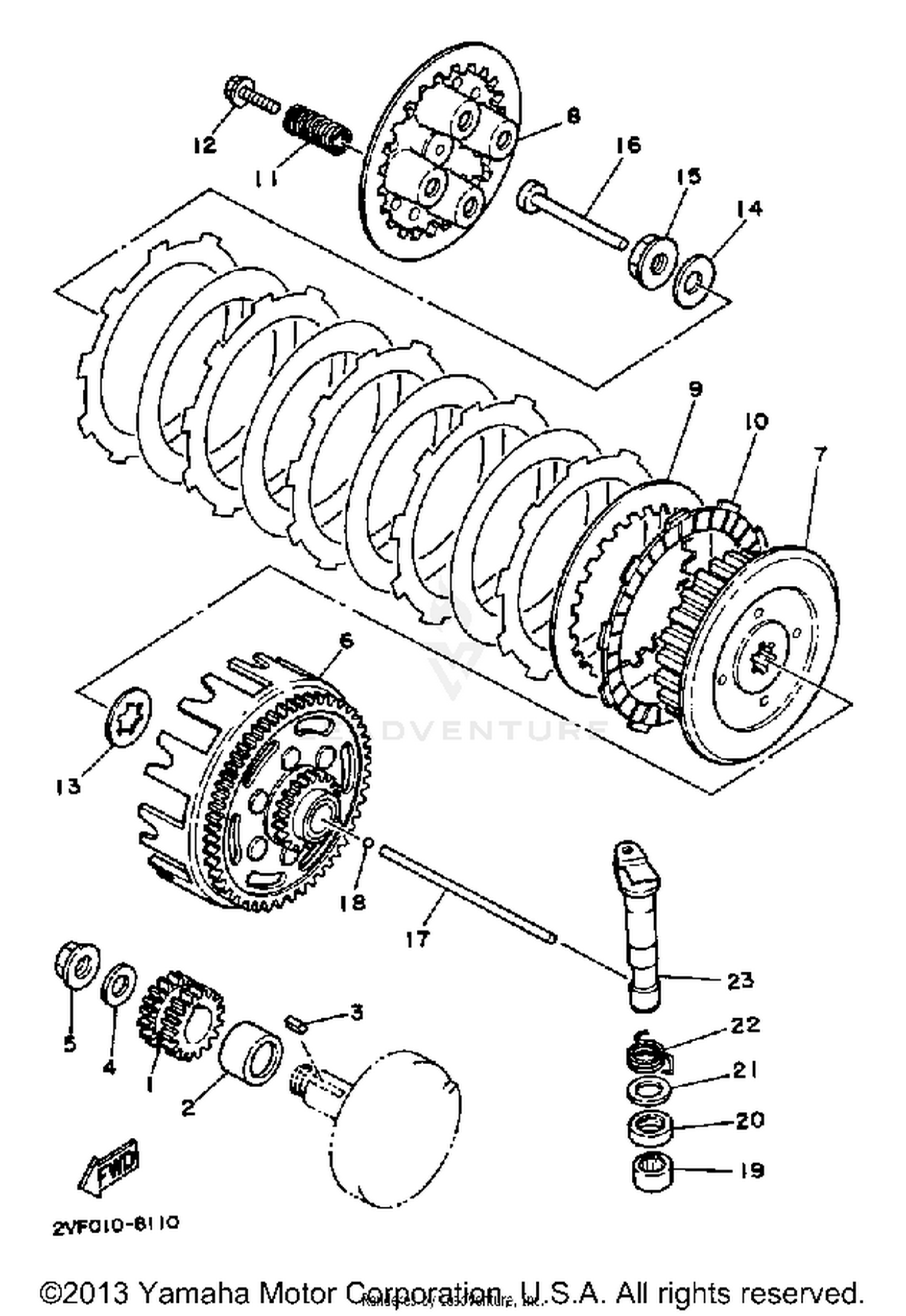

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRI DRIVE
1LR-16111-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-202F0-00
|
$20.99 | ||
|
Unavailable |
|||
|
#3
KEY, STRAIGHT (5MMX16MM)
90282-05001-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SPECL SHAPE
90179-12335-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PRI DRUM GEAR
1LR-16150-00-00
Superseded by 1LR-16150-01-00
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOSS, CLUTCH
1LR-16371-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, PRESSURE 1
1LR-16351-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#9
PLATE, CLUTCH 1
257-16324-00-00
Superseded by 257-16324-10-00
|
$17.49 | ||
|
Unavailable |
|||
|
#10
PLATE, FRICTION
21V-16321-00-00
Superseded by 3XP-16321-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-204A0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, WITH WASHER
90159-05011-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, THRUST 1
4V0-16154-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.75 | ||
|
Unavailable |
|||
|
#15
NUT
90179-12244-00
Superseded by 90179-12659-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
ROD, PUSH 1
137-16356-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 2
2X3-16357-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BEARING
93315-21429-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93109-14021-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-14411-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SPRING, TORSION
90508-18463-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
AXLE, PUSH LEVER
58T-16382-00-00
|
$65.99 | ||
|
Unavailable |
|||
