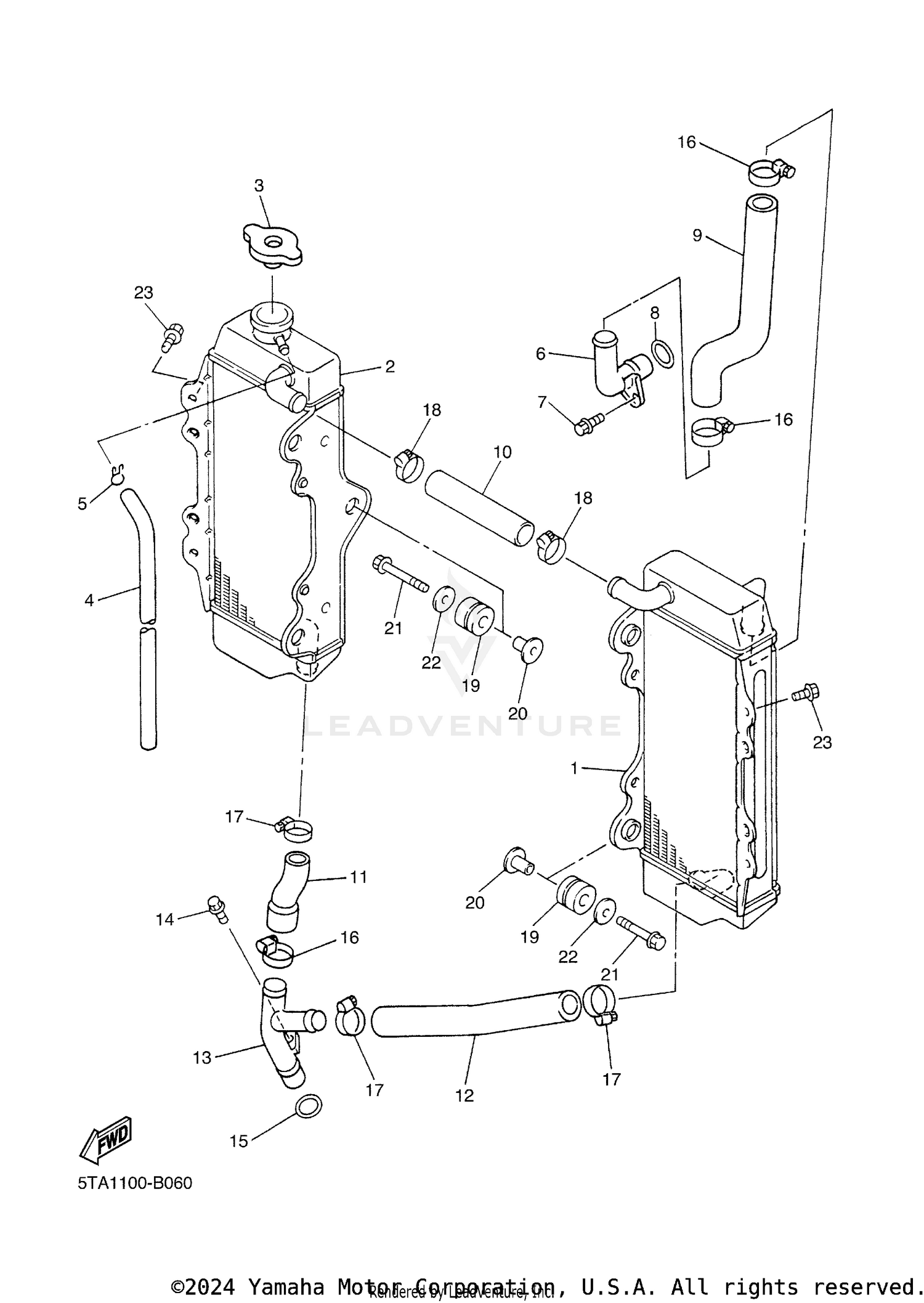

Radiator & Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY
5TA-1240A-00-00
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR ASSY
5TA-12461-00-00
|
$303.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RADIATOR
5HD-12462-00-00
Superseded by 4FL-12462-00-00
|
$68.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
TUBE, FLEXIBLE VINYL
91A20-05065-00
Superseded by 91A20-05080-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIPE 1
5TA-12481-00-00
Superseded by 2S2-12481-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-16500-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE 1
5TA-12576-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE 4
5SG-12579-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE 3
5TA-12578-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE 4
5TA-12579-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE 2
5TA-12482-00-00
Superseded by 5TJ-12482-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING
93210-16500-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
HOSE CLAMP ASSY
90450-28014-00
Superseded by 90450-28001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE CLAMP ASSY
90450-25037-00
Superseded by 90450-22M14-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$16.99 | ||
|
Unavailable |
|||
|
#19
GROMMET
90480-15528-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-06065-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-06571-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
