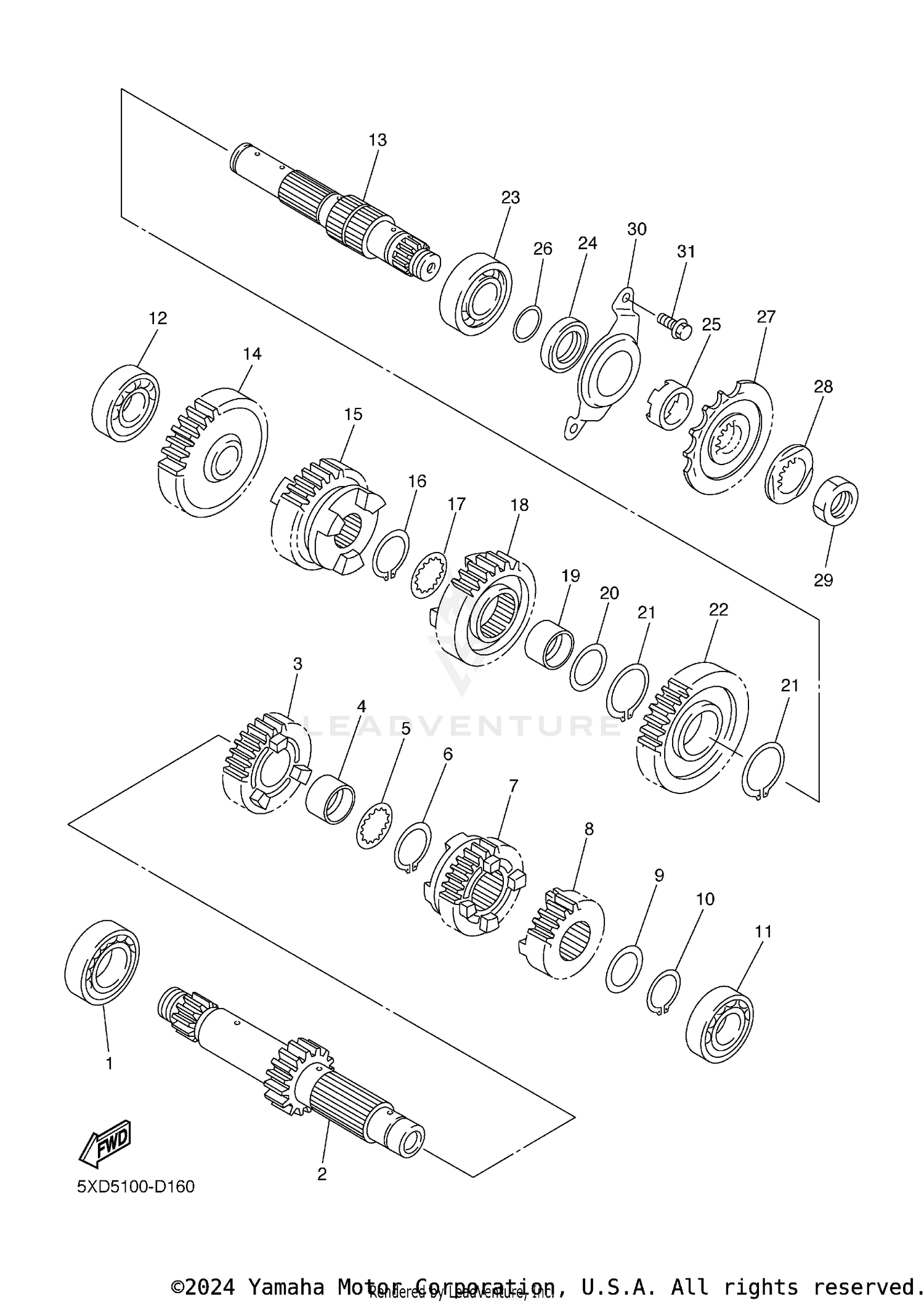

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93306-20532-00
|
$72.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
AXLE, MAIN (14T)
5TA-17411-20-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 4TH PINION (20T)
5TA-17141-20-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-25008-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
90209-21332-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GEAR, 3RD PINION (18T)
5TA-17131-20-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 2ND PINION (16T)
5TA-17121-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-206L6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99009-20400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BEARING
93306-00431-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-00426-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DRIVE AXLE ASSY
5TA-17402-10-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 1ST WHEEL (27T)
5TA-17211-10-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 4TH WHEEL (21T)
5TA-17241-10-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
Unavailable |
|||
|
#17
WASHER
90209-21332-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
GEAR, 3RD WHEEL (23T)
5TA-17231-10-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-25013-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-253G3-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
93440-30077-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
GEAR, 2ND WHEEL (25T)
5TA-17221-10-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93306-20593-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93102-32480-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
COLLAR
90387-2513F-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-22164-00
Superseded by 93210-22298-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SPROCKET, DRIVE (14T)
9383E-14215-00
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, LOCK
90215-21003-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
NUT
90179-20001-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE, COVER
5GR-17471-00-00
Superseded by 5GR-17471-10-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
90105-06553-00
Superseded by 95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
