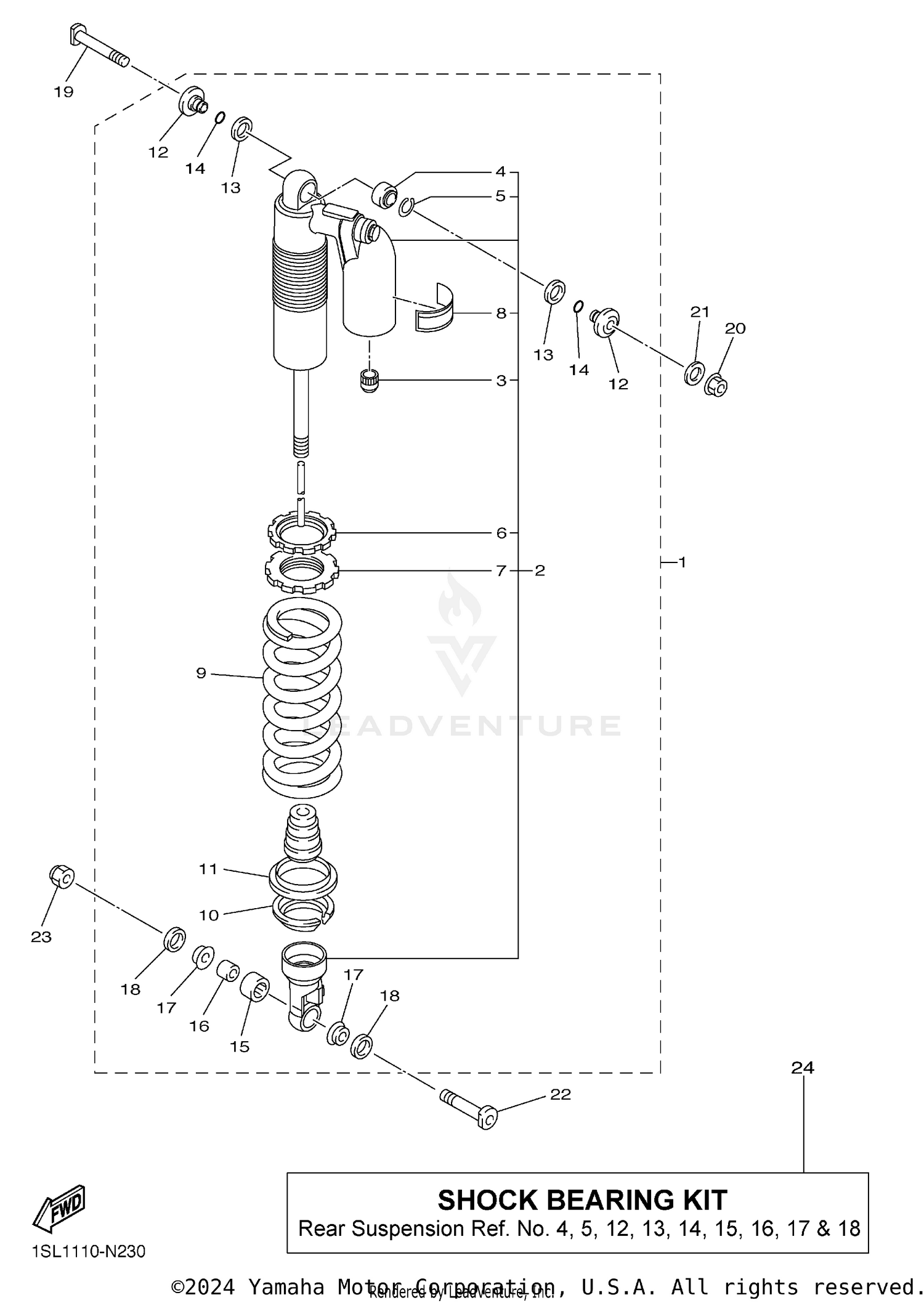

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
1SL-22200-00-00
|
$961.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHOCK ABSORBER ASSY, REAR
1SL-22200-10-00
|
$961.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER SUB ASSY
1SL-22201-00-00
|
$819.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, AIR VALVE
509-23184-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, SHOCK ABSORBER LOWER
4JX-22226-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
5DH-23183-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, SPRING 3
33D-22234-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT, SPRING UPPER
1SL-22213-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, WARNING
4AA-22259-80-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING (K=58 BLUE)
1SL-22212-00-00
|
$298.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING (K=58 RED)
1SL-22212-10-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, SPRING 1
33D-22214-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE, SPRING 2
33D-22224-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, DISTANCE
1C3-22253-50-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, DUST
3JE-22475-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, RING
4EW-22474-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
5UN-22176-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH
5MV-22184-00-00
|
$28.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COLLAR, DISTANCE
1C3-22253-L1-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL, DUST
5NY-22475-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT 2
5XE-22242-00-00
Superseded by 5XE-22242-01-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, PLAIN
92902-10200-00
Superseded by 92990-10200-00
|
$3.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT 1
5NY-22241-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SHOCK BEARING KIT
1SS-W002G-00-00
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
