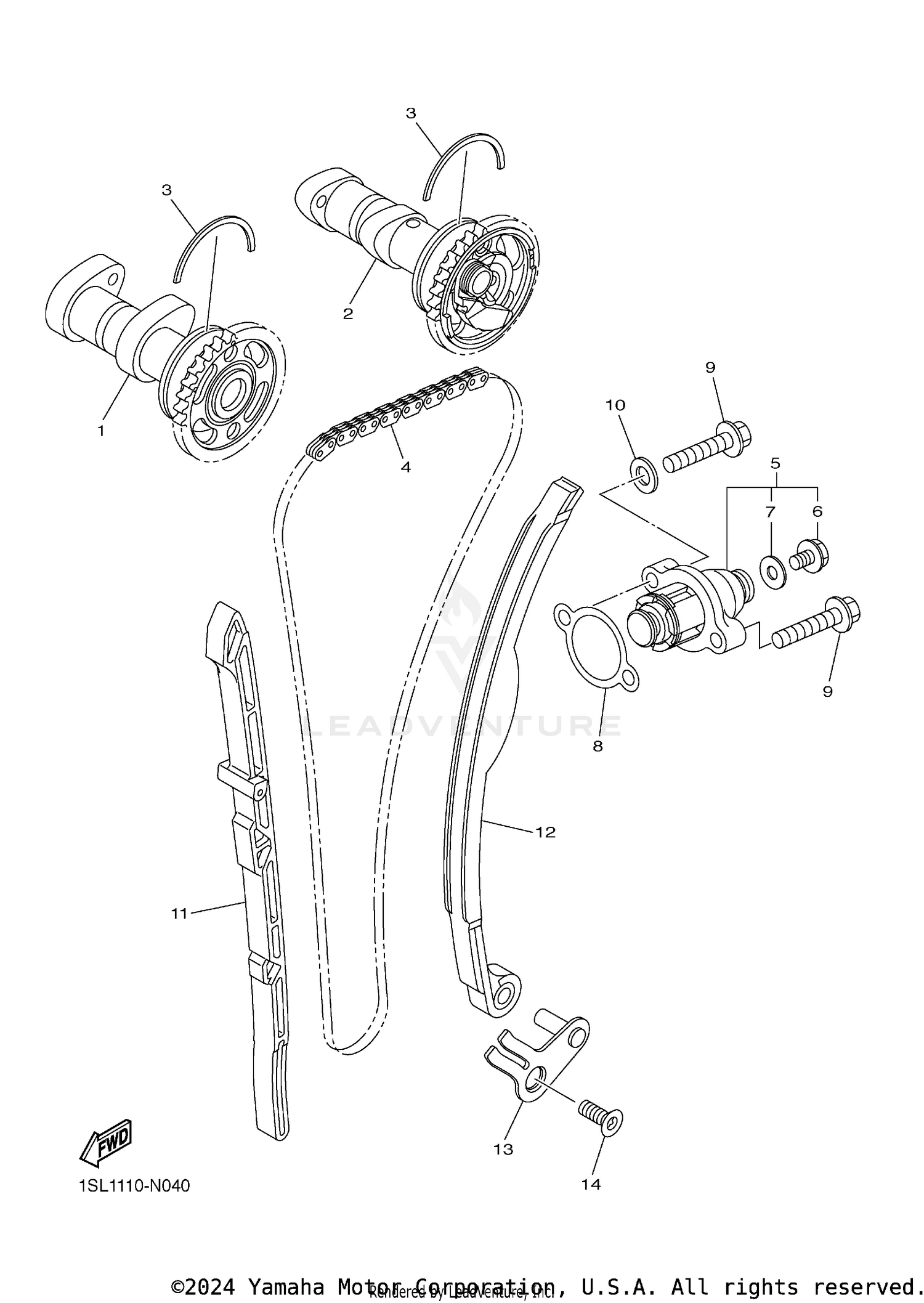

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
1SL-12170-00-00
|
$280.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT ASSY 2
1SL-12180-00-00
|
$343.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-41178-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CHAIN
94591-57122-00
|
$40.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
TENSIONER ASSY, CAM CHAIN
5TA-12210-30-00
|
$139.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT
5EL-12228-00-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
5EL-12214-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, TENSIONER CASE
4FM-12213-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-06148-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
DAMPER, CHAIN 1
33D-12251-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, CHAIN 2
33D-12252-00-00
Superseded by 33D-12252-01-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, GUIDE STOPPER 1
1SL-12233-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, COUNTERSUNK
90151-06024-00
Superseded by 90151-06023-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
