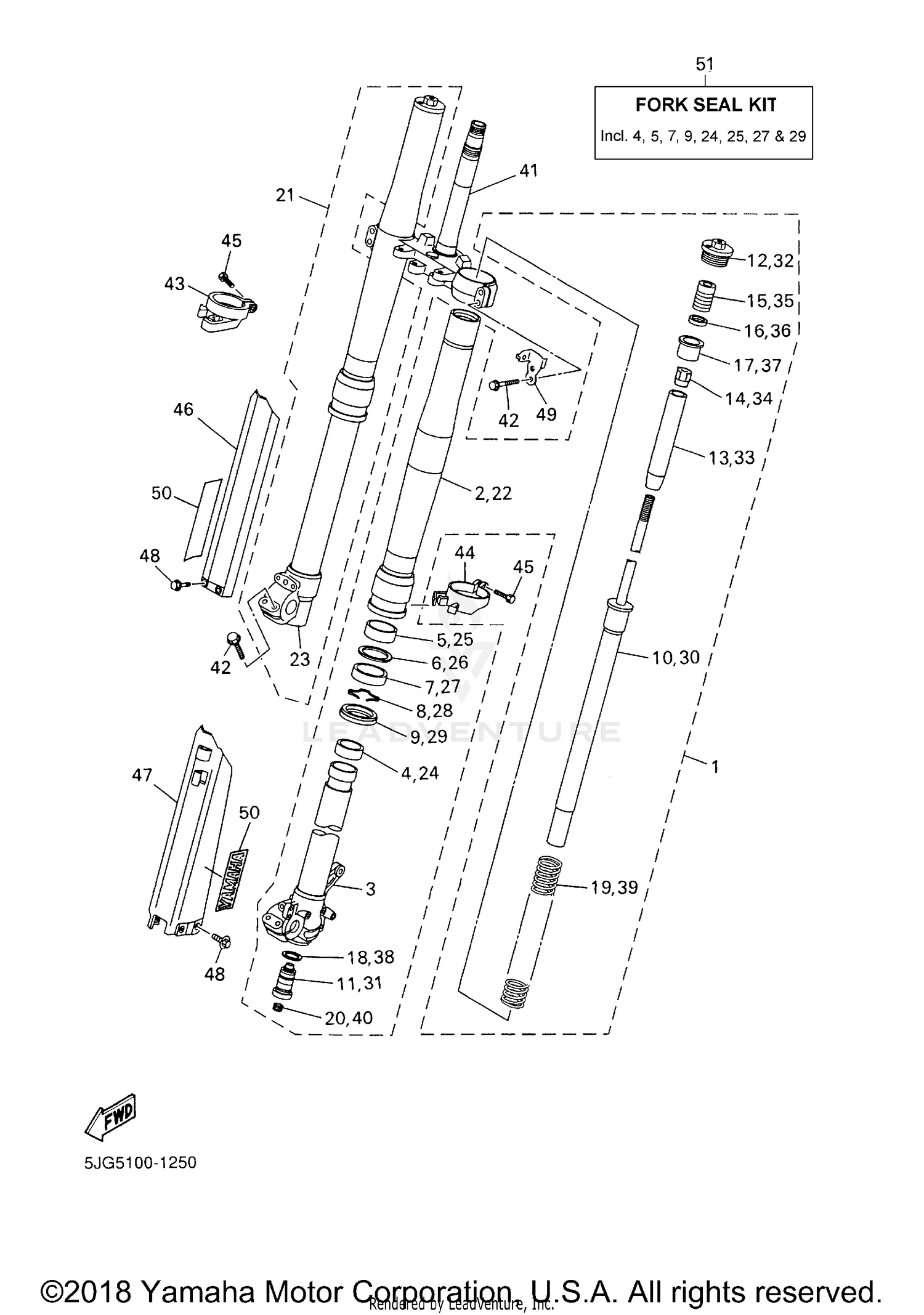

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
5TA-23102-00-00
|
$1,283.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (RIGHT)
5TA-23136-L0-00
|
$705.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE COMP. 2
5DH-23120-L0-00
|
$434.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
5ET-23171-L0-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
5ET-23125-L0-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
5UN-23146-L0-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
5UN-23145-L0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
5ET-23145-L0-00
Superseded by 5UN-23145-L0-00
|
$24.99 | ||
|
Unavailable |
|||
|
#8
RING, SNAP
4SS-23153-L0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
5HD-23144-L0-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
5TA-23170-L0-00
|
$561.99 | ||
|
Unavailable |
|||
|
#11
VALVE COMP.
5TA-2316A-L0-00
|
$278.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, CAP
5UN-23111-L0-00
|
$271.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAT, SPRING UPPER
5DH-23142-L0-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SPECIAL
5HD-23393-L0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER
5MV-23195-L0-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, SPRING UPPER
5DH-23149-L0-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
5DH-23118-L0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
4SS-23158-L0-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SPRING (K=4.51N/MM)
5GR-23141-L0-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, HOLE
3JD-2312G-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
FRONT FORK ASSY (R.H)
5TA-23103-00-00
|
$1,283.99 | ||
|
Unavailable |
|||
|
#22
TUBE, OUTER (RIGHT)
5TA-23136-L0-00
|
$705.99 | ||
|
Unavailable |
|||
|
#23
INNER TUBE COMP. 1
5BF-23110-L0-00
|
$481.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PISTON, FRONT FORK
5ET-23171-L0-00
|
$23.99 | ||
|
Unavailable |
|||
|
#25
METAL, SLIDE 1
5ET-23125-L0-00
|
$38.99 | ||
|
Unavailable |
|||
|
#26
WASHER, OIL SEAL
5UN-23146-L0-00
|
$17.99 | ||
|
Unavailable |
|||
|
#27
OIL SEAL
5ET-23145-L0-00
Superseded by 5UN-23145-L0-00
|
$24.99 | ||
|
Unavailable |
|||
|
#27
OIL SEAL
5UN-23145-L0-00
|
$24.99 | ||
|
Unavailable |
|||
|
#28
RING, SNAP
4SS-23153-L0-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
SEAL, DUST
5HD-23144-L0-00
|
$33.99 | ||
|
Unavailable |
|||
|
#30
CYLINDER COMP., FRONT FORK
5TA-23170-L0-00
|
$561.99 | ||
|
Unavailable |
|||
|
#31
VALVE COMP.
5TA-2316A-L0-00
|
$278.99 | ||
|
Unavailable |
|||
|
#32
BOLT, CAP
5UN-23111-L0-00
|
$271.31 | ||
|
Unavailable |
|||
|
#33
SEAT, SPRING UPPER
5DH-23142-L0-00
|
$41.99 | ||
|
Unavailable |
|||
|
#34
NUT, SPECIAL
5HD-23393-L0-00
|
$30.99 | ||
|
Unavailable |
|||
|
#35
RUBBER
5MV-23195-L0-00
|
$33.99 | ||
|
Unavailable |
|||
|
#36
WASHER, SPRING UPPER
5DH-23149-L0-00
|
$27.99 | ||
|
Unavailable |
|||
|
#37
SPACER
5DH-23118-L0-00
|
$24.99 | ||
|
Unavailable |
|||
|
#38
GASKET
4SS-23158-L0-00
|
$8.49 | ||
|
Unavailable |
|||
|
#39
SPRING (K=4.51N/MM)
5GR-23141-L0-00
|
$96.99 | ||
|
Unavailable |
|||
|
#40
PLUG, HOLE
3JD-2312G-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#41
UNDER BRACKET COMP.
5UP-23340-L0-00
|
$586.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT 1
5NY-23346-L0-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#43
PROTECTOR GUIDE COMP., 2
4SS-2314G-L0-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
PROTECTOR GUIDE COMP., 1
5DH-2314F-L0-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT 1
4SS-23346-L0-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
PROTECTER COMP., 2
5TA-2314J-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
PROTECTOR COMP., 1
5TA-2314H-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT 2
3SP-23356-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
GUIDE, CABLE
5HC-2331E-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
FORK SEAL KIT
5ET-W003B-00-00
|
$91.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
