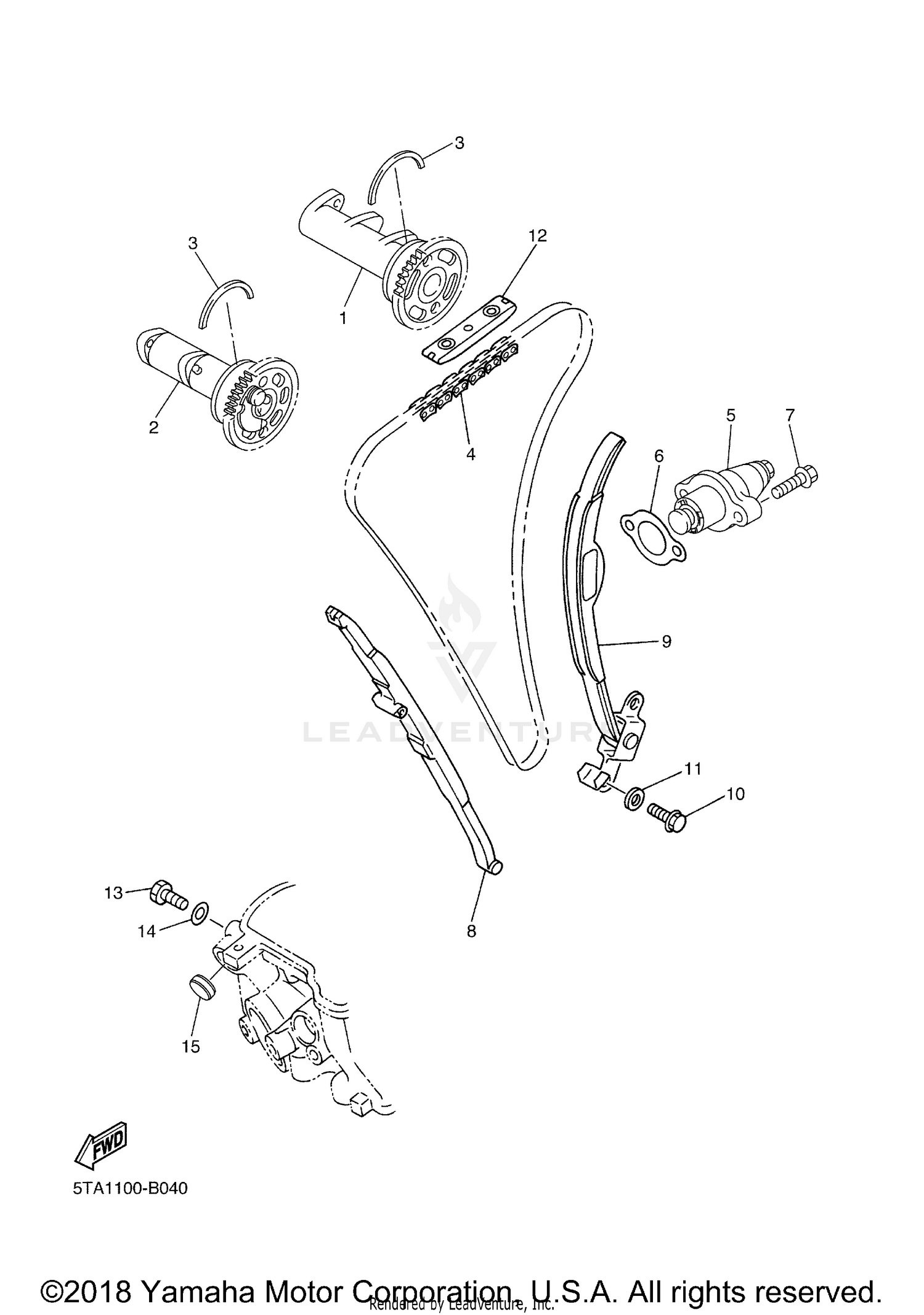

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
5TA-12170-00-00
Superseded by 5TA-12170-10-00
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT ASSY 2
5TA-12180-00-00
Superseded by 5TA-12180-10-00
|
$342.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-41178-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CHAIN (98XRH2010-118M)
94591-57118-00
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
TENSIONER ASSY, CAM CHAIN
5TA-12210-00-00
Superseded by 5TA-12210-10-00
|
$146.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GASKET, TENSIONER CASE
4FM-12213-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
DAMPER, CHAIN 1
5TA-12251-01-00
Superseded by 5TA-12251-02-00
|
$58.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
DAMPER, CHAIN 2
5TA-12252-00-00
Superseded by 5TA-12252-01-00
|
$99.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
97027-06016-00
Superseded by 97017-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT
90109-06418-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PLUG
90338-18064-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
