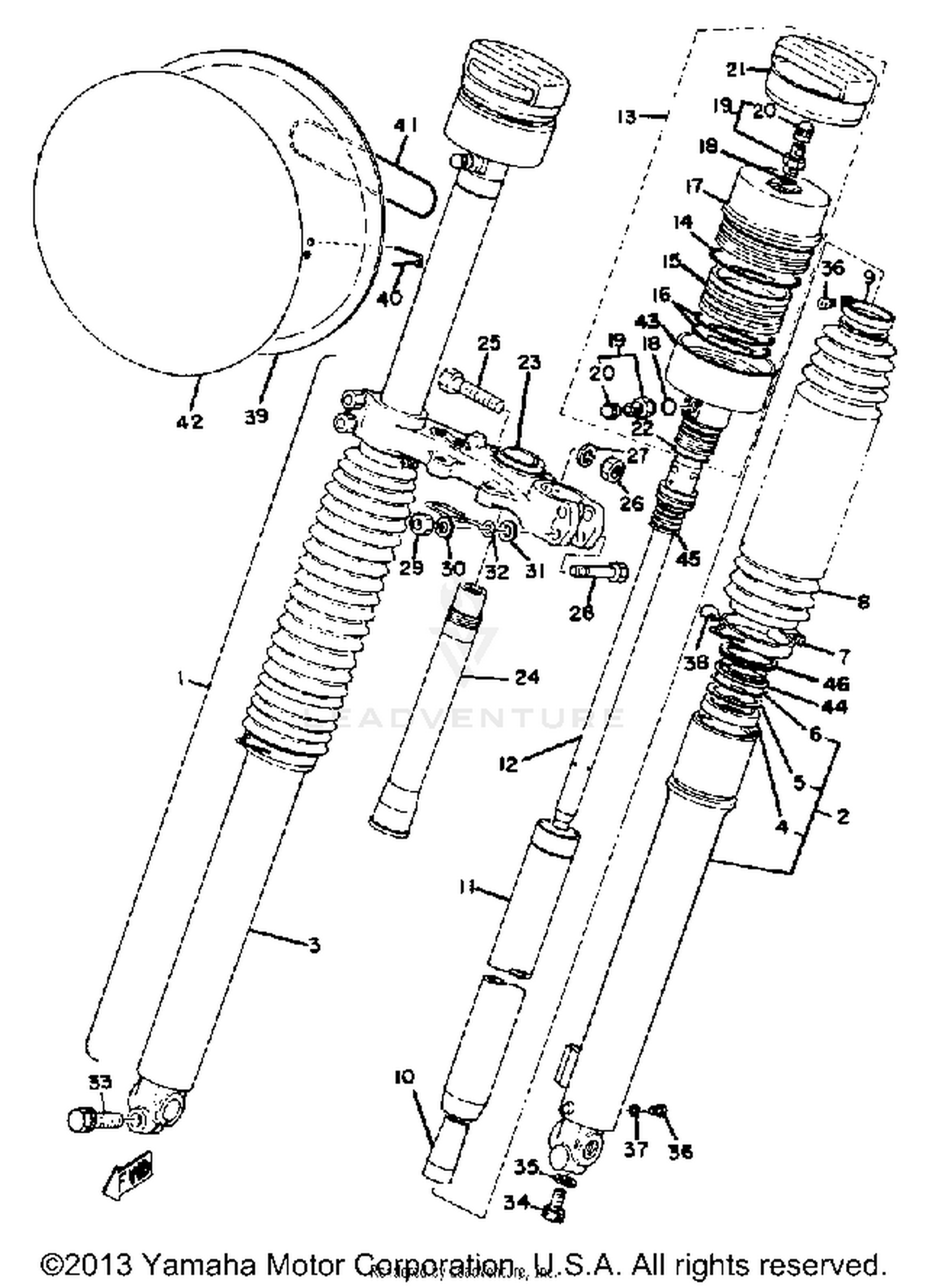

Front Fork Yz400c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
509-23101-L1-00
|
$456.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
509-23126-L1-00
|
$114.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
509-23136-L1-00
|
$114.99 | ||
|
Unavailable |
|||
|
#
OIL SEAL
509-23145-L0-00
|
$15.48 | ||
|
Unavailable |
|||
|
#5
WASHER, OIL SEAL
509-23146-L0-00
|
$3.57 | ||
|
Unavailable |
|||
|
#6
CLIP, OIL SEAL
509-23156-L0-00
|
$2.37 | ||
|
Unavailable |
|||
|
#7
HOLDER, CABLE 1
583-23318-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#8
BOOT, FRONT FORK
509-23191-L1-00
|
$28.99 | ||
|
Unavailable |
|||
|
#9
BAND, BOOT
341-92090-60-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPINDLE, TAPER
509-23173-L0-00
|
$4.56 | ||
|
Unavailable |
|||
|
#11
INNER TUBE 1
509-23110-L1-00
|
$107.99 | ||
|
Unavailable |
|||
|
#12
CYLINDER, FRTFRK
509-23170-L1-00
|
$26.99 | ||
|
Unavailable |
|||
|
#13
CHAMBER ASSEMBLY
509-23180-L1-00
|
$133.99 | ||
|
Unavailable |
|||
|
#14
O-RING
509-23188-L0-00
|
$4.15 | ||
|
Unavailable |
|||
|
#15
FREE-PISTON, FRONT FORK
509-23189-L0-00
|
$11.66 | ||
|
Unavailable |
|||
|
#16
O-RING
509-23147-L0-00
|
$4.15 | ||
|
Unavailable |
|||
|
#17
CAP, CHAMBER
509-23187-L0-00
|
$12.80 | ||
|
Unavailable |
|||
|
#18
O-RING
509-23163-L0-00
|
$3.75 | ||
|
Unavailable |
|||
|
#19
AIR VALVE
509-23190-L0-00
|
$18.99 | ||
|
Unavailable |
|||
|
#20
CAP, AIR VALVE
509-23184-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, VALVE
509-23185-L1-00
|
$9.99 | ||
|
Unavailable |
|||
|
#22
GASKET
240-23114-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
UNDER BRACKET
2H1-23340-00-33
|
$177.99 | ||
|
Unavailable |
|||
|
#24
SHAFT, STEERING
1E6-23341-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#25
BOLT 2
322-23356-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#26
NUT
322-23357-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING
92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT
90101-08340-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, HEXAGON
90170-08180-00
|
$1.74 | ||
|
Unavailable |
|||
|
#30
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOLDER, CABLE 2
509-23319-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#33
BOLT 1 (90119-08011)
J60-23346-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET
509-23158-L0-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN HEAD
98580-04008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
GASKET, DRAIN PLUG
122-23129-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOLDER
509-26393-00-00
|
$2.00 | ||
|
Unavailable |
|||
|
#39
PLATE, NUMBER
322-23485-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#40
STAY, PLATE
431-23486-02-00
|
$5.99 | ||
|
Unavailable |
|||
|
#41
O-RING
93210-99103-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
EMBLEM
322-23395-00-00
|
$13.72 | ||
|
Unavailable |
|||
|
#43
CASE, CHAMBER
509-23186-L1-00
|
$39.46 | ||
|
Unavailable |
|||
|
#44
SEAL, DUST
509-23144-L0-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPRING, REBOUND
509-23151-L0-00
|
$16.99 | ||
|
Unavailable |
|||
|
#
SEAL, DUST
509-23144-L0-00
|
$23.99 | ||
|
Unavailable |
|||
|
#46
COVER, DUST SEAL
509-23148-L0-00
|
$5.24 | ||
|
Unavailable |
|||
