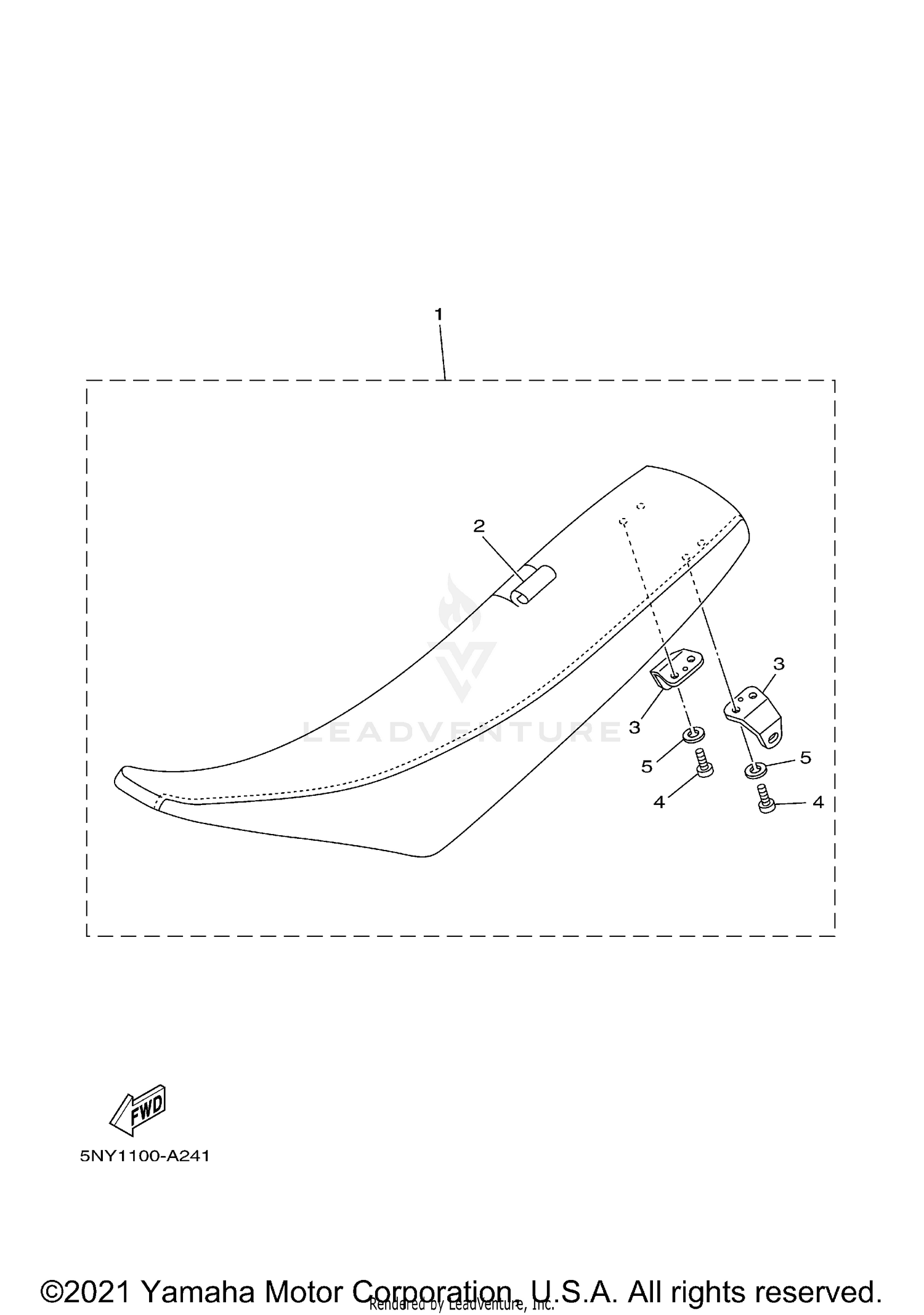

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEMI-DOUBLE SEAT ASSY
1C3-24770-H1-00
Superseded by 1C3-24770-H2-00
|
$234.99 | ||
|
Unavailable |
|||
|
#2
SEAT COVER COMP.
1C3-2470F-H0-00
Superseded by 1C3-2470F-H1-00
|
$145.99 | ||
|
Unavailable |
|||
|
#3
BRACKET, SEAT
5NY-24728-10-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
97002-06012-00
Superseded by 97013-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92902-06100-00
Superseded by 92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
