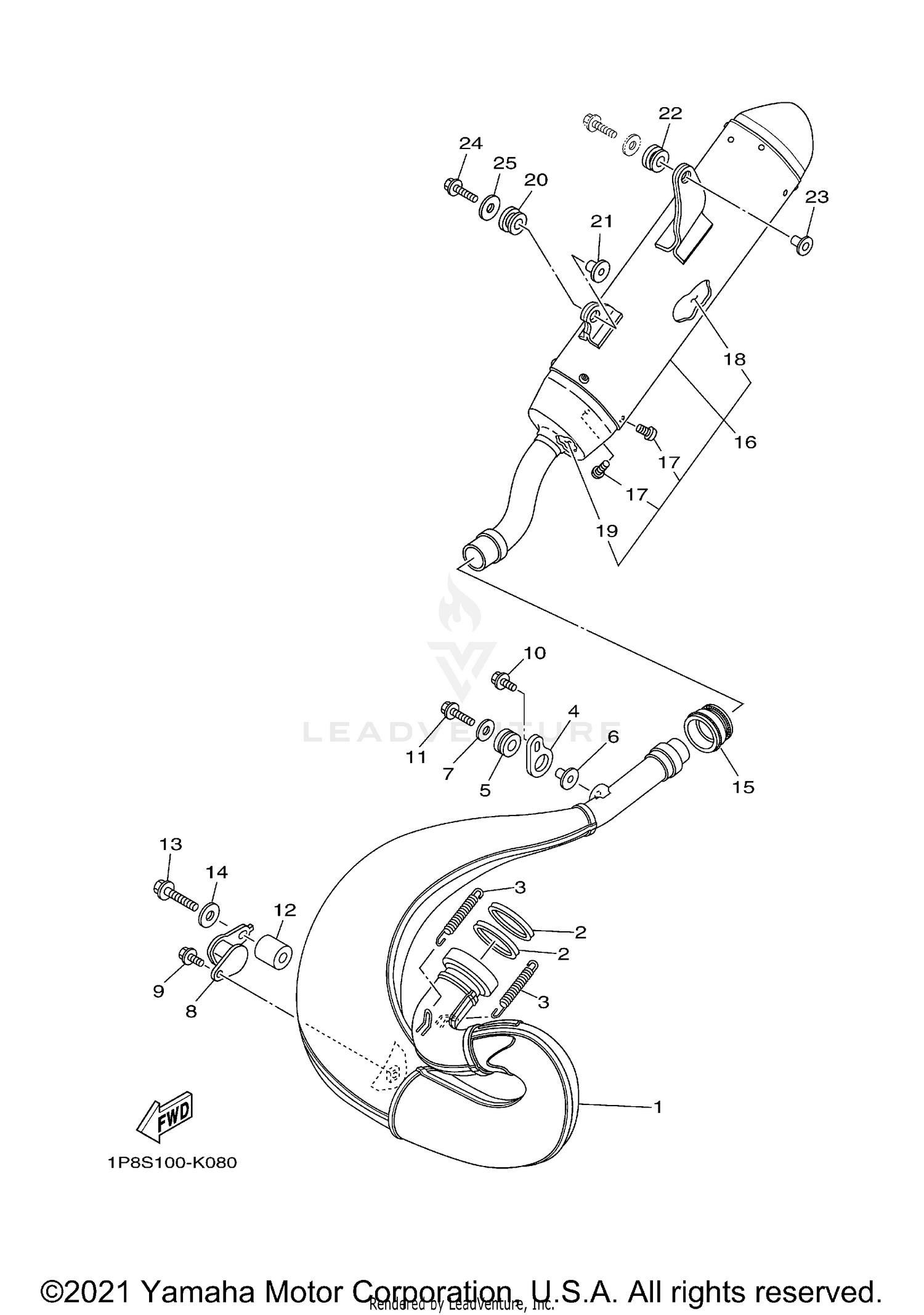

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
1P8-14610-00-00
|
$535.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, EXHAUST
5MW-14642-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SPRING, TENSION
90507-20052-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
STAY, MUFFLER 1
5CU-14771-01-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GROMMET
90480-16561-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COLLAR
90387-063G3-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06033-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
STAY, MUFFLER 2
5XF-14781-00-00
Superseded by 5XF-14781-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06133-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06133-00
|
$6.49 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
95022-06025-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-08030-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-08136-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08049-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
JOINT, EXHAUST 1
3JE-14615-01-00
|
$60.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SILENCER, EXHAUST
1P8-14753-00-00
|
$686.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BUTTON HEAD
92012-06010-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
FIBER
1P8-1469A-00-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FIBER
1P8-1469E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-17004-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-06121-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET
90480-16404-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
COLLAR
90387-06039-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE
95022-06030-00
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-06086-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
