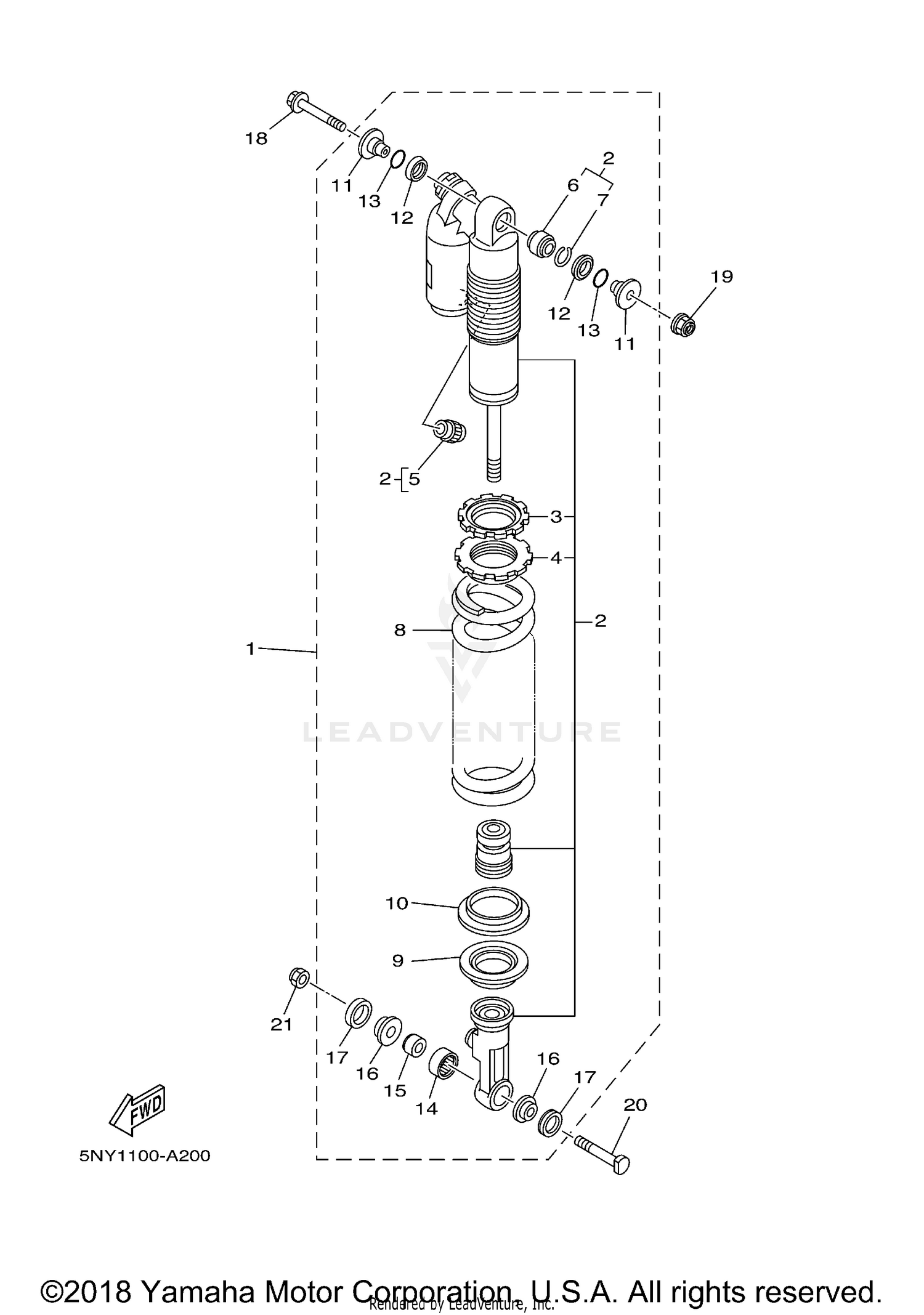

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
5UP-22210-00-00
|
$1,163.99 | ||
|
Unavailable |
|||
|
#2
DAMPER SUB ASSY
5UP-22201-00-00
|
$1,413.99 | ||
|
Unavailable |
|||
|
#3
GUIDE, SPRING 3
3SP-22234-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING UPPER
3SP-22213-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, AIR VALVE
509-23184-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, SHOCK ABSORBER LOWER
4JX-22226-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
5DH-23183-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING (K=48N/MM)
5UN-22212-30-00
|
$295.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, SPRING 1
5DH-22214-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, SPRING 2
5MV-22224-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, DISTANCE
5DH-22253-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, DUST
3JE-22475-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, RING
4EW-22474-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
5UN-22176-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH
5MV-22184-00-00
|
$28.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COLLAR, DISTANCE
5MV-22253-00-00
|
$18.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SEAL, DUST
5NY-22475-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, WASHER BASED
90105-10323-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT 1
5NY-22241-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SELF-LOCKING
90185-10091-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
