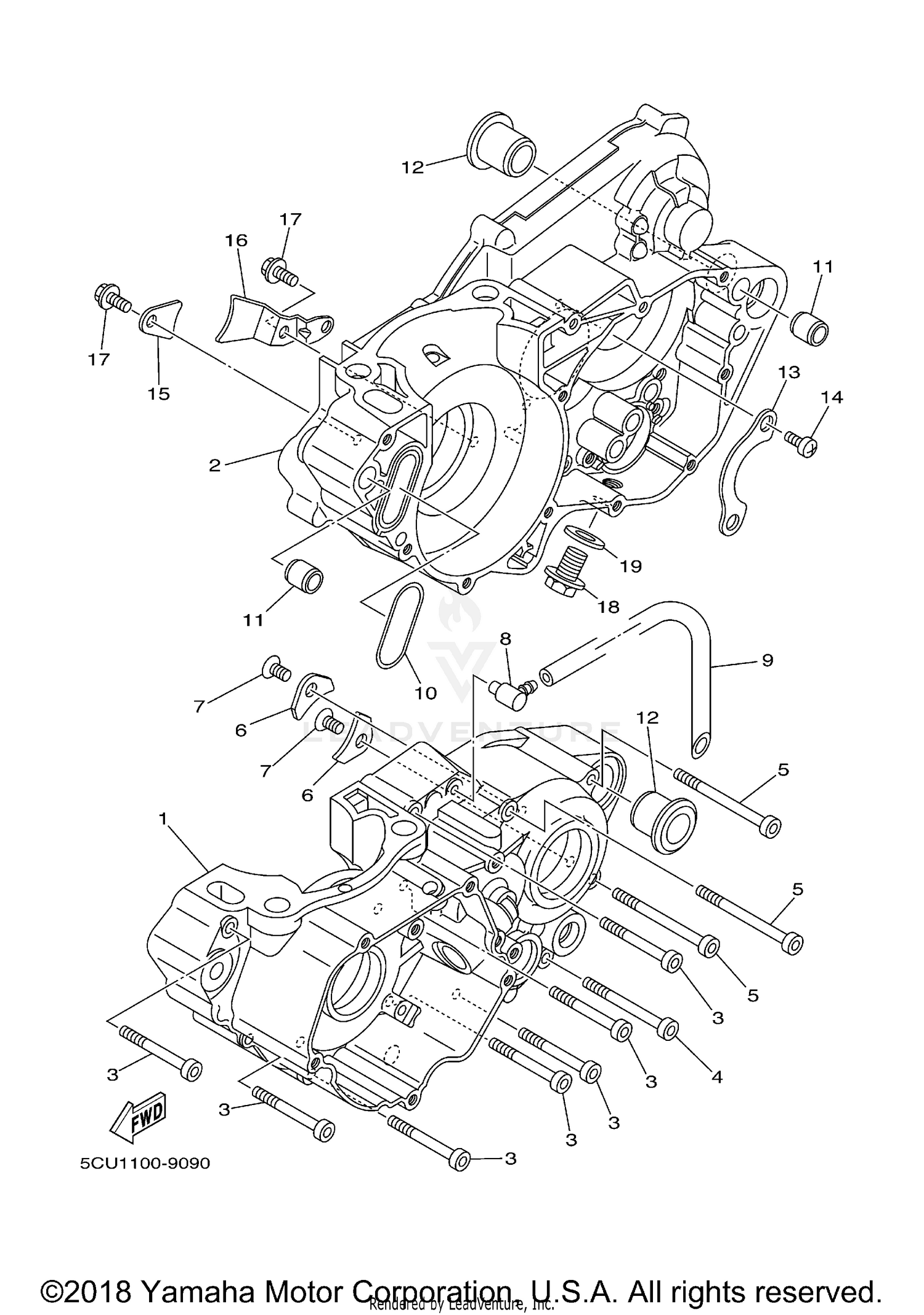

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
5NX-15111-00-00
Superseded by 5NX-15111-02-00
|
$1,118.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANKCASE 2
5NX-15121-00-00
Superseded by BF1-15121-01-00
|
$1,101.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91317-06050-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91317-06060-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, HEX. SOCKET HEAD
91317-06070-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BEARING COVER
4JT-15381-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
90149-06326-00
Superseded by 90151-06052-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR, SUCTION PIPE
353-13115-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE
90445-08376-00
Superseded by 90445-08684-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET 1
5CU-15454-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
93612-16254-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COLLAR
90387-18007-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, COVER
4L0-17471-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW,PAN
90157-06077-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER
4V4-15118-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER
5CU-15118-00-00
Superseded by 5CU-15118-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-06556-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PLUG, STRAIGHT SCREW
90340-12059-00
Superseded by 90340-12006-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
GASKET
90430-12227-00
Superseded by 90430-12207-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
