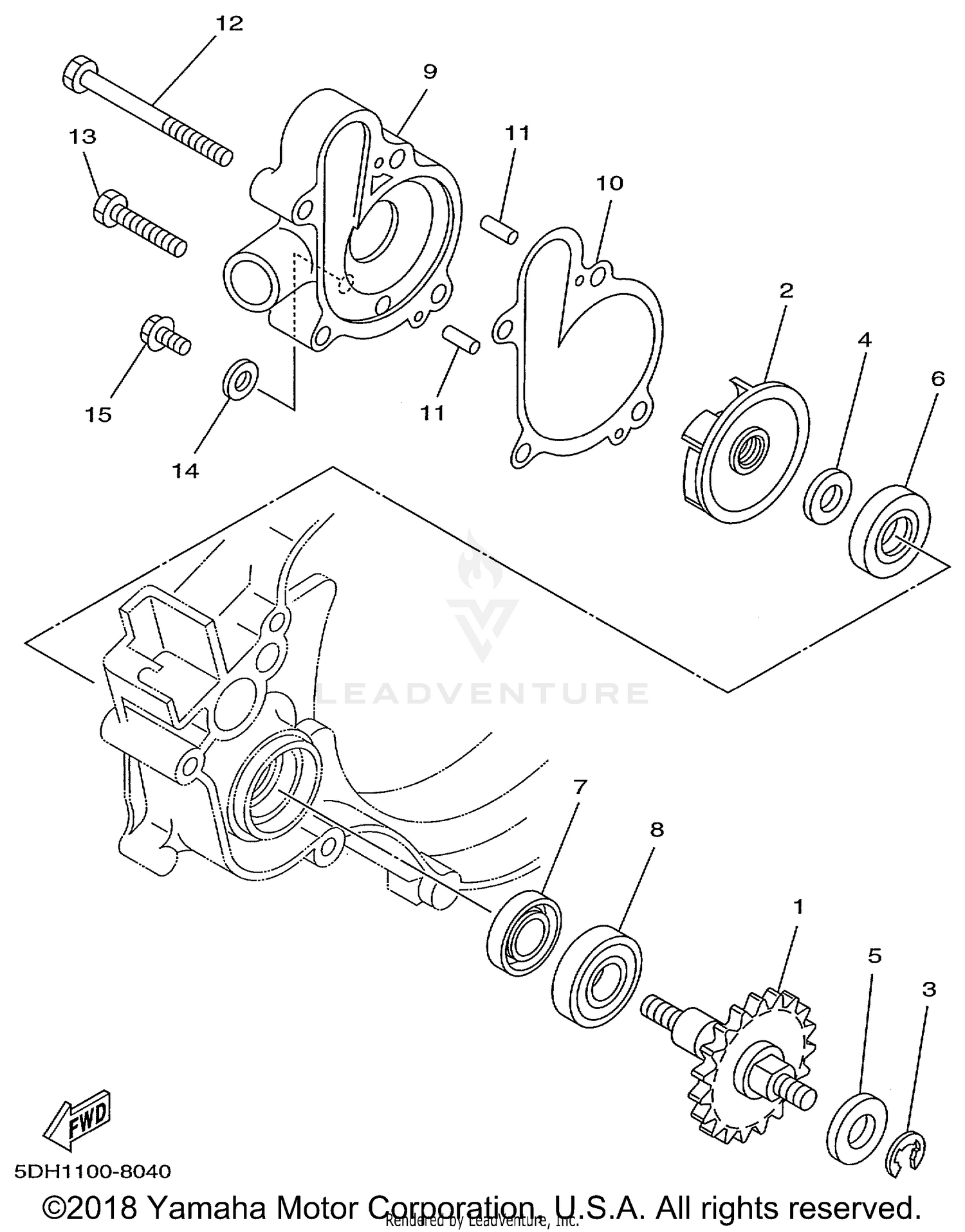

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IMPELLER SHAFT
5DH-12459-01-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
IMPELLER, WATER PUMP
5DH-12451-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
99001-06600-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-083P5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-08784-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
OIL SEAL
93109-11073-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
OIL SEAL (SD 12-22-5 HS)
93102-12106-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BEARING (B6001)
93306-00105-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
COVER, HOUSING
4JY-12422-00-00
Superseded by 4JY-12422-01-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, HOUSING COVER 2
4JY-12428-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
93604-10011-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE
95027-06065-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE
95027-06010-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
