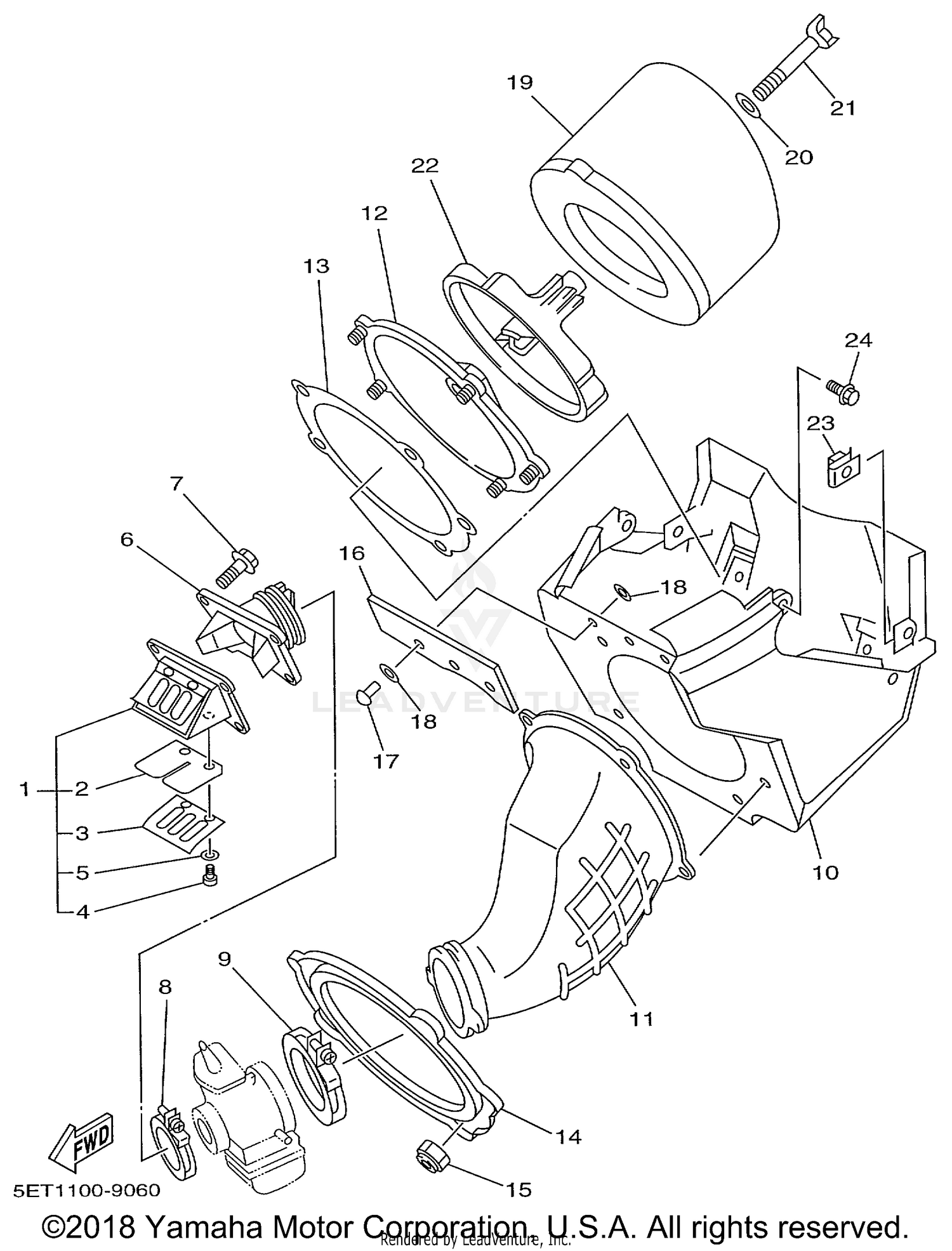

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSY
4SS-13610-00-00
|
$246.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REED, VALVE
4SS-13613-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
4JY-13616-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98507-03006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92907-03100-00
Superseded by 92990-03100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, CARBURETOR
5ET-13565-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95027-06020-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE CLAMP ASSY
90450-51070-00
Superseded by 90450-51001-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HOSE CLAMP ASSY
90450-70072-00
Superseded by 90450-70002-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
AIR CLEANER CASE ASSEMBLY
4SS-14401-02-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, AIR CLEANER 1
5ET-14453-00-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, GUIDE
3JD-14459-01-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL
3JD-14462-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE
3JD-14477-00-00
Superseded by 5MV-14477-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER 1
4SS-14417-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#17
RIVET, BLIND
90267-32070-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-03313-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
ELEMENT, AIR CLEANER
4XM-14451-00-00
Superseded by 4XM-14451-01-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER
90209-06096-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, WING
90122-06035-00
Superseded by 90122-06005-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
GUIDE
3JD-14458-01-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SPRING
90183-06023-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, WITH WASHER
90119-06203-00
Superseded by 90119-06117-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
