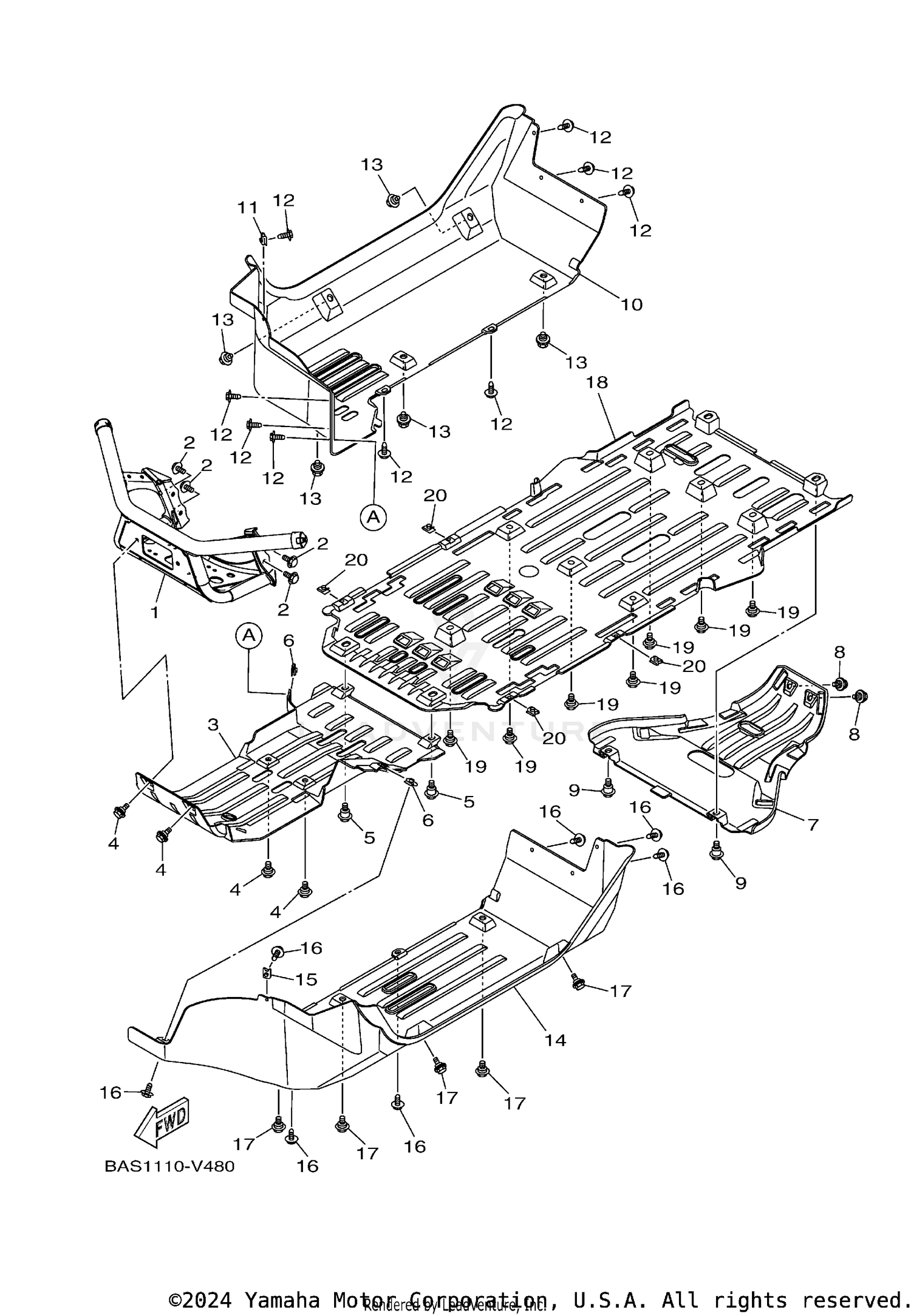

Guard Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, CARRY FRONT
BAS-F845N-00-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95812-10016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, LOWER
2HC-F8385-01-00
|
$101.99 | ||
|
Unavailable |
|||
|
#4
BOLT
90109-06202-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90109-068A7-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, UNDER
2HC-F2863-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-06202-00
|
$3.10 | ||
|
Unavailable |
|||
|
#9
BOLT
90109-068A7-00
|
$2.30 | ||
|
Unavailable |
|||
|
#10
GUARD 1
2HC-F2361-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-06202-00
|
$3.10 | ||
|
Unavailable |
|||
|
#14
GUARD 2
2HC-F2362-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#16
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#17
BOLT
90109-06202-00
|
$3.10 | ||
|
Unavailable |
|||
|
#18
GUARD, ENGINE 1
2HC-F8418-03-00
|
$129.99 | ||
|
Unavailable |
|||
|
#19
BOLT
90109-06202-00
|
$3.10 | ||
|
Unavailable |
|||
|
#20
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Unavailable |
|||
