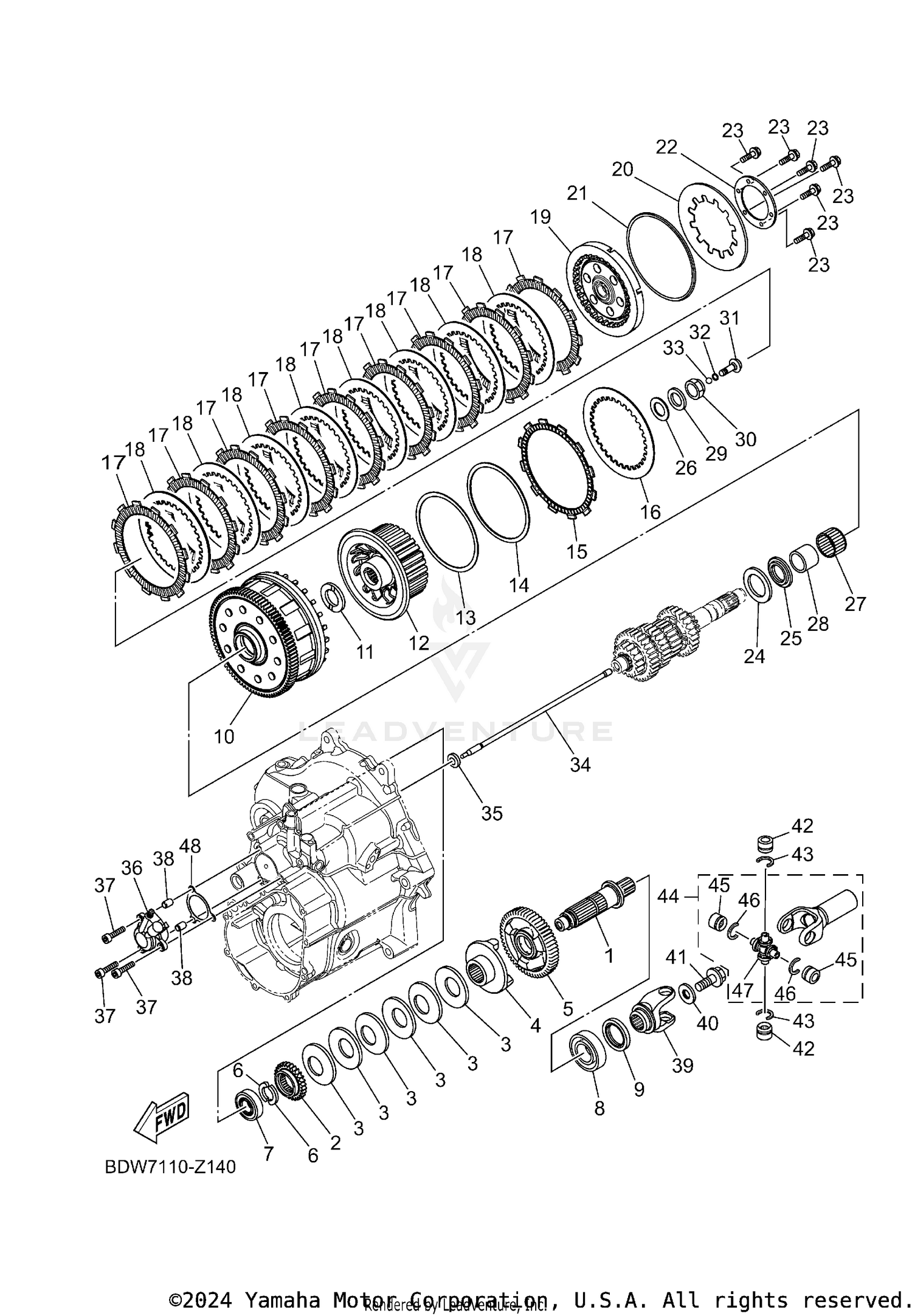

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT 2
2HC-11465-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVE
2HC-13324-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, DAMPER
2HC-16318-01-00
|
$23.99 | ||
|
Unavailable |
|||
|
#4
CAM, DAMPER 1
2HC-16317-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, PRIMARY DRIVE
2HC-16111-00-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, THRUST
23P-17529-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-20483-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-30525-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93102-35039-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PRIMARY DRIVEN GEAR COMP.
BDW-16150-00-00
|
$595.99 | ||
|
Unavailable |
|||
|
#11
PLATE, THRUST 1
BDW-16154-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#12
BOSS, CLUTCH
BDW-16371-00-00
|
$175.99 | ||
|
Unavailable |
|||
|
#13
PLATE, SEAT (T=1.7)
2D2-16384-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, CLUTCH BOSS
3P6-16383-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, FRICTION 2
1PK-16331-00-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLATE, CLUTCH 2
2H7-16325-20-00
|
$13.49 | ||
|
Unavailable |
|||
|
#17
PLATE, FRICTION
5YU-16321-00-00
|
$28.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PLATE, CLUTCH 1
2H7-16324-20-00
|
$26.99 | ||
|
Unavailable |
|||
|
#19
PRESSURE PLATE ASSY
2HC-16350-01-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, CLUTCH 2
36Y-16334-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOUSING, SPRING
36Y-16335-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, PRESSURE 2
1TX-16352-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE DEEP RECESS
95D32-06025-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING.,ABSORBER
BDW-16587-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#25
SPACER 3
BDW-16183-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
90201-22013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93310-33560-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER 1
2HC-16181-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, CONICAL SPRING
90208-22003-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-22010-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
ROD, PUSH 1
4KG-16356-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING
93210-06632-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BALL
93511-32017-00
Superseded by 93511-32027-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
ROD, PUSH 2
BDW-16357-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#35
OIL SEAL
93109-08061-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
PUSH LEVER COMP.
5YU-16381-10-00
|
$165.99 | ||
|
Unavailable |
|||
|
#37
BOLT
90110-06246-00
Superseded by 90110-06138-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#39
YOKE, JOINT 2
2HC-46147-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-121H0-00
Superseded by 90201-12191-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
BOLT, FLANGE
90105-12094-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BEARING
93399-99948-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CIRCLIP, OUTER
93440-20088-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
CROSS JOINT COMP. 3
2HC-46108-00-00
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BEARING
93399-99948-00
|
$60.99 | ||
|
Unavailable |
|||
|
#46
CIRCLIP, OUTER
93440-20088-00
|
$9.49 | ||
|
Unavailable |
|||
|
#47
SPIDER
2HC-46187-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
GASKET
2HC-17472-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
