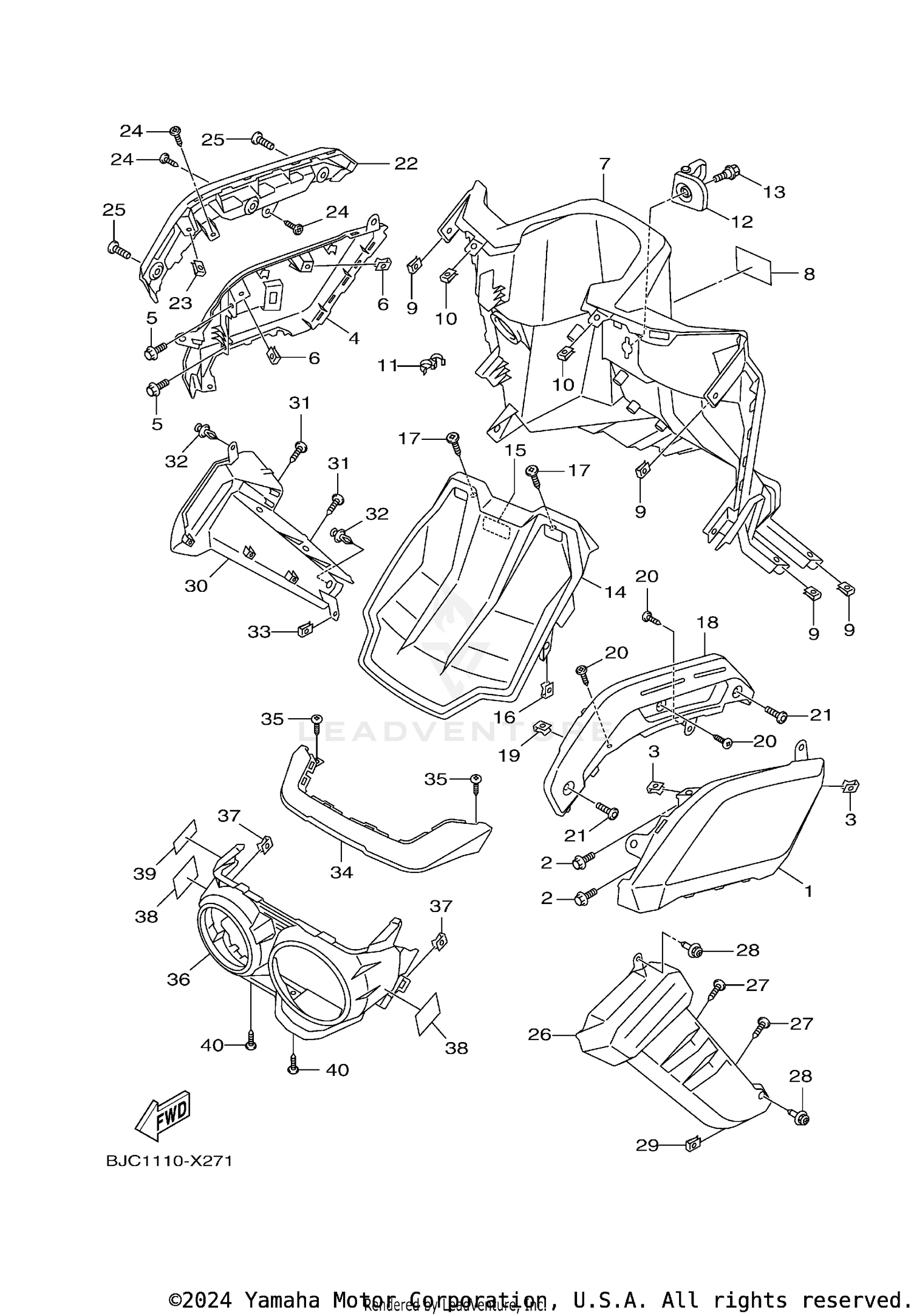

Leg Shield Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY, COWLING
BBJ-F8351-00-P4
|
$39.99 | ||
|
Unavailable |
|||
|
#1
BODY, COWLING
BBJ-F8351-00-P6
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, WITH WASHER
90119-06821-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SPRING
90183-05827-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
BODY, COWLING 2
BBJ-F8377-00-P6
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BODY, COWLING 2
BBJ-F8377-00-P4
|
$39.99 | ||
|
Unavailable |
|||
|
#5
BOLT, WITH WASHER
90119-06821-00
|
$1.80 | ||
|
Unavailable |
|||
|
#6
NUT, SPRING
90183-05827-00
|
$1.65 | ||
|
Unavailable |
|||
|
#7
LEG SHIELD ASSY
BBJ-F8300-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, CAUTION 2
BJC-F839Y-00-00
|
$1.15 | ||
|
Unavailable |
|||
|
#9
NUT, SPRING
90183-06813-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SPRING
90183-05827-00
|
$1.65 | ||
|
Unavailable |
|||
|
#11
CLAMP
90464-30804-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOOK
1CF-F8379-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-068A0-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
MOLE 1
BBJ-F8345-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#15
LABEL, CAUTION
BJC-F4877-00-00
|
$1.15 | ||
|
Unavailable |
|||
|
#16
NUT, SPRING
90183-05827-00
|
$1.65 | ||
|
Unavailable |
|||
|
#17
TAPPING SCREW
90169-05001-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR 1
BBJ-F834V-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SPRING
90183-05827-00
|
$1.65 | ||
|
Unavailable |
|||
|
#20
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, HEX. SOCKET BUTTON
90111-06801-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
PROTECTOR 2
BBJ-F834W-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SPRING
90183-05827-00
|
$1.65 | ||
|
Unavailable |
|||
|
#24
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. SOCKET BUTTON
90111-06801-00
|
$1.95 | ||
|
Unavailable |
|||
|
#26
PANEL 1
BBJ-F835U-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BUTTON HEAD
92017-06014-00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
RIVET
90269-06806-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, SPRING
90183-05827-00
|
$1.65 | ||
|
Unavailable |
|||
|
#30
PANEL 2
BBJ-F835V-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#31
BOLT, BUTTON HEAD
92017-06014-00
|
$4.60 | ||
|
Unavailable |
|||
|
#32
RIVET
90269-06806-00
|
$2.20 | ||
|
Unavailable |
|||
|
#33
NUT, SPRING
90183-05827-00
|
$1.65 | ||
|
Unavailable |
|||
|
#34
PLATE
BBJ-F8336-00-00
Superseded by BBJ-F8336-01-00
|
$3.50 | ||
|
Unavailable |
|||
|
#35
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
Unavailable |
|||
|
#36
COVER, HEADLIGHT
BBJ-H4144-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#37
NUT, SPRING
90183-06813-00
|
$1.95 | ||
|
Unavailable |
|||
|
#38
DAMPER, PLATE
90520-05825-00
|
$0.40 | ||
|
Unavailable |
|||
|
#39
DAMPER, PLATE
90520-06806-00
|
$0.65 | ||
|
Unavailable |
|||
|
#40
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
Unavailable |
|||
