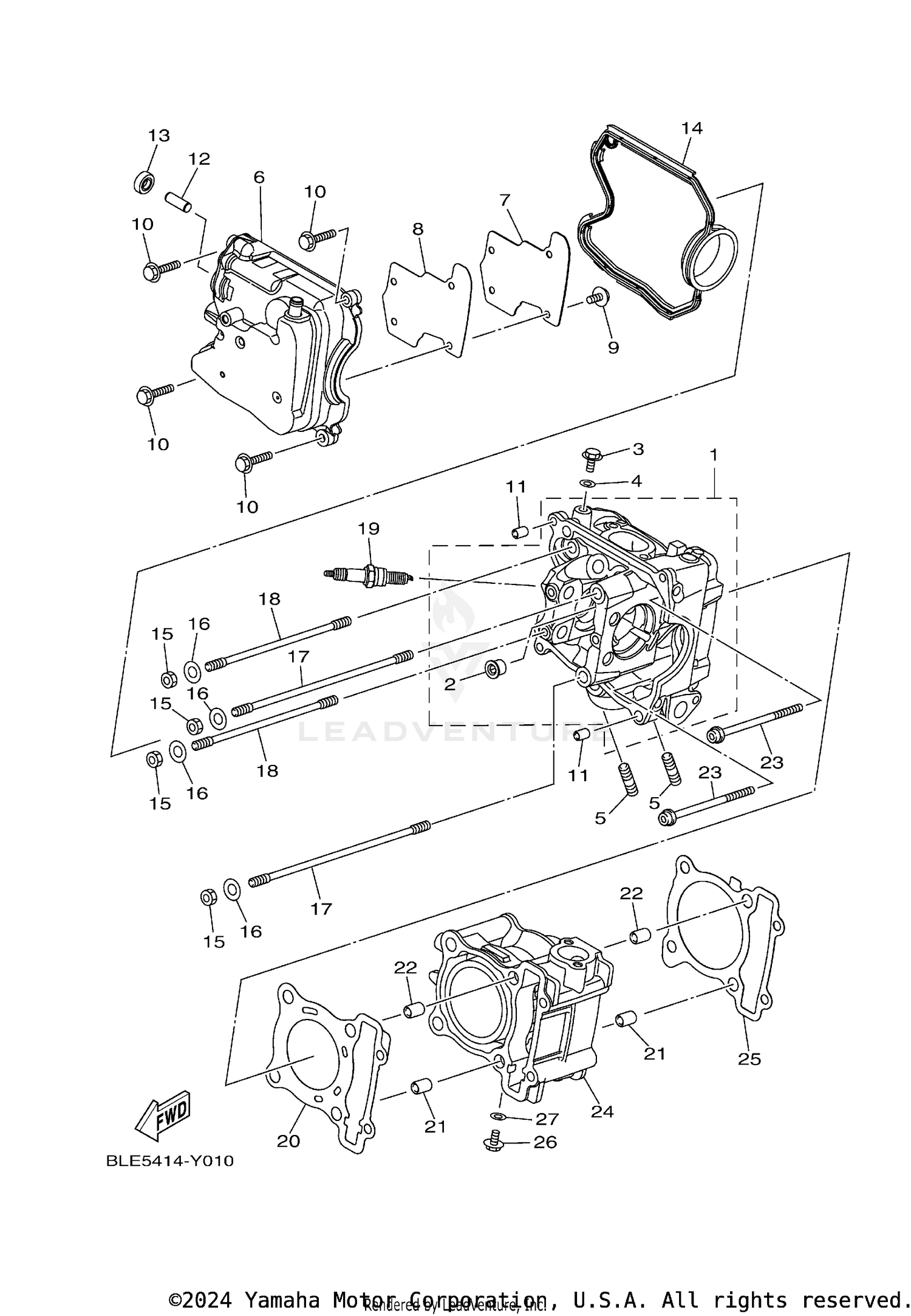

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
B8R-E1102-10-00
|
|||
|
Unavailable |
|||
|
#2
PLUG, STRAIGHT SCREW
90340-12813-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE DEEP RE
95E32-06010-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, STUD
90116-08806-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, CYLINDER HEAD 1
B8R-E1191-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#7
PLATE, BREATHER
B8R-E1165-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#8
GASKET, BREATHER COVER
2DP-E1169-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#9
SCREW
90149-05801-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE DEEP RECESS
95E32-06030-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD 1
2DP-E132G-00-00
|
$3.60 | ||
|
Unavailable |
|||
|
#13
OIL SEAL
93102-08800-00
|
$4.60 | ||
|
Unavailable |
|||
|
#14
GASKET, HEAD COVER 1
B3F-E1193-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#15
NUT
90170-08811-00
|
$0.40 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-08859-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD 1
2DP-E1391-00-00
|
$3.70 | ||
|
Unavailable |
|||
|
#18
BOLT, STUD 2
2DP-E1392-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#19
CPR8EA-9 NGK SPLUG
CPR-8EA90-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#20
GASKET, CYLINDER HEAD 1
2DS-E1181-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#21
PIN, DOWEL
91810-14807-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL
91810-14807-00
|
$1.75 | ||
|
Unavailable |
|||
|
#23
BOLT, HEXAGON SOCK
90110-06894-00
|
$1.80 | ||
|
Unavailable |
|||
|
#24
CYLINDER 1
B8R-E1311-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#25
GASKET, CYLINDER
B6H-E1351-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE DEEP RE
95E32-06010-00
|
$0.95 | ||
|
Unavailable |
|||
|
#27
GASKET
90430-06014-00
|
$8.60 | ||
|
Unavailable |
|||
