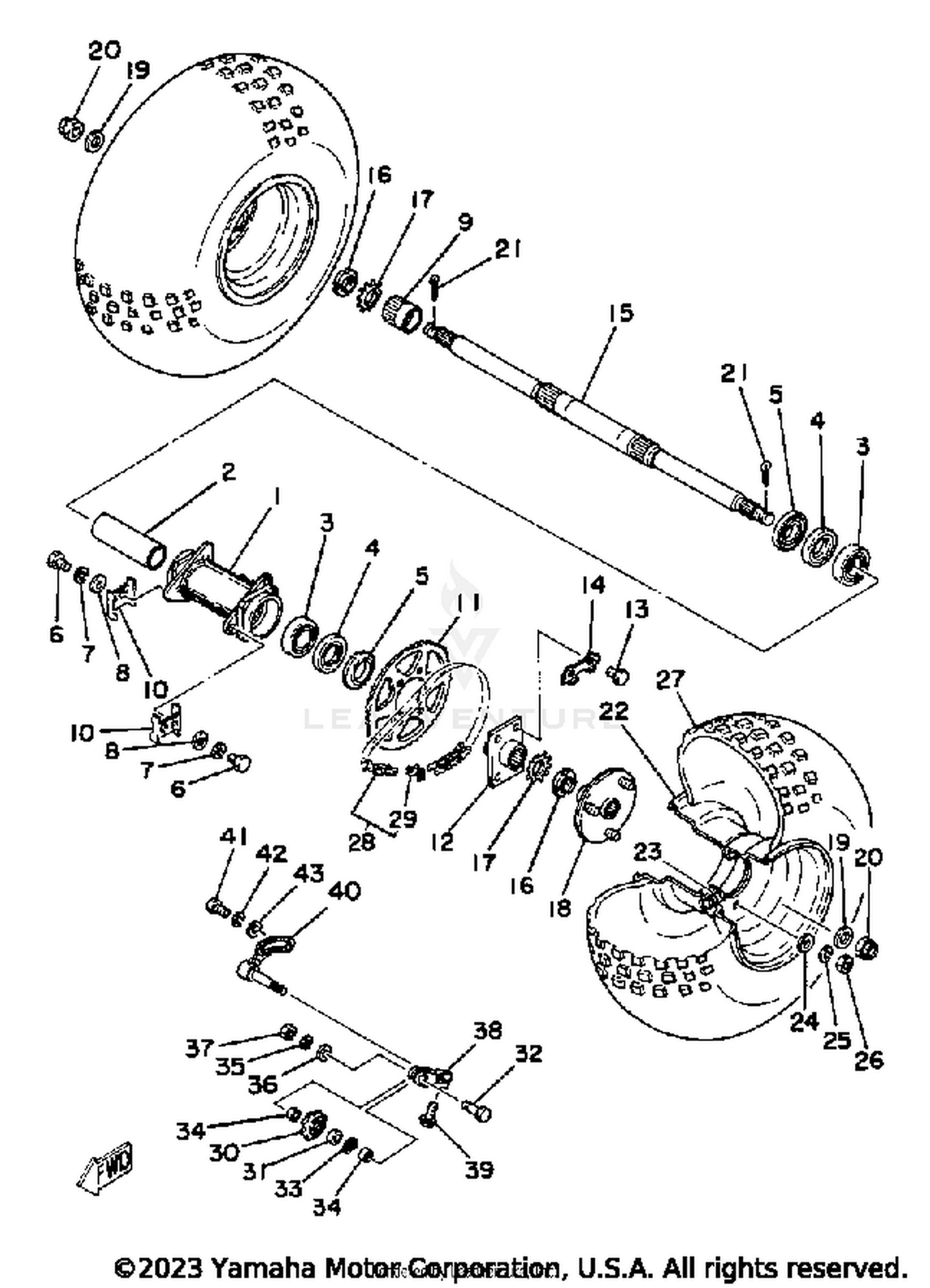

Rear Wheel Yt125h Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
3X3-25311-00-00
|
$119.99 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
3X3-25317-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-00704-00
Superseded by 93306-00702-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-40211-00
Superseded by 93106-40041-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, HUB DUST
3X3-25367-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,HEXAGON
97322-08022-00
Superseded by 97027-08022-00
|
$1.30 | ||
|
Unavailable |
|||
|
#7
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, SPRKT AXLE
3X3-25386-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#10
STOPPER,HUB
3X3-25318-01-00
|
$6.86 | ||
|
Unavailable |
|||
|
#11
SPROCKET DRVN 49T
3X3-25449-01-00
|
$50.49 | ||
|
Unavailable |
|||
|
#12
BOSS
3X3-25521-00-00
|
$38.79 | ||
|
Unavailable |
|||
|
#13
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
3X3-25412-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#15
AXLE, WHEEL
3X3-25381-00-00
|
$143.99 | ||
|
Unavailable |
|||
|
#16
NUT,SPEC'L SHAPE
90179-32295-00
Superseded by 90179-32365-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
WASHER, LOCK
90215-33163-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
COLLAR, WHEEL (3X3-25383-00)
5V7-25383-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#19
WASHER
92901-20600-00
Superseded by 92903-20600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SLOTTED
95302-20900-00
|
$4.37 | ||
|
Unavailable |
|||
|
#21
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WHEEL, FRONT
29U-25180-00-35
|
$143.99 | ||
|
Unavailable |
|||
|
#23
VALVE, RIM (TR412)
93900-00030-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-10200-00
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN
92990-10200-00
|
$3.72 | ||
|
Unavailable |
|||
|
#26
NUT
95380-10600-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
22X11.00-8 KT221TL
94122-11572-00
|
$54.53 | ||
|
Unavailable |
|||
|
#28
CHAIN
94580-30060-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEALED CHAIN YT125
94580-35060-00
|
$92.36 | ||
|
Unavailable |
|||
|
#29
JOINT, CHAIN
94680-30001-00
Superseded by 94682-51001-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPROCKET, DRIVN 17T
3X3-25417-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#31
BEARING
93300-60804-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT
90101-08476-00
|
$12.49 | ||
|
Unavailable |
|||
|
#33
CIRCLIP
93420-22056-00
Superseded by 99009-22500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-080A2-00
|
$4.80 | ||
|
Unavailable |
|||
|
#35
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Unavailable |
|||
|
#36
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
Unavailable |
|||
|
#37
NUT (6L2)
95333-08600-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
PULLER,CHAIN 1
3X3-25388-01-00
|
$16.54 | ||
|
Unavailable |
|||
|
#39
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
CHAIN PULLER CMPLT
3X3-25380-00-00
|
$124.99 | ||
|
Unavailable |
|||
|
#41
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Unavailable |
|||
|
#43
WASHER, PLATE
90201-08326-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
