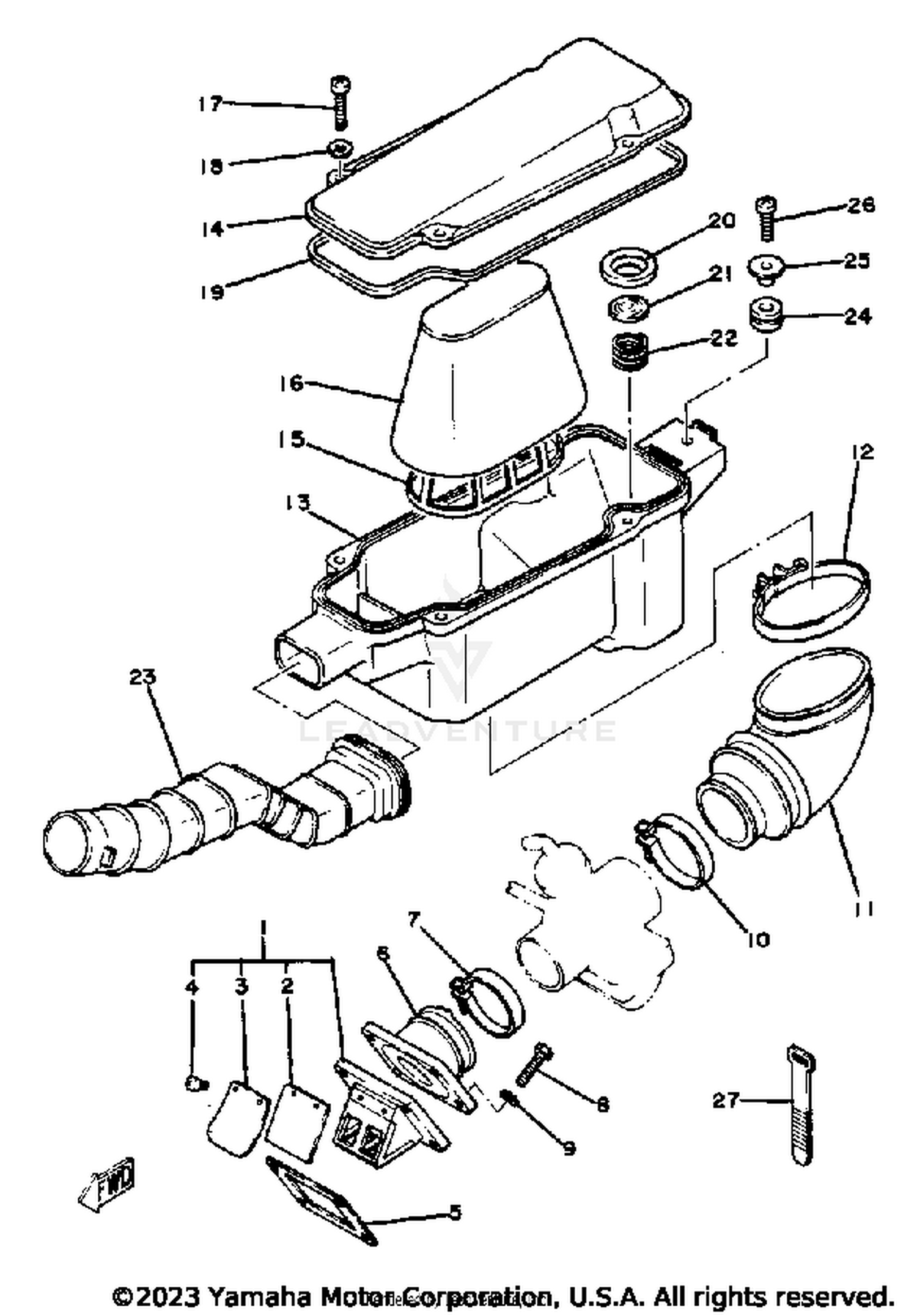

Intake Yt125j Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASY
3X3-13610-00-00
Superseded by 345-13610-20-00
|
$247.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REED, VALVE
4X8-13613-10-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
3X3-13616-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD (98501-03008-00
98580-03008-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, VALVE SEAT
87A-13621-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, CARBURETOR 1
3X3-13586-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, HOSE
90460-43053-00
Superseded by 90460-43179-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, HOSE
90460-49058-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT,AIR CLNR 1
5V7-14453-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#12
CLAMP, HOSE
90460-01186-00
|
$17.99 | ||
|
Unavailable |
|||
|
#13
CASE,AIR CLEANER 1
5V7-14411-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#14
CAP,CLEANER CASE 1
5V7-14412-00-00
|
$19.72 | ||
|
Unavailable |
|||
|
#15
GUIDE,ELEMENT
5V7-14458-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
ELEMENT,AIR CLNR
5V7-14451-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98580-06020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#19
GASKET, TAIL LENS
1VJ-14462-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
OIL SEAL, SO-TYPE
93104-18006-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLATE
3X3-14477-00-00
|
$6.96 | ||
|
Unavailable |
|||
|
#22
SPRING, COMPRESSION
90501-05588-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
DUCT
5V7-14437-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#24
GROMMET
90480-14229-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-06033-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
