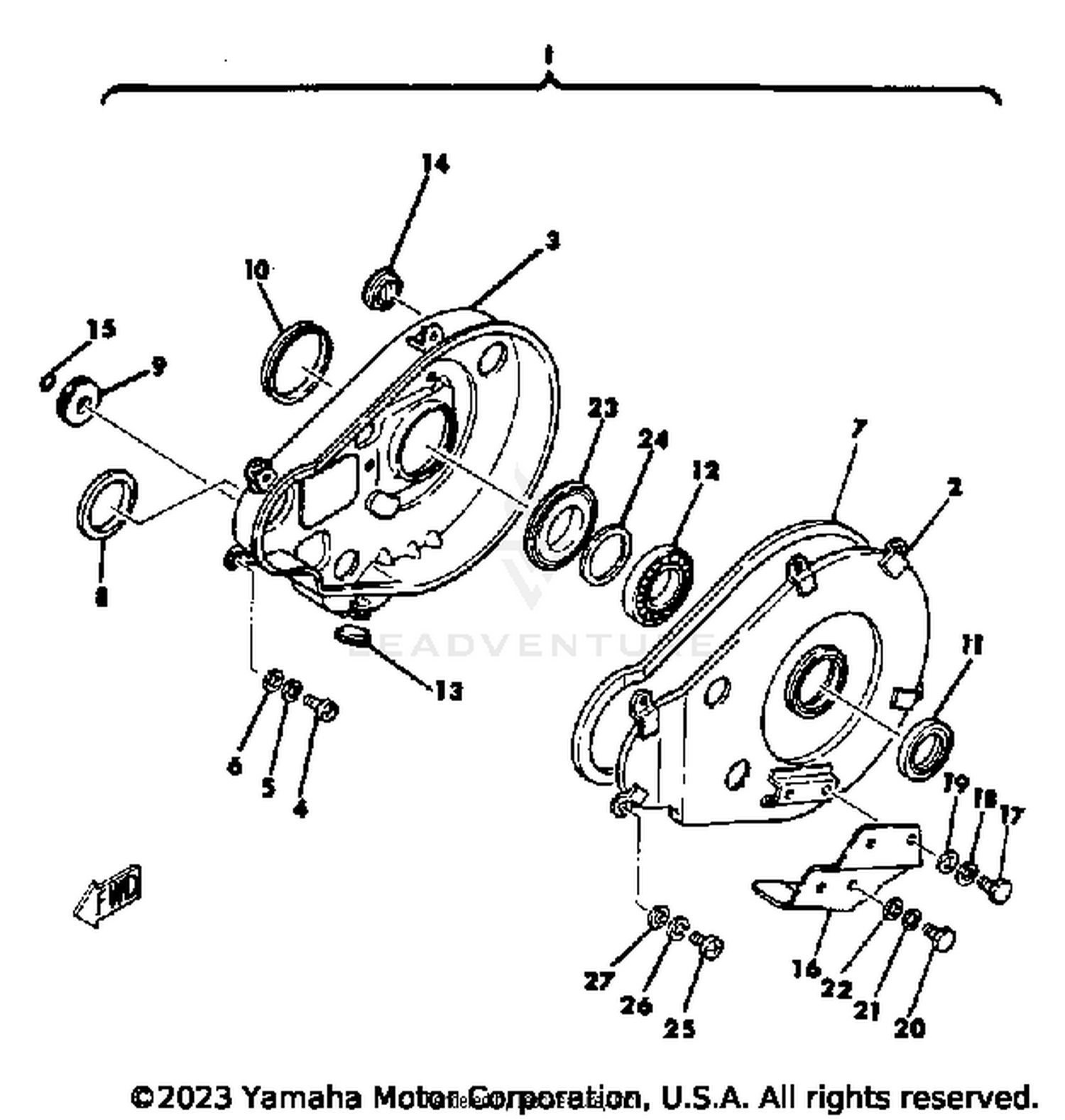

Chain Case Yt125h Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN CASE KIT
4U3-W0022-00-00
|
$114.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
RUBBER,CHAIN CASE
3X3-22313-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#8
SEAL 1
3X3-22358-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#9
GROMMET
90480-25281-00
|
$1.28 | ||
|
Unavailable |
|||
|
#10
SEAL 2
3X3-22359-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#11
OIL SEAL,SD-TYPE
93102-42223-00
|
$14.49 | ||
|
Unavailable |
|||
|
#12
BEARING
93306-00802-00
|
$39.00 | ||
|
Unavailable |
|||
|
#13
PLUG,SPEC'L SHAPE
90338-20051-00
|
$2.00 | ||
|
Unavailable |
|||
|
#14
CAP
148-22315-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-12790-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GUARD,CHAIN
3X3-22318-00-00
|
$12.72 | ||
|
Unavailable |
|||
|
#17
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#20
BOLT (661)
97003-06022-00
Superseded by 97013-06022-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#23
COVER,DUST
3X3-22325-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
PLATE,CHN CS RUBR
3X3-22347-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Unavailable |
|||
