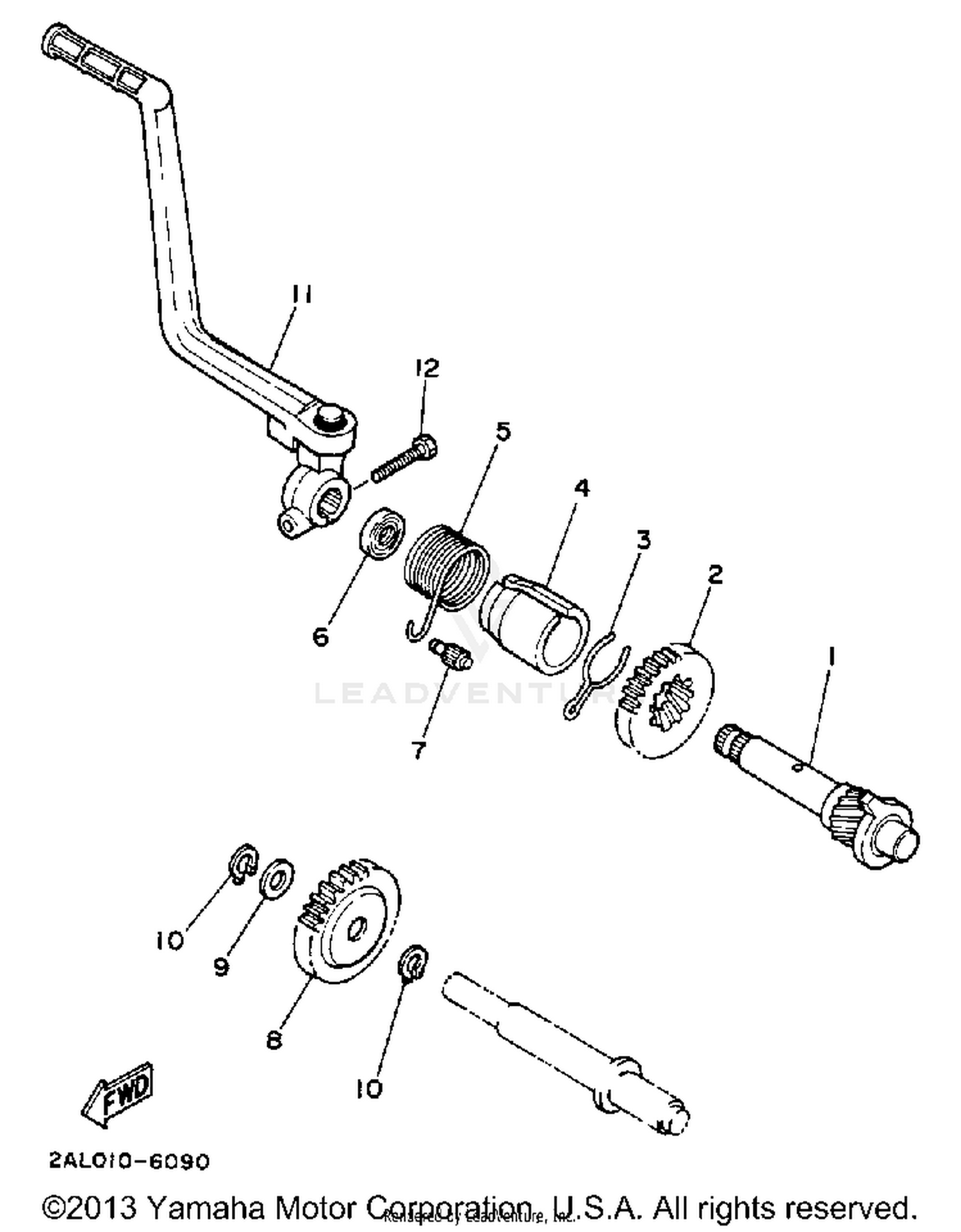

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK AXLE ASSEMBLY
2AL-15660-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#2
GEAR, KICK (24T)
353-15641-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#3
CLIP
90468-26038-00
|
$7.99 | ||
|
Unavailable |
|||
|
#4
GUIDE, SPRING
4U1-15664-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#5
SPRING, TORSION
90508-26136-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93109-15001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER
248-15668-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, KICK IDLE
353-15651-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-12166-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
KICK CRANK ASSEMBLY
2AL-15620-00-00
|
$125.99 | ||
|
Unavailable |
|||
|
#12
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
