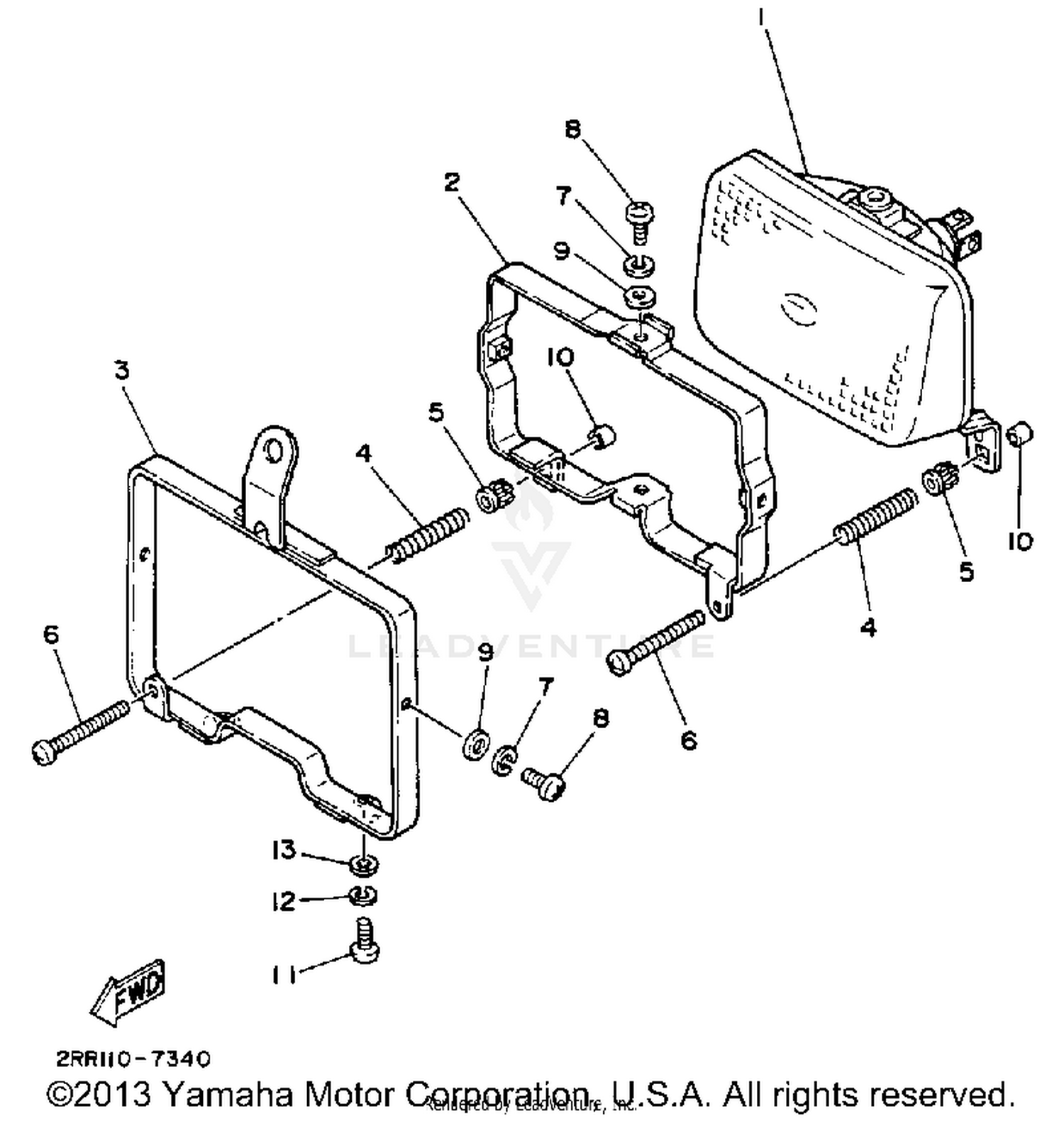

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LENS ASSEMBLY
2RR-84120-A0-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING, RETAINING
2RR-84195-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#3
RING, MOUNTING
2RR-84194-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#4
SPRING, SCREW
2EK-84132-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
NUT, ADJUSTING
50W-84334-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, ADJUSTING
1M1-84524-60-00
Superseded by 5BF-8433E-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW
50W-84333-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
2RR-84138-00-00
Superseded by 4KG-84344-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG
2RR-84178-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-05012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-05029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
