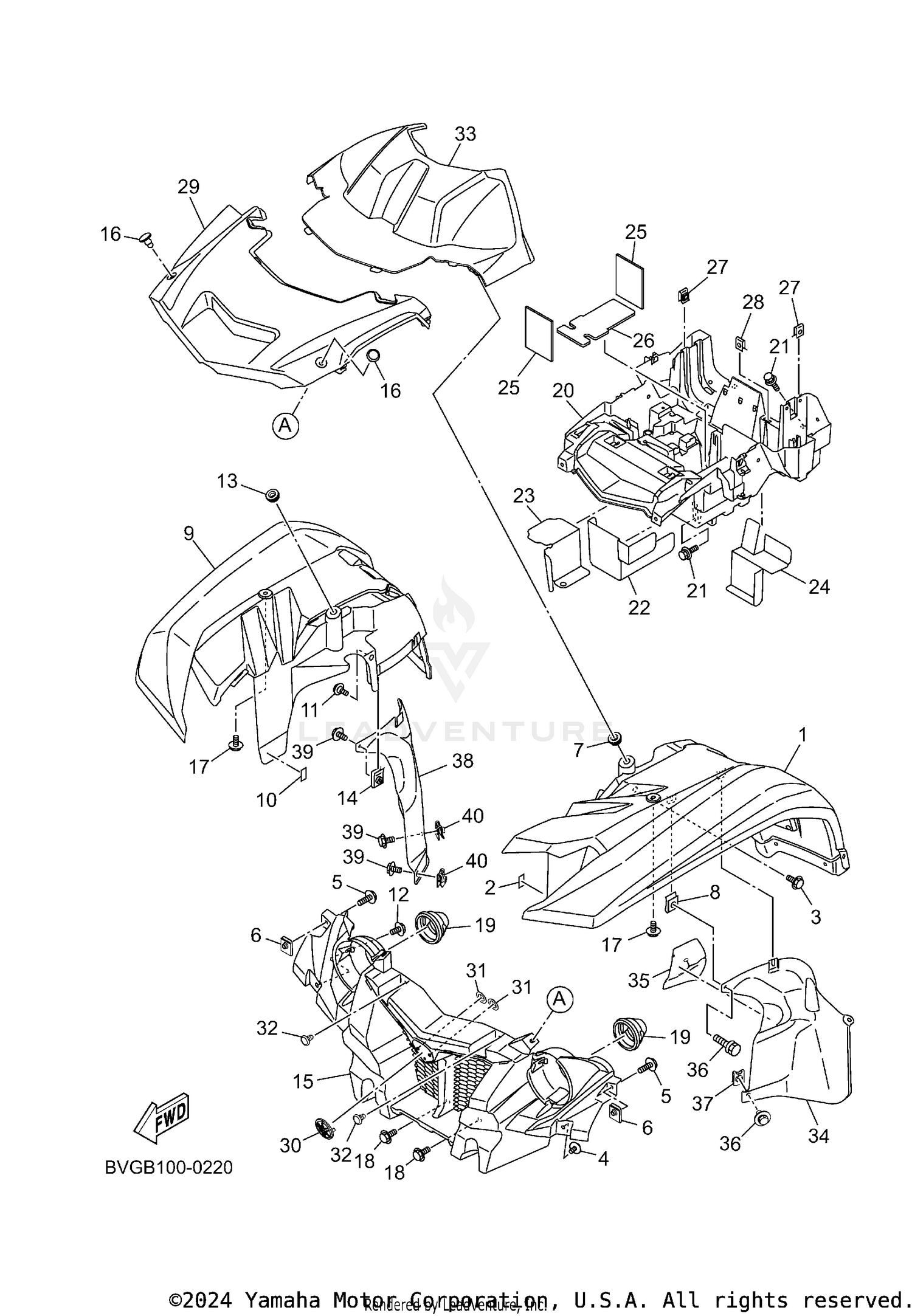

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER ASSY
B5K-F1500-51-00
|
$268.99 | ||
|
Unavailable |
|||
|
#2
DAMPER 1
3B4-21541-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90109-06043-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, WITH WASHER
90119-05193-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT, SPRING
90183-051A0-00
|
$4.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
FENDER, FRONT 2
B16-F1556-50-00
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER 1
3B4-21541-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#11
BOLT
90109-06043-00
|
$3.00 | ||
|
Unavailable |
|||
|
#12
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#13
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$9.49 | ||
|
Unavailable |
|||
|
#14
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
GRILLE, FRONT
B16-F8309-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIVET
90269-07010-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#18
BOLT
90109-06043-00
|
$3.00 | ||
|
Unavailable |
|||
|
#19
CAP
5UH-F8349-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOX, BATTERY 1
1HP-H212B-02-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#22
INSULATOR 1
1HP-H253E-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#23
INSULATOR 2
1HP-H253F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
INSULATOR
1HP-H254E-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
INSU.
3B4-8233W-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAT, BATTERY
3B4-82122-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
NUT, SPRING
90183-05008-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PANEL, FRONT
B16-F3391-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
TUNING FORK MARK
1XD-F175B-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SPRING
90183-06071-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
RIVET
90269-07010-00
|
$4.70 | ||
|
Unavailable |
|||
|
#33
PANEL, ACCESSORY
B16-F839R-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
FENDER, INNER
1HP-F1552-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SEAL 1
1HP-F1575-01-00
|
$4.40 | ||
|
Unavailable |
|||
|
#36
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#37
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#38
FENDER, INNER 2
1HP-F1553-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#40
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
