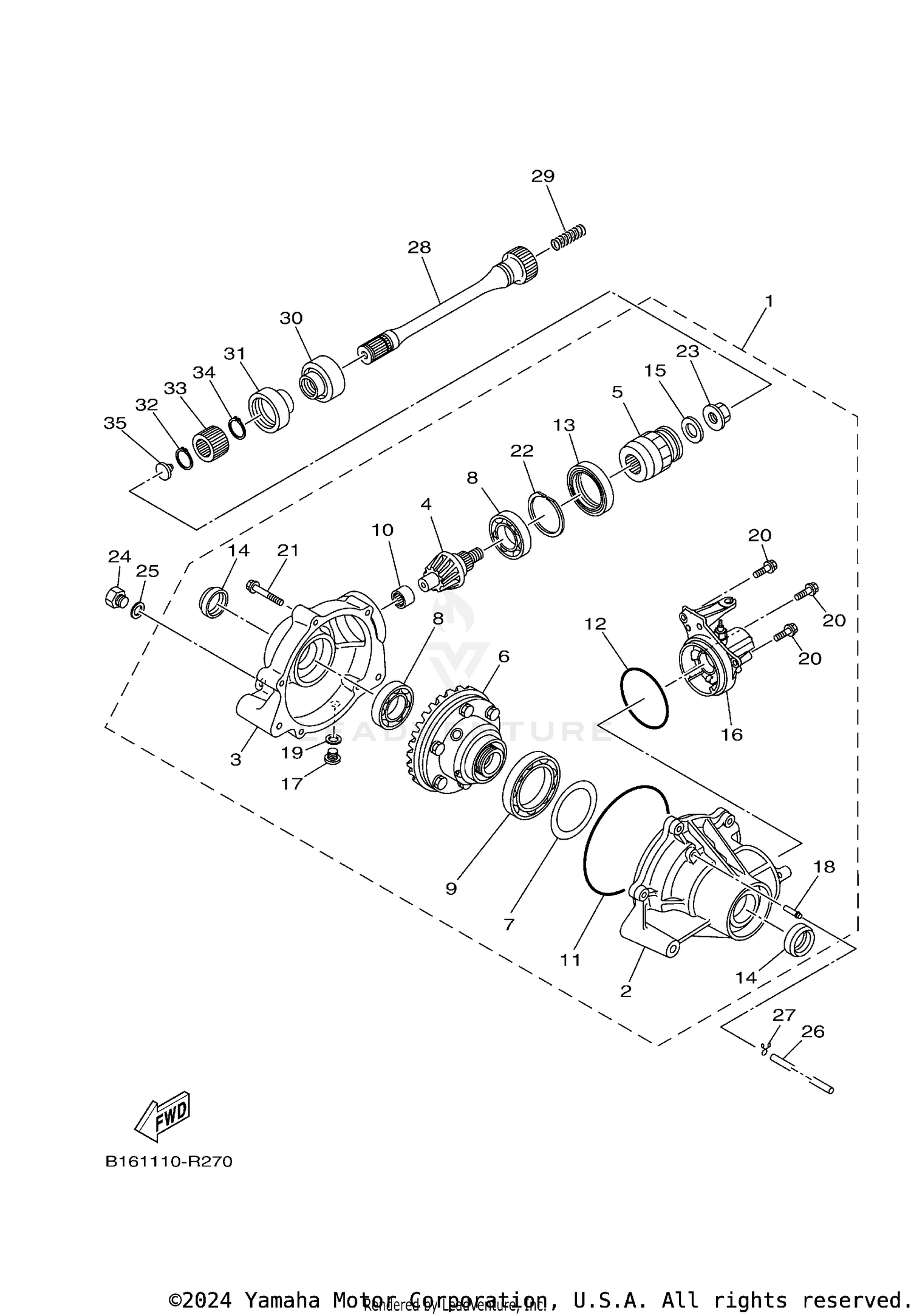

Front Differential Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT AXLE GEAR CASE COMP.
B16-46160-01-00
|
$1,562.99 | ||
|
Unavailable |
|||
|
#2
HOUSING, BEARING 2
3B4-46162-01-00
|
$392.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING, SHAFT DRIVE 2
3B4-46161-00-00
|
$275.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PINION, DRIVE 2
1XD-46141-00-00
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUPLING
3B4-67839-10-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
. .LIMITED SLIP DIFF. ASSY
B16-46470-01-00
|
$999.99 | ||
|
Unavailable |
|||
|
#7
SHIM, RING GEAR (0.1T)
3B4-46117-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, RING GEAR (0.2T)
3B4-46117-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, RING GEAR (0.3T)
3B4-46117-20-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, RING GEAR (0.4T)
3B4-46117-30-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-00613-00
Superseded by 93306-00612-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING 1
3B4-46164-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING 3
3B4-46166-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING 1
3B4-46134-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING 2
3B4-46135-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93105-46001-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, OIL 1
3B4-46163-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
3B4-47359-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIFT ASSY
B16-46370-00-00
|
$525.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG, STRAIGHT SCREW
90340-10001-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
TUBE
5GH-46293-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
90430-10003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95812-06014-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE
95812-08040-00
Superseded by 95817-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING, HOLE SNAP 1
3B4-46142-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT 1
4WV-46145-11-00
|
$13.49 | ||
|
Unavailable |
|||
|
#24
PLUG, STRAIGHT SCREW
90340-14029-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
HOSE (L310)
90445-070F1-00
Superseded by 90445-072G8-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-07029-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHAFT, DRIVE 2
1HP-G6173-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, COMPRESSION
90501-20361-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL 2
5KM-46137-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL 1
5KM-46136-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
CIRCLIP
99009-19400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
COUPLING
5KM-46126-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
DAMPER
5KM-46559-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
