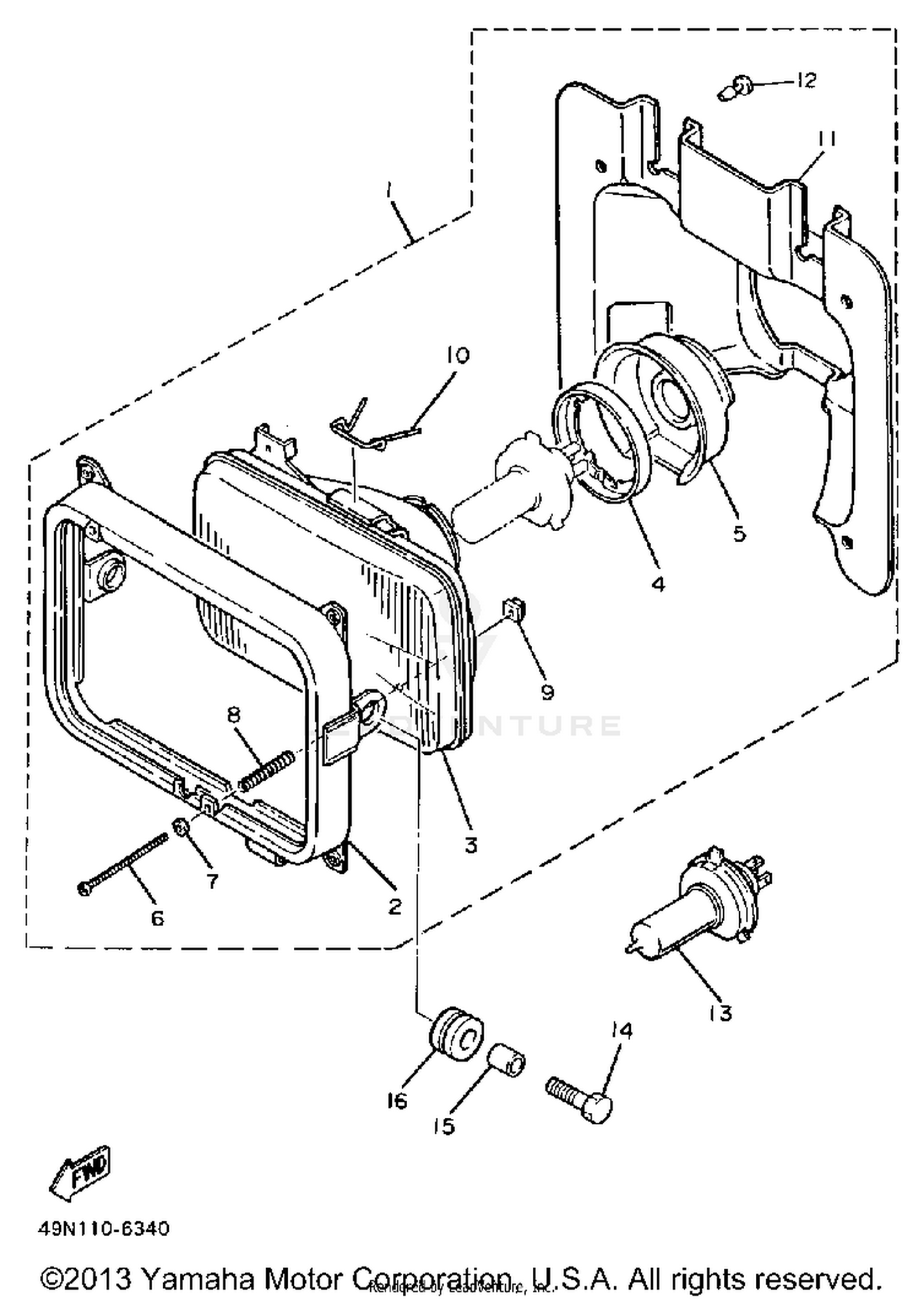

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASY
49M-84303-A0-00
|
|||
|
Unavailable |
|||
|
#2
RIM, HEADLIGHT
47J-84115-00-00
|
$160.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, HEADLIGHT
5G2-84321-A0-00
|
$150.99 | ||
|
Unavailable |
|||
|
#4
SETTING PLATE, BULB
2F9-84375-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SOCKET
2F9-84397-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, RIM ADJUSTER
43F-84131-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
233-84127-60-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SCREW
341-84332-60-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, ADJUSTING
198-84334-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SET SPRING (5G2-84324-A0)
14T-84124-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SOCKET
10V-84196-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP, COVER FITTING
10V-84198-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-14023-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
