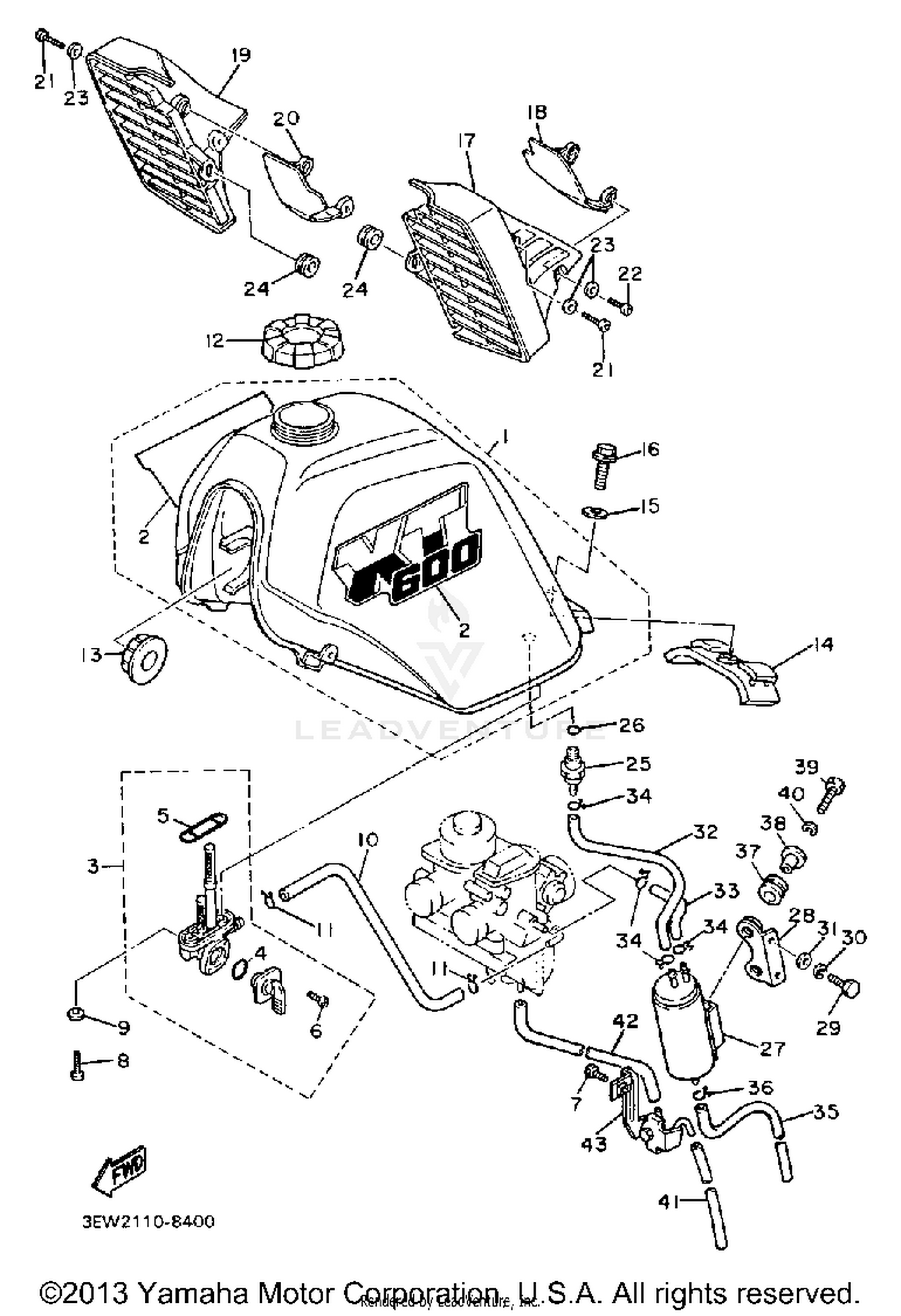

Fuel Tank (california Model Only) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
49R-24110-00-04
|
$522.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
47N-24240-00-00
|
$83.56 | ||
|
Unavailable |
|||
|
#3
FUEL COCK ASSY 1
3FY-24500-00-00
Superseded by 3FY-24500-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, COCK
4X8-24534-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT
91316-08012-00
Superseded by 91317-08012-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HOSE (L110)
90445-103A3-00
Superseded by 90445-10752-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CAP ASSEMBLY
49R-24610-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#13
DAMPER, LOCATING 1
4L0-24181-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, LOCATING 2
43F-24182-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#15
WASHER, SPEC''L SHAP
90209-07256-00
|
$2.95 | ||
|
Unavailable |
|||
|
#16
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCOOP, AIR 1
43F-2137W-10-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, AIR 1
43F-2137U-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCOOP, AIR 2
43F-2137X-10-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUIDE, AIR 2
43F-2137V-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW,SPEC'L SHAPE
90149-06197-00
Superseded by 90149-06315-00
|
$3.05 | ||
|
Unavailable |
|||
|
#22
SCREW, SPEC''L SHAPE
90149-06200-00
|
$0.85 | ||
|
Unavailable |
|||
|
#23
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-08216-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
ROLL OVER VALVE ASSY
20K-24180-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-10166-00
Superseded by 93210-11453-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CANISTER ASSY
59K-24170-00-00
Superseded by 4BE-24170-00-00
|
$330.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CANISTER HOLDER
1WN-24190-00-00
|
$70.26 | ||
|
Unavailable |
|||
|
#29
BOLT
97016-08016-00
Superseded by 97017-08016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
HOSE
90445-103A7-00
Superseded by 90445-10020-00
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE 2
1WN-24312-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#34
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#35
PIPE, FUEL 1
4A0-24311-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#36
CLIP
90467-11102-00
Superseded by 90467-11106-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP
90467-11102-00
Superseded by 90467-11106-00
|
$4.05 | ||
|
Unavailable |
|||
|
#38
COLLAR
90387-063G3-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
PIPE
56R-14193-00-00
|
$289.99 | ||
|
Unavailable |
|||
|
#42
PIPE
1WN-14148-00-00
|
$0.80 | ||
|
Unavailable |
|||
|
#43
BRACKET 1
1WN-14291-00-00
|
$41.41 | ||
|
Unavailable |
|||
