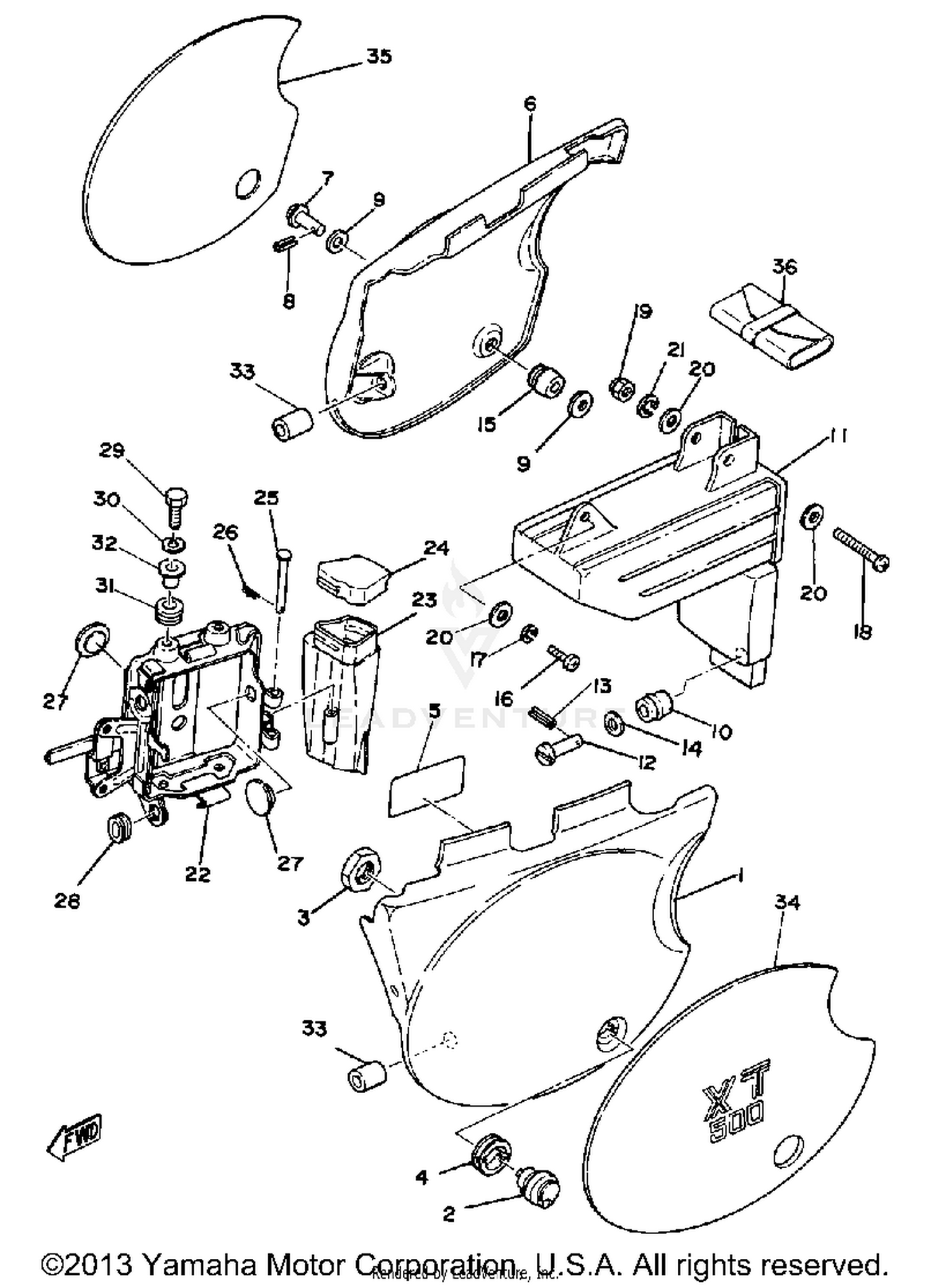

Side Cover - Tool Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
3H7-21711-00-33
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SIDE COVER LOCK ASSEMBLY
1E6-21708-00-00
|
$66.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
NUT
90170-22187-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-24186-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, SPEC
3H6-21683-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#6
COVER, SIDE 2
3H7-21721-00-33
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
KNOB, SIDE COVER 1
583-21714-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, SPRING
91609-25018-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06063-00
Superseded by 90201-06095-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER
583-21747-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOX, TOOL
1T2-21171-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
KNOB, SIDE COVER 1
583-21714-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#13
PIN, SPRING
91609-25018-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-06063-00
Superseded by 90201-06095-00
|
$9.49 | ||
|
Unavailable |
|||
|
#15
DAMPER
583-21747-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98506-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98506-06045-00
Superseded by 98507-06045-00
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-063J2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOX, BATT.
2H0-21240-00-00
|
$80.35 | ||
|
Unavailable |
|||
|
#23
BOX
1E6-21245-00-00
|
$11.08 | ||
|
Unavailable |
|||
|
#24
CAP, TOOL BOX
1E6-21399-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
PIN, CLEVIS
91701-05055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90468-10050-00
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PAD, BATTERY
371-82121-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROMMET
90480-01176-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#31
UNAVAILABLE IN PRICE BOOK (9084
90480-14123-00
|
|||
|
Unavailable |
|||
|
#32
COLLAR
90387-07391-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE (L70)
90445-11418-00
Superseded by 90445-112E0-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
EMBLEM 6
3H6-21786-00-00
|
$8.28 | ||
|
Unavailable |
|||
|
#35
EMBLEM 7
3H6-21787-00-00
|
$8.28 | ||
|
Unavailable |
|||
|
#36
TOOL KIT (1E6-28100-10)
1JN-W2810-00-00
|
$152.99 | ||
|
Unavailable |
|||
