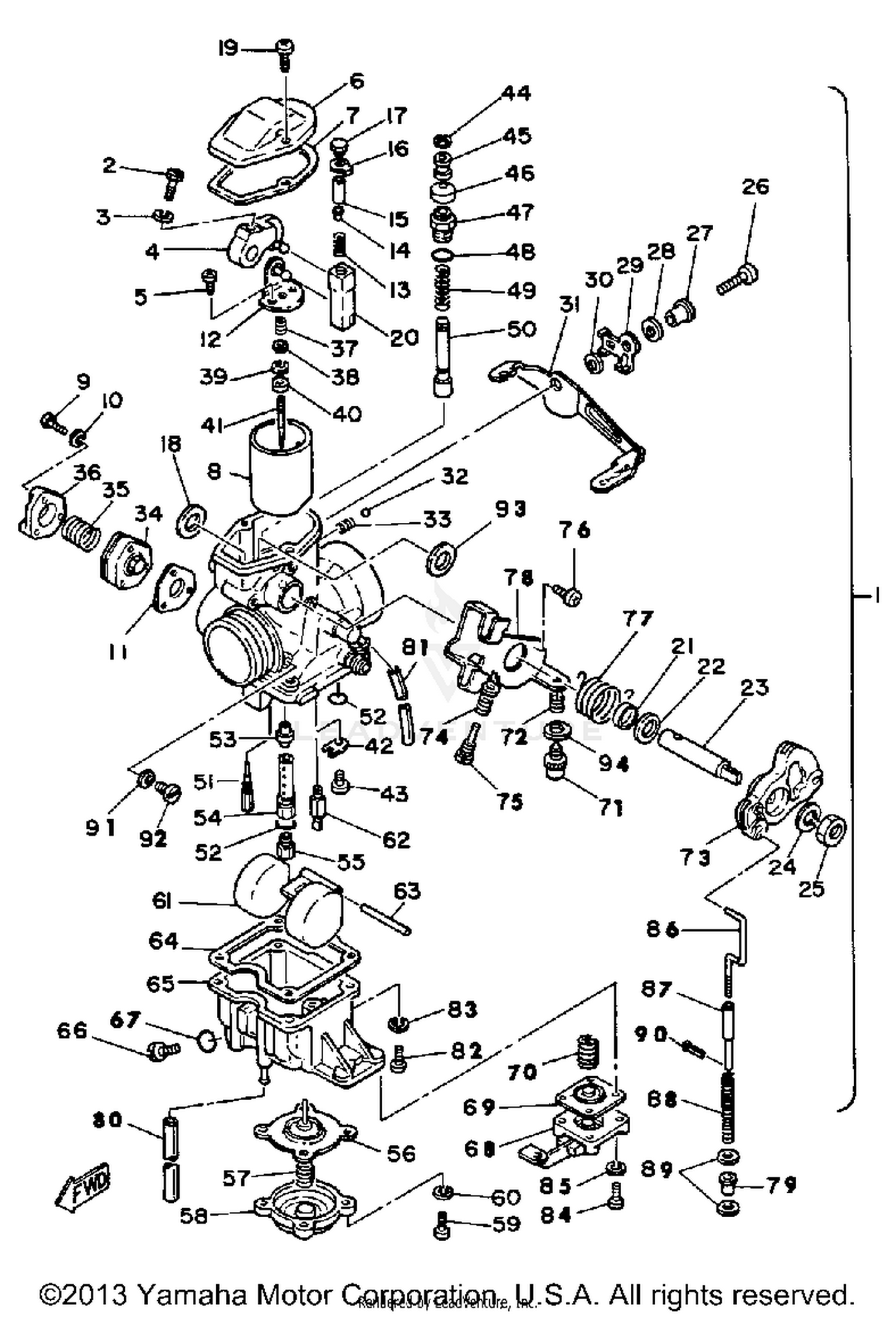

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
3H6-14101-00-00
|
$206.99 | ||
|
Unavailable |
|||
|
#2
SCREW
2V0-14592-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#3
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BRACKET 2
3H1-14292-00-00
|
$8.46 | ||
|
Unavailable |
|||
|
#5
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
TOP, MIXING CHAMBER
3H1-14158-00-00
|
$12.52 | ||
|
Unavailable |
|||
|
#7
GASKET
583-14536-00-00
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
VALVE, THROTTLE 1
3H1-14112-35-00
|
$61.52 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98511-04025-00
Superseded by 98517-04025-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GASKET
2H0-14198-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET 1
3H1-14291-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#13
SPRING, DIAPHRAGM
1T2-14933-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#14
WASHER
583-14558-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#15
PIN, FLOAT
583-14386-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#16
WASHER
583-14951-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#17
SCREW
3H1-14216-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#18
SPACER
583-14264-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CONNECTOR
583-14274-00-00
|
$4.09 | ||
|
Unavailable |
|||
|
#21
SEAL
583-14239-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
COLLAR
583-14265-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#23
SHAFT, THRTL LEVER
3H1-14215-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#24
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT
812-14594-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98502-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
RING
2J2-14194-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#28
WASHER
2J2-14962-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#29
PLATE, STARTER LVR
2H0-14178-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#30
SPRING, CHOKE LEVER
2H0-14218-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#31
LEVER, STARTER 1
3H6-14175-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#32
BALL
93501-08001-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SPRING
583-14589-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PUMP BODY ASSEMBLY.
2H0-14217-00-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING, DIAPHRAGM
3H6-14933-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#36
COVER, DIAPHRAGM
2H0-14958-00-00
|
$2.44 | ||
|
Unavailable |
|||
|
#37
SPRING
3H1-14589-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#38
WASHER
2N6-14227-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
RING
2N6-14918-01-00
|
$16.99 | ||
|
Unavailable |
|||
|
#41
NEEDLE
644-14116-34-00
|
$7.06 | ||
|
Unavailable |
|||
|
#42
PLATE
2H0-14146-00-00
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
CLIP
737-14137-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
RING
583-14918-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#46
COVER, PLUNGER CAP
3H1-14173-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#47
CAP, PLUNGER
2H0-14174-00-00
|
$12.38 | ||
|
Unavailable |
|||
|
#48
O-RING
583-14562-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#49
SPRING, PLUNGER
256-14135-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLUNGER, STARTER
2H0-14171-00-00
|
$13.48 | ||
|
Unavailable |
|||
|
#51
JET, PILOT #20
3H1-14142-20-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
O-RING
583-14561-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
NOZZLE, MAIN
2H0-14141-48-00
|
$16.49 | ||
|
Unavailable |
|||
|
#54
PIPE
3H1-14148-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#55
JET, MAIN (#250)
137-14143-50-A1
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
DIAPHRAGM ASSEMBLY
3H1-14940-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
SPRING, DIAPHRAGM
3H1-14933-00-00
|
$7.10 | ||
|
Unavailable |
|||
|
#58
COVER, DIAPHRAGM
3H1-14958-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#59
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
Unavailable |
|||
|
#60
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#61
FLOAT
3H1-14185-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#62
NEEDLE VALVE ASSEMBLY
3H1-14190-28-00
|
$22.99 | ||
|
Unavailable |
|||
|
#63
PIN, FLOAT
537-14186-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
GASKET, FLOAT CHMBR
3H1-14184-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
BODY CHAMBER ASSEMBLY
99999-01147-00
|
$39.99 | ||
|
Unavailable |
|||
|
#66
PLUG, DRAIN
2L1-14191-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
O-RING
214-14147-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#68
LEVER, STARTER
2H0-14905-00-00
|
$19.08 | ||
|
Unavailable |
|||
|
#69
DIAPHRAGM ASSEMBLY
2J4-14940-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
SPRING
2J4-14589-00-00
|
$7.10 | ||
|
Unavailable |
|||
|
#71
SCREW, THRTL STOP
2H6-14121-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#72
SPRING
2J2-14133-00-00
Superseded by 8X0-14500-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
SPRING
3H1-14589-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#74
SPRING, THRTL STOP
583-14133-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#75
SCREW, GUIDE
583-14245-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#76
SCREW, PAN HEAD
98580-05012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
SPRING, THRTL VALVE
583-14131-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#78
SPRING
3H1-14589-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#79
COLLAR
2H0-14534-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#80
PIPE (43214-19700-00)
510-14197-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#81
HOSE
90445-081F2-00
Superseded by 90445-08684-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#82
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#83
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
Unavailable |
|||
|
#84
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
Unavailable |
|||
|
#85
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#86
ROD
3H1-14992-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#87
ROD
2H0-14992-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#88
SPRING
2J2-14589-00-00
|
$7.10 | ||
|
Unavailable |
|||
|
#89
WASHER
2H0-14227-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#90
PIN, COTTER
91401-10015-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#91
WASHER
584-14956-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#92
PLUG, SCREW
2F5-14115-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#93
WASHER
3H1-14227-00-00
|
$4.00 | ||
|
Unavailable |
|||
|
#94
CAP
3F9-14118-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#
WASHER
1A8-14953-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
