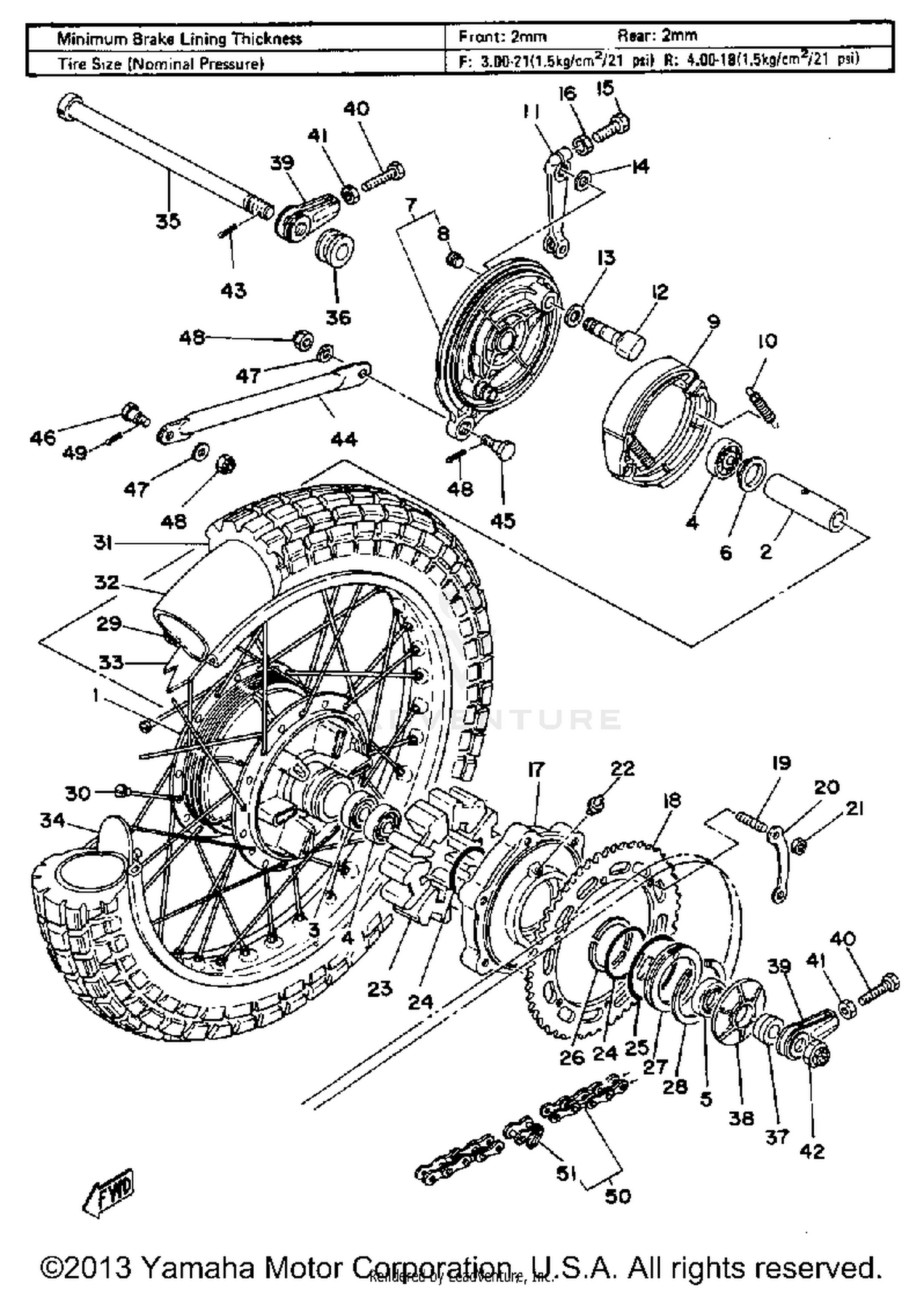

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#28
CIRCLIP, INNER
93450-78080-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
RIM 1.85X18
94418-18199-00
|
$177.99 | ||
|
Unavailable |
|||
|
#30
SPOKE SET, REAR
1E6-25304-00-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
400X18 BS TW5A
94140-18344-00
|
$104.99 | ||
|
Unavailable |
|||
|
#32
TUBE (110-140/80-100-18 M/C)
94240-18098-00
Superseded by 94212-18188-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAND, RIM (2.50-18)
94345-18081-00
Superseded by 94340-18086-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPACER, BEAD
1T2-25394-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
AXLE,WHEEL
150-25381-00-00
Superseded by 150-25381-01-00
|
$53.99 | ||
|
Unavailable |
|||
|
#36
COLLAR
90387-17141-00
Superseded by 90387-170X9-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
COLLAR
90387-17530-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER, HUB DUST
1E6-25367-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#39
PULLER, CHAIN 1
48U-25388-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
NUT, CASTLE
90171-16022-00
Superseded by 90171-16024-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
BAR, TENSION
3H7-25371-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#45
BOLT
90109-08406-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT
90109-08368-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER, PLAIN
92990-08200-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT, SELF-LOCKING
90185-08055-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
520D5-100L DID (94515-20100)
94585-20100-00
Superseded by 9Y585-20099-00
|
$108.99 | ||
|
Unavailable |
|||
|
#51
JOINT,CHAIN (DID 520DM-RJ)
94685-20011-00
Superseded by 94681-68001-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
HUB, REAR
1E6-25311-00-98
|
$136.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-17311-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-20310-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20310-00
|
$41.99 | ||
|
Unavailable |
|||
|
#5
OIL SEAL, SD-TYPE
93102-25061-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
FLANGE, SPACER
146-25315-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKE SHOE PLT ASSEMBLY
1E6-25321-12-98
|
$134.99 | ||
|
Unavailable |
|||
|
#8
GROMMET
90480-10068-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE SHOE KIT
214-W2535-00-00
Superseded by 3GW-W253A-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90507-20002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER,CAMSHAFT
3H7-25355-00-00
Superseded by 3BH-25355-00-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CAMSHAFT
214-25351-01-00
|
$19.99 | ||
|
Unavailable |
|||
|
#13
SHIM, CAMSHAFT
148-25353-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, CAMSHAFT
148-25359-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90101-06278-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLUTCH, HUB
1E6-25366-00-98
|
$145.99 | ||
|
Unavailable |
|||
|
#18
SPROCKET, DRIVEN 44T
38W-25444-20-00
|
$46.99 | ||
|
Unavailable |
|||
|
#19
BOLT, STUD
90116-08218-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER
583-25412-00-00
Superseded by 2XJ-25412-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEXAGON
90170-08193-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
NIPPLE, GREASE
93700-06M03-00
|
$8.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
DAMPER
1E6-25364-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-52312-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-71311-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
STOPPER, HUB
1E6-25318-00-00
Superseded by 1E6-25318-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
SEAL, HUB DUST
1E6-25319-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
