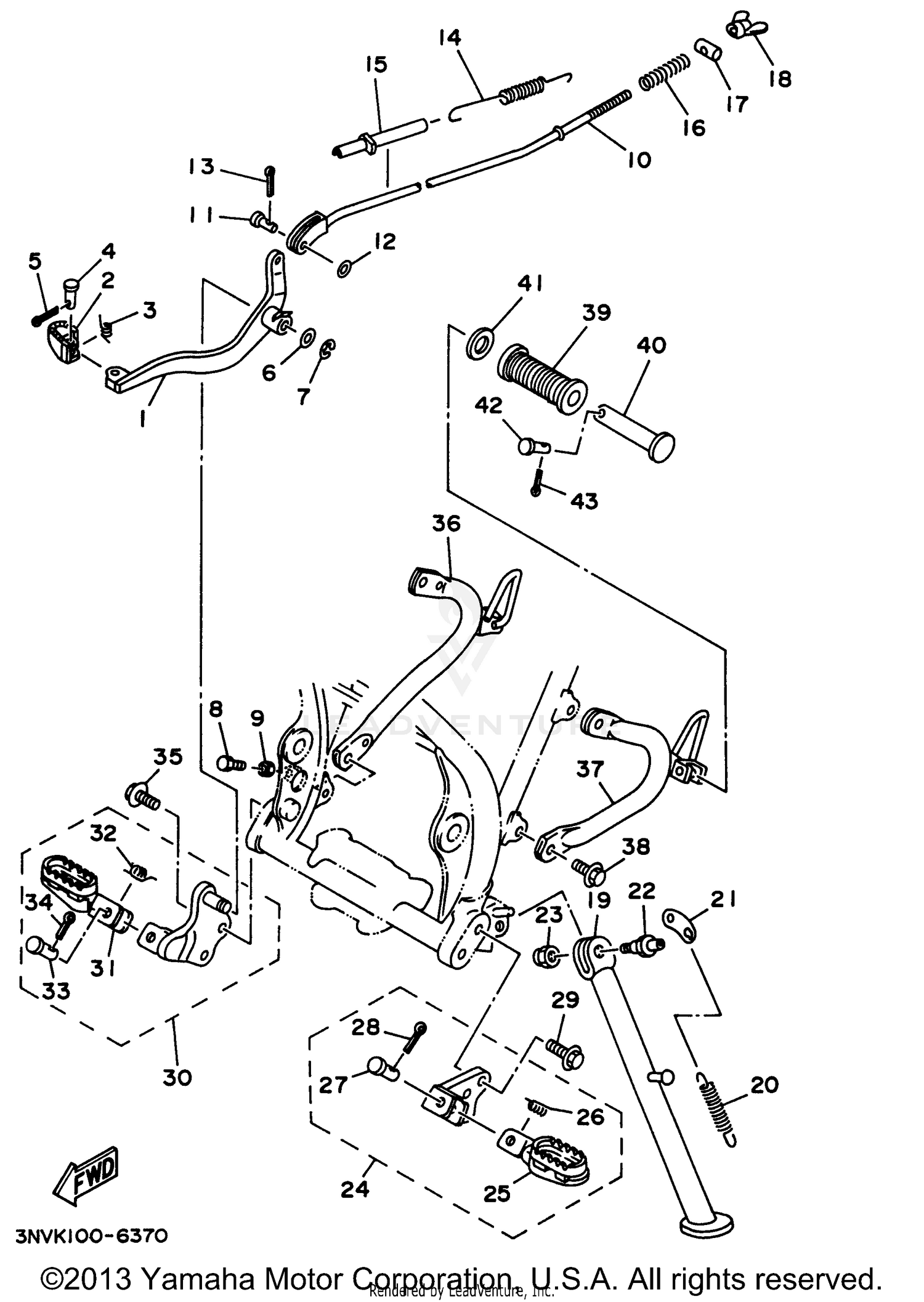

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
55V-27211-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, BRAKE
55V-27242-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-14352-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
91701-06022-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-12541-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93430-09038-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90101-06288-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT
95307-06700-00
Superseded by 95317-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, BRAKE
30X-27231-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#11
PIN, CLEVIS
90240-06103-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
92907-06200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#14
SPRING, TENSION
90506-18289-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER
1M1-27244-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, COMPRESSION
90501-10245-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-06411-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAND, SIDE
55V-27311-01-00
Superseded by 55V-27311-02-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING,TENSION
90506-29276-00
Superseded by 4KN-27116-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
LINK, SIDE STAND
42U-27315-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-10635-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-10037-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
FRONT FOOTREST ASSEMBLY (LEFT)
30X-27410-00-90
|
$61.99 | ||
|
Unavailable |
|||
|
#25
FOOTREST 1
22W-27411-01-90
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, TORSION
90508-20023-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN
91701-08038-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN. COTTER
91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE
95817-08020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
FRONT FOOTREST ASSEMBLY (RIGHT)
55V-27420-00-90
|
$65.99 | ||
|
Unavailable |
|||
|
#31
FOOTREST 2 (3R1-27421-00)
22W-27421-01-90
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING, TORSION
90508-20023-00
|
$4.25 | ||
|
Unavailable |
|||
|
#33
PIN
91701-08038-00
|
$4.45 | ||
|
Unavailable |
|||
|
#34
PIN. COTTER
91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
95817-08020-00
|
$10.49 | ||
|
Unavailable |
|||
|
#36
BRACKET 2
55V-27442-00-33
Superseded by 55V-27442-10-00
|
$41.99 | ||
|
Unavailable |
|||
|
#37
BRACKET 1
26F-27432-00-33
Superseded by 26F-27432-10-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, BUTTON HEAD
92017-08016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER, REAR FOOTREST
120-27433-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST, REAR 1
2GV-27431-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, PLATE
90201-20279-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIN
90240-06009-00
Superseded by 91701-06032-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN, COTTER
91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
