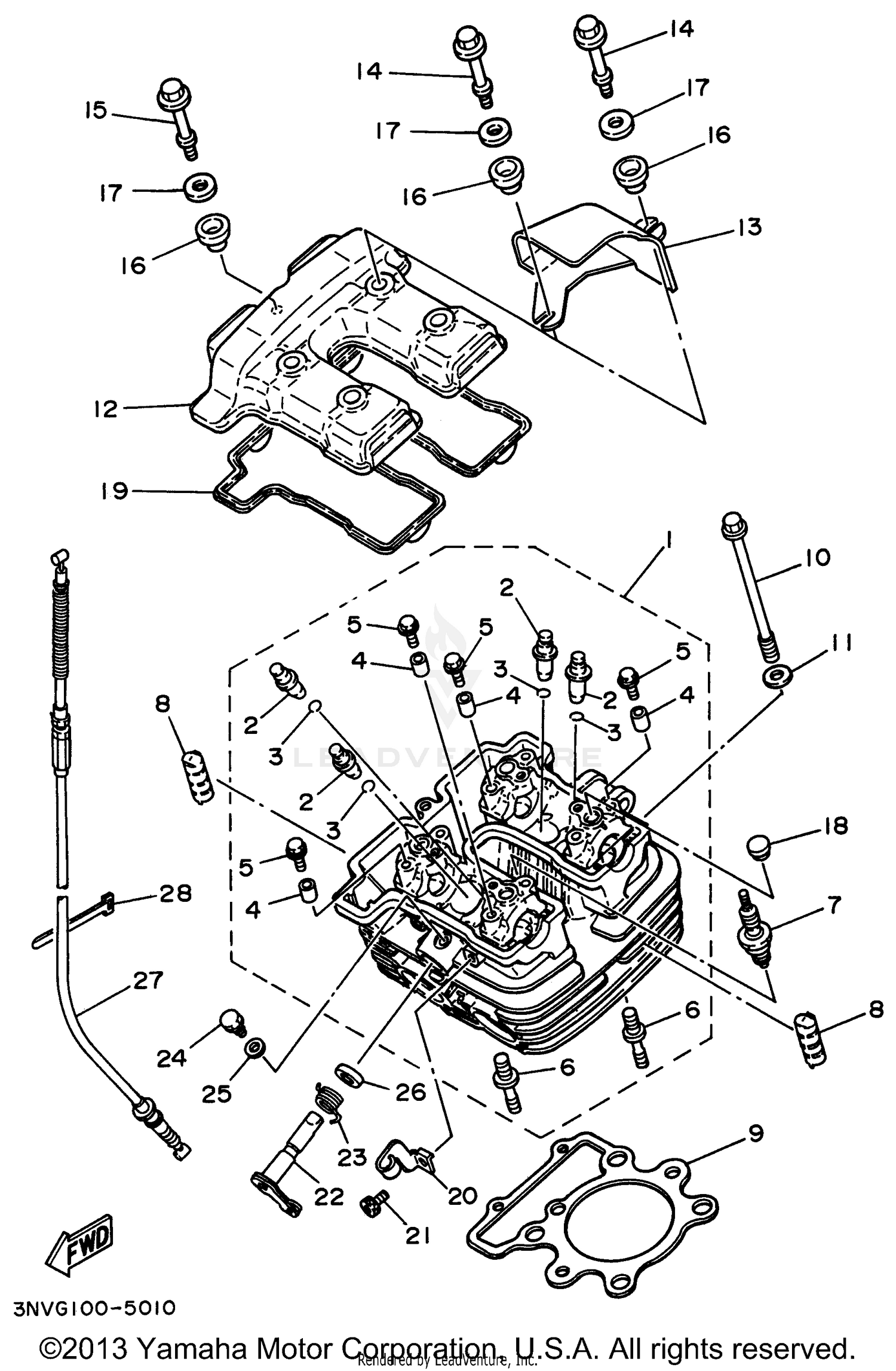

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
55V-11101-01-00
Superseded by 55V-11101-02-00
|
$704.99 | ||
|
Unavailable |
|||
|
#2
GUIDE KIT, INTAKE
99999-02242-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-10109-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-06153-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STUD
90116-10378-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
D8EA NGK SPLUG 10P
NGK-D8EA0-00-00
Superseded by D8E-A0000-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#
ND X24ES-U XJ550RH
94701-00181-00
|
|||
|
Unavailable |
|||
|
#8
ABSORBER 1
30X-11161-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, CYLINDER HEAD 1
55V-11181-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-10608-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-102G9-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, CYLINDER HEAD 1
30X-11191-01-00
|
$132.99 | ||
|
Unavailable |
|||
|
#13
COVER, CYLINDER HEAD 2
30X-11192-01-00
|
$42.99 | ||
|
Unavailable |
|||
|
#14
BOLT
90109-064F0-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90109-06584-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
RUBBER, MOUNT 1
2GH-1111G-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
90209-11262-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG
90338-11125-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, HEAD COVER 1
30X-11193-00-00
Superseded by 30X-11193-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, DECOMPRESSION
30X-12283-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAM, DECOMPRESSION
30X-12288-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#23
SPRING, TORSION
90508-18606-00
|
$4.50 | ||
|
Unavailable |
|||
|
#24
BOLT
90109-06778-00
Superseded by 90109-06418-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
OIL SEAL (SD 12-22-5 HS)
93102-12321-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CABLE, DECOMPRESSION
30X-12292-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND, SWITCH CORD
437-83936-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
