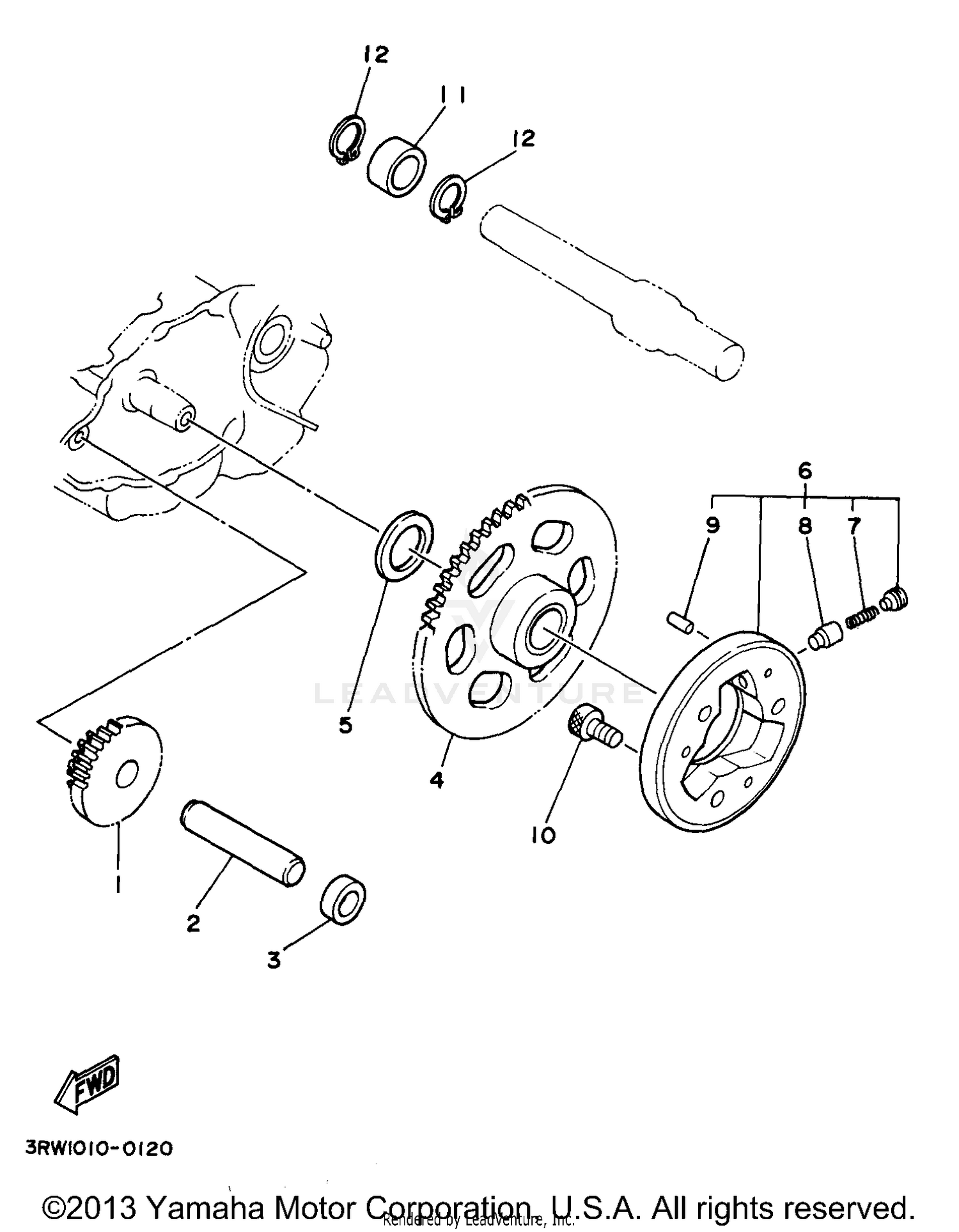

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IDLER 1 (41T/10T)
2HT-15512-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT 1
5H0-15521-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-125Y0-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, IDLER 2 (56T)
5H0-15517-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE (0.9T)
90201-256K6-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
STARTER CLUTCH OUTER ASSY
4H7-15580-10-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-04596-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, STARTER CLUTCH SPRING
1J7-15583-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
93615-12088-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
91317-08016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPACER
90560-17368-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
99009-17400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
