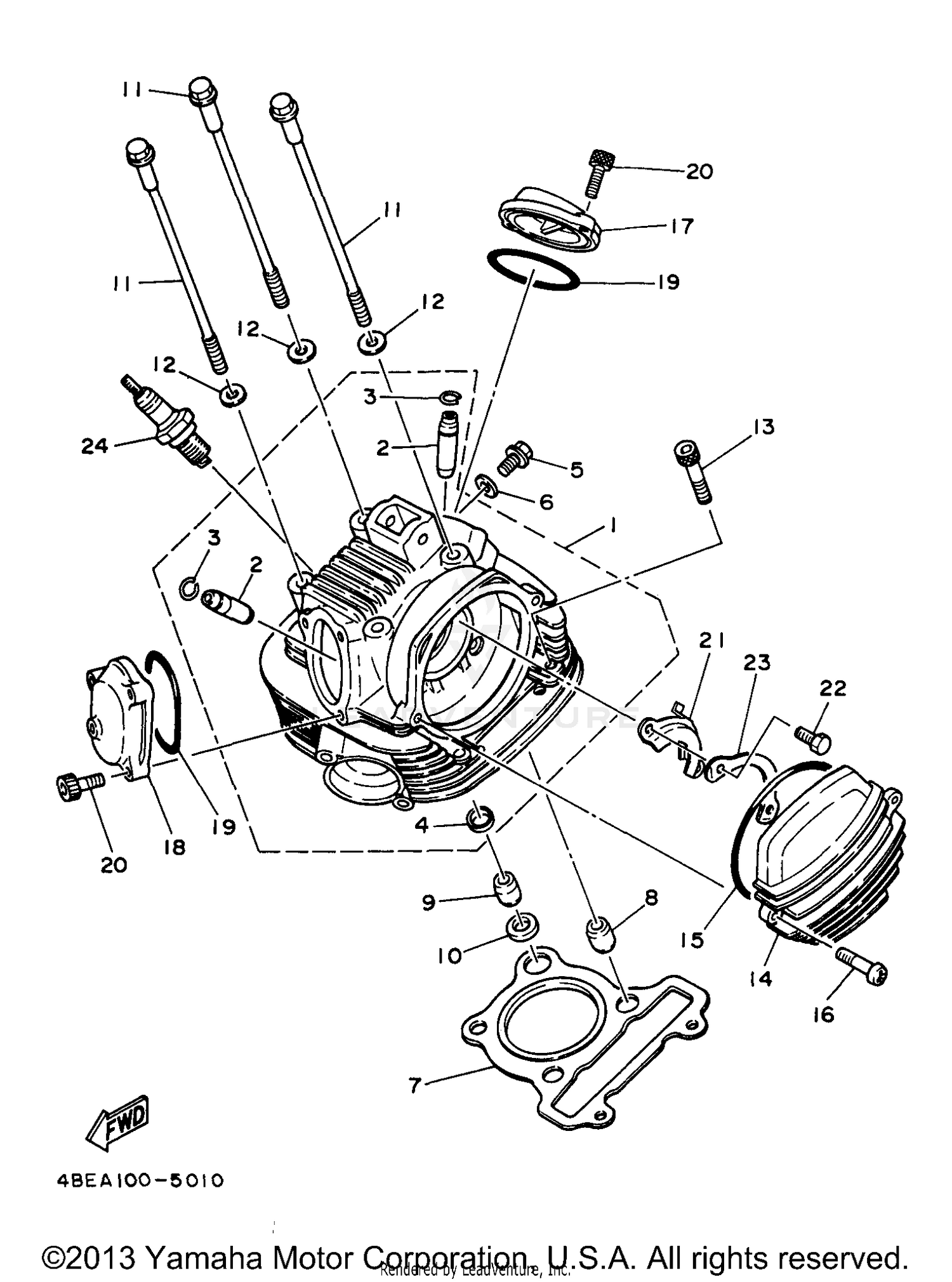

1997 Yamaha XT 225 CYLINDER HEAD OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
3RW-11101-02-00
Superseded by 3RW-11101-04-00
|
$713.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
5H0-11133-11-00
|
$51.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CIRCLIP
93440-10085-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
COLLAR
90385-12039-00
|
$7.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SCREW, HEXAGON
90153-06029-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GASKET
90430-06014-00
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
GASKET, CYLINDER HEAD 1
59V-11181-00-00
|
$32.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PIN, DOWEL
99530-14016-00
|
$2.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
PIN, DOWEL
91810-08016-00
Superseded by 93612-16254-00
|
$4.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
GASKET
90430-12186-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-08195-00
Superseded by 90105-08160-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-080L7-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT
91317-08045-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
COVER, CYLINDER HEAD SIDE 1
3RW-11185-00-00
|
$31.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
O-RING
93211-05471-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW,PAN HEAD
98517-06020-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COVER, CYLINDER HEAD SIDE 2
3RW-11186-00-00
|
$31.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
COVER, CYLINDER HEAD SIDE 3
3RW-11187-00-00
|
$20.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
O-RING
93210-57634-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT
91317-06018-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
PLATE
5H0-1111F-00-00
|
$20.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$3.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
WASHER, LOCK
90215-06184-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
PLUG, SPARK (NGK DR8EA)
NGK-DR8EA-00-00
Superseded by DR8-EA000-00-00
|
$2.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
