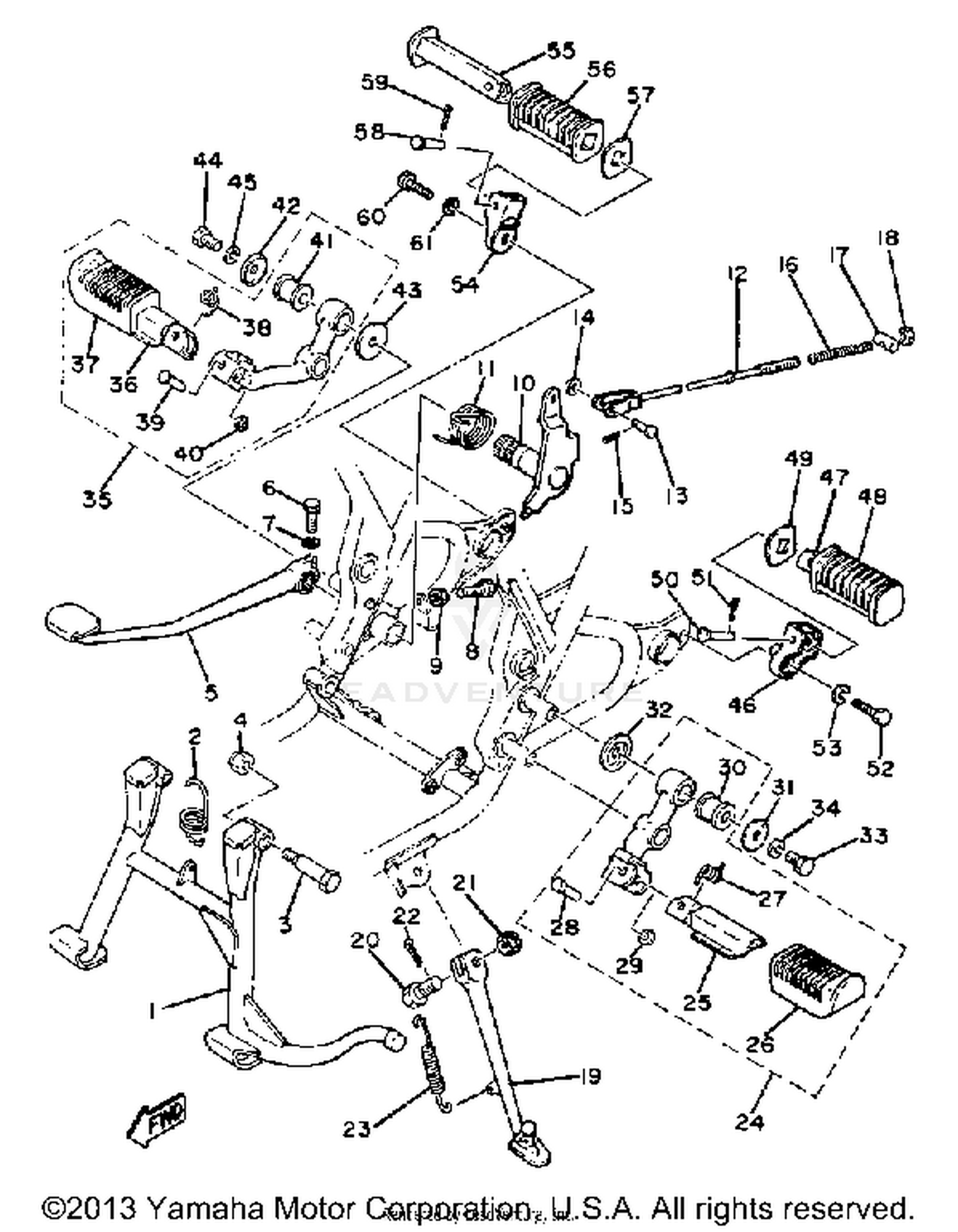

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
3F9-27111-01-33
|
$89.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90506-45063-00
|
$6.99 | ||
|
Unavailable |
|||
|
#3
BOLT
90109-10440-00
|
$8.99 | ||
|
Unavailable |
|||
|
#4
NUT, U
95601-10100-00
Superseded by 95617-10100-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PEDAL, BRAKE
1L9-27211-00-93
|
$62.99 | ||
|
Unavailable |
|||
|
#6
BOLT
90109-06468-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, HEXAGON
90153-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90170-06184-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SHAFT, BRAKE PEDAL
3F9-27212-00-00
|
$16.10 | ||
|
Unavailable |
|||
|
#11
SPRING, TORSION
90508-35315-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
ROD, BRAKE
3F9-27231-00-00
|
$10.54 | ||
|
Unavailable |
|||
|
#13
PIN, CLEVIS
90240-06006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPRING, COMPRESSION
90501-10245-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-06411-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAND, MAIN
1L9-27311-02-33
|
$68.99 | ||
|
Unavailable |
|||
|
#20
BOLT
90102-10006-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, CASTLE
90171-10012-00
Superseded by 90171-10049-00
|
$2.90 | ||
|
Unavailable |
|||
|
#22
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SPRING, TENSION
90506-26270-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
FRT FOOTREST ASSEMBLY L
4R4-27410-00-93
|
$59.99 | ||
|
Unavailable |
|||
|
#25
FOOTREST
3CK-27451-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, FOOTREST
4L0-27423-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, TORSION
90508-20023-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN
90243-08006-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-06042-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
GROMMET
90480-20195-00
Superseded by 90480-20543-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPEC''L SHAP (90209-080
90209-08193-00
Superseded by 90209-08150-00
|
$2.85 | ||
|
Unavailable |
|||
|
#32
WASHER, PLATE
90209-12157-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
FRT FOOTREST ASSEMBLY R
4R4-27420-00-33
|
$56.99 | ||
|
Unavailable |
|||
|
#36
FOOTREST
3N6-27461-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#37
COVER, FOOTREST
4L0-27423-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#38
SPRING, TORSION
90508-20023-00
|
$4.25 | ||
|
Unavailable |
|||
|
#39
PIN
90243-08006-00
|
$13.49 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
90201-06042-00
|
$10.49 | ||
|
Unavailable |
|||
|
#41
GROMMET
90480-20195-00
Superseded by 90480-20543-00
|
$9.49 | ||
|
Unavailable |
|||
|
#42
WASHER, SPEC''L SHAP (90209-080
90209-08193-00
Superseded by 90209-08150-00
|
$2.85 | ||
|
Unavailable |
|||
|
#43
WASHER, PLATE
90209-12157-00
|
$9.49 | ||
|
Unavailable |
|||
|
#44
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$1.55 | ||
|
Unavailable |
|||
|
#45
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Unavailable |
|||
|
#46
BRACKET 1
2L0-27432-01-00
|
$35.99 | ||
|
Unavailable |
|||
|
#47
FOOTREST, REAR 1
447-27431-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
COVER, RR FOOTREST
447-27433-00-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
WASHER, SPEC'L SHAPE
90209-18070-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#50
PIN, WITH HOLE
90240-06042-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#51
PIN, COTTER
91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT
97026-10020-00
Superseded by 97017-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
WASHER, SPRING
92906-10100-00
Superseded by 92907-10100-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
BRACKET
2L0-27442-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#55
FOOTREST, REAR 2
447-27441-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
COVER, RR FOOTREST
447-27433-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#57
WASHER, SPEC'L SHAPE
90209-18070-00
|
$3.05 | ||
|
Unavailable |
|||
|
#58
PIN, WITH HOLE
90240-06042-00
|
$4.20 | ||
|
Unavailable |
|||
|
#59
PIN, COTTER
91490-16020-00
|
$6.70 | ||
|
Unavailable |
|||
|
#60
BOLT
97026-10020-00
Superseded by 97017-10020-00
|
$9.49 | ||
|
Unavailable |
|||
|
#61
WASHER, SPRING
92906-10100-00
Superseded by 92907-10100-00
|
$9.49 | ||
|
Unavailable |
|||
