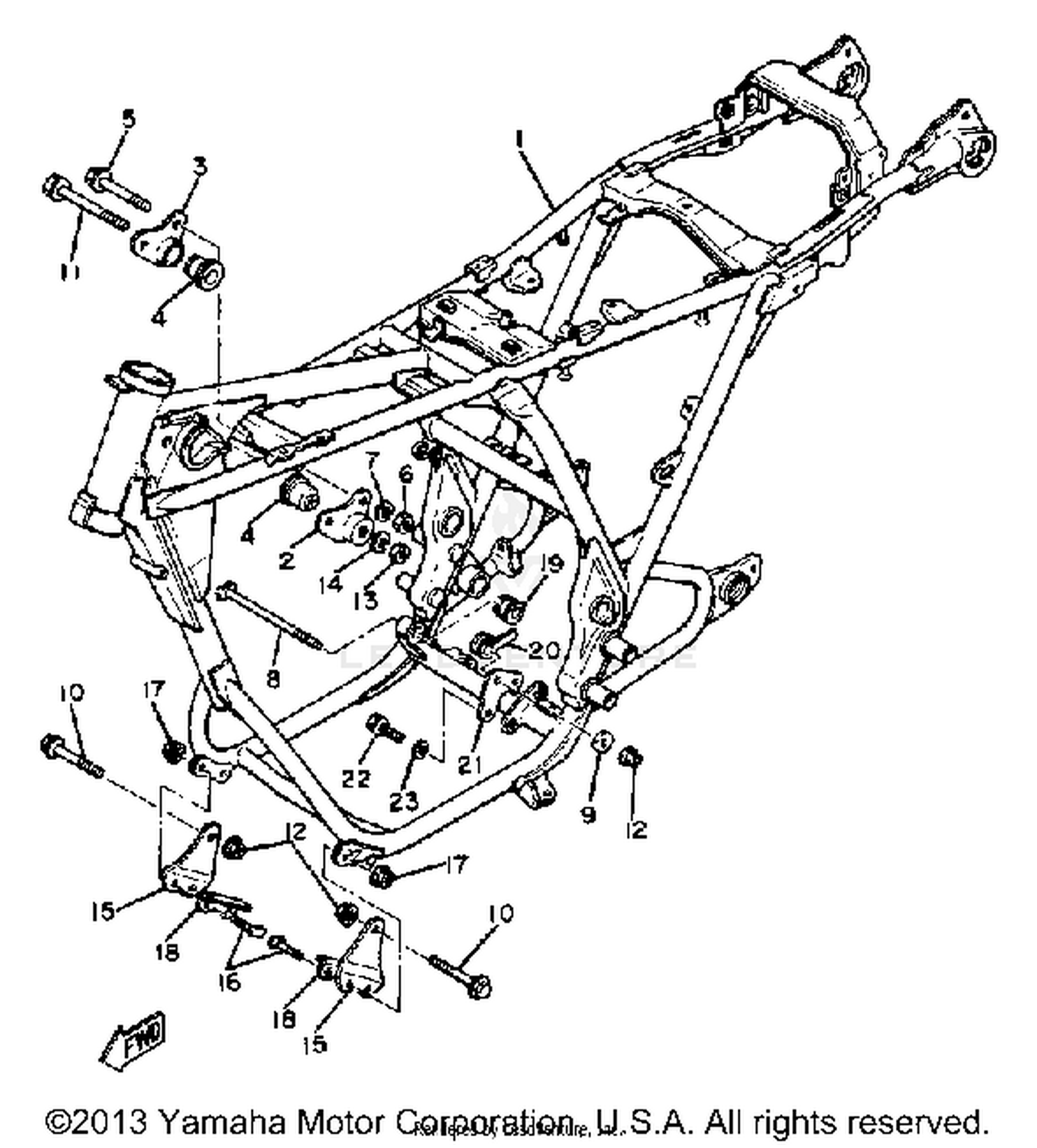

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
4R4-21110-00-98
|
$302.99 | ||
|
Unavailable |
|||
|
#2
STAY, ENGINE 3
1L9-21316-01-00
|
$14.49 | ||
|
Unavailable |
|||
|
#3
STAY, ENGINE 4
1L9-21317-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#4
DAMPER, ENG MOUNT 1
1A1-15316-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
95811-08070-00
Superseded by 95817-08070-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95333-08600-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, ENG MNTNG 2
4R4-21482-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
90201-10131-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WASHER BASED
90105-10188-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WASHER BASED
90105-08120-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95333-08600-00
|
$3.80 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Unavailable |
|||
|
#15
STAY, ENGINE 3
4R4-21316-00-00
|
$19.98 | ||
|
Unavailable |
|||
|
#16
BOLT, ENG MNTNG 1
4R4-21481-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#17
NUT, SELF-LOCKING
90185-08089-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, LOCK
4R4-21491-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#19
DAMPER, RUBBER 1
4R4-21485-00-00
|
$11.86 | ||
|
Unavailable |
|||
|
#20
DAMPER 2
4R4-21486-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#21
STAY, ENGINE 6
4R4-21319-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#22
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Unavailable |
|||
